CE SC APC UPC X Pon Onu 4GE 802.11B / G / N / AC 1200M WIFI Router

Basic Information
Place of Origin: CHINA
Brand Name: ZISA
Certification: CE
Model Number: OP154W-AC
Minimum Order Quantity: 1
Price: 42-46USD
Packaging Details: box 0.5kg
Delivery Time: 5-8weeks
Payment Terms: T/T
Supply Ability: 10000PCS
Detail Information
Name: Fiber ONT 4GE+11AC WIFI Warranty: 10 Months
Type: ONU Power Supply: 12V 1A
Certification: CE Weight: 0.2kg
High Light:

sc upc x pon onu


802.11ac x pon onu


802.11b xpon ont

Product Description

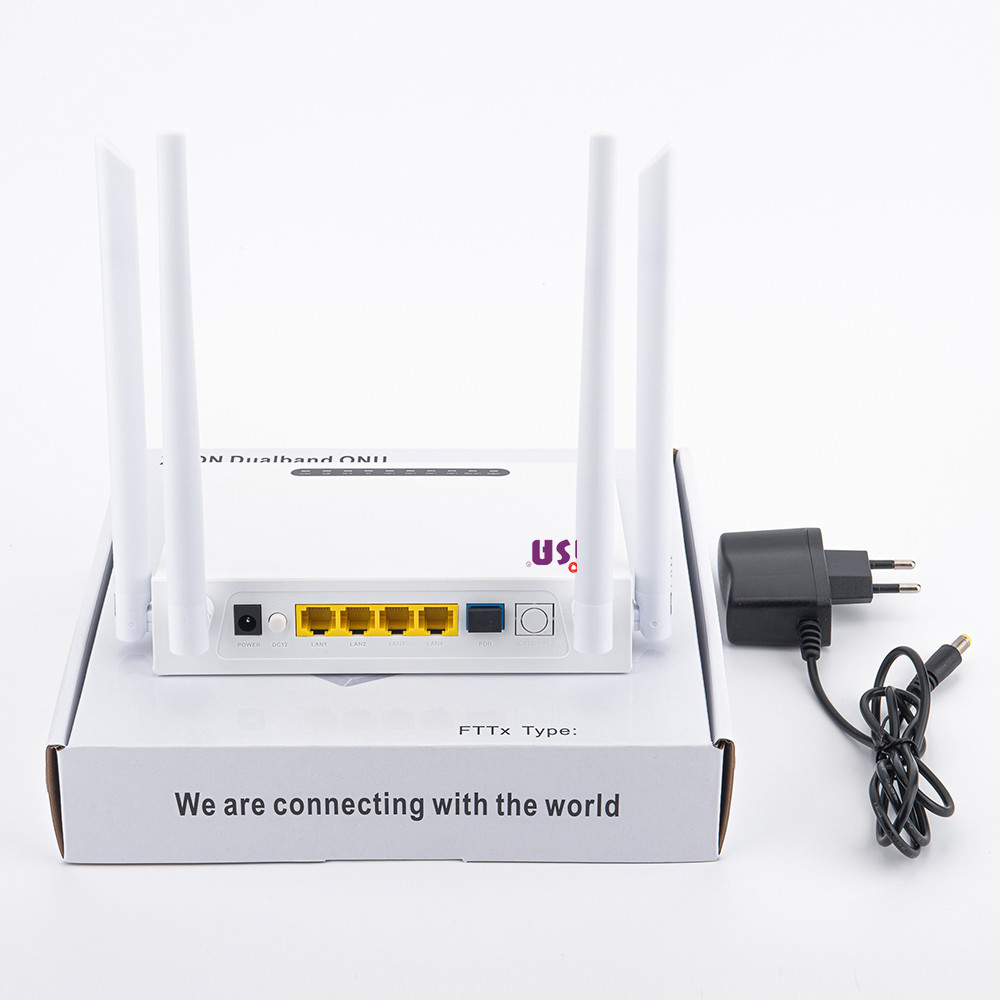

SC APC UPC 4GE 802.11B/G/N/AC 1200M WIFI XPON ONT Router


Product Overview


  • 4GE WIFI is designed as HGU (Home Gateway Unit) in different FTTH solutions. The carrier-class FTTH application provides data and video service access.
  • 4GE WIFI is based on mature and stable, cost-effective XPON technology. It could switch automatically into EPON mode or GPON mode when access to the EPON OLT and GPON OLT.



  • Supports GPON and EPON auto detection
  • Support Rogue ONT detection
  • Support Route mode PPPoE/DHCP/Static IP and Bridge mixed mode
  • Support NAT, Firewall function.
  • Support Internet, IPTV services automatically bound to ONT ports
  • Support Virtual server, DMZ, and DDNS, UPnP

Product Specifications


Technical Item Details
PON interface

1 G/EPON port(EPON PX20+ and GPON Class B+)

Upstream: 1310nm; Downstream: 1490nm

SC/UPC connector

Receiving sensitivity: ≤-28dBm

Transmitting optical power: 0~+4dBm

Transmission distance: 20KM

LAN interface

4 x 10/100/1000Mbps auto adaptive Ethernetinterfaces

Full/Half, RJ45 connector

WIFI Interface

Compliant with IEEE802.11b/g/n/ac

2.4GHz Operating frequency: 2.400-2.483GHz

5.0GHz Operating frequency: 5.150-5.825GHz

Support 2*2MIMO, 5dBi external antenna, rate up to 867Gbps

Support: multiple SSID

TX power: 11n--22dBm/11ac--24dBm





CE SC APC UPC X Pon Onu 4GE  802.11B / G / N / AC 1200M WIFI Router 0





Q1. ZISA product the quality of products.
A: As the top class total solution provider and productive service provider, we provide high quality of service to Tier1 Telco customer and Vendors. With the genius design and software customization expertise, we can leverage the best service to our customers. ZISA Product quality is same as Huawei and ZTE, and ZISA has complete product line.

Flexible , Smart and selective producing system, the top manufacture in vertical career choose our team, with decade of global market and professional experience.


Q2. ZISA after-sales service.
A:ZISA has complete software and hardware research and development. Provide reqiurment development, bug modify and 24h on-line support. For significant customers, ZISA can send technician to support.

Q3. Ways of cooperation with ZISA.
A :ZISA welcome integrator or agent to agent ZISA product. If agent has enough advantages in the market, ZISA appoint you ZISA sole agent.

Q4. About factory visit.
A :ZISA welcome significant customers to visit ZISA factory. Please make an appointment in two weeks.

Q5. About product pricing.
A :ZISA only publish sample price. The price of different agent and OEM customer is secret. ZISA gives specific price for significant projects and customers. Besides, ZISA only provide goods to agent in agent area.
