|Name:||1GE+1FE+WIFI+CATV+1POTs Xpon ONU||OEM:||Yes|
|Warranty:||1 YEAR||Power Supply:||12V 1A|
802.11n GEPON ONU,
GEPON ONU 1GE 1FE,
wifi gepon onu CATV 1POTs

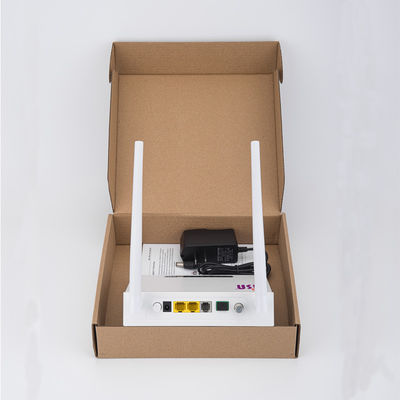

1GE+1FE+WIFI+CATV+1POTs XPON GEPON ONU With OP153W-RF White ONU
1 G/EPON port(EPON PX20+ and GPON Class B+)
Upstream: 1310nm; Downstream: 1490nm
Receiving sensitivity: ≤-27dBm
Transmitting optical power: 0~+4dBm
Transmission distance: 20KM
|LAN interface||1x10/100/1000Mbps and 1x10/100Mbps auto adaptive Ethernet interfaces. Full/Half, RJ45 connector|
Compliant with IEEE802.11b/g/n
Operating frequency: 2.400-2.4835GHz
support MIMO, rate up to 300Mbps
2T2R,2 external antenna 5dBi
Support: Multiple SSID
Modulation type: DSSS,CCK and OFDM
Encoding scheme: BPSK,QPSK,16QAM and 64QAM
RF, optical power : +2~-18dBm
Optical reflection loss: ≥45dB
Optical receiving wavelength: 1550±10nm
RF frequency range: 47~1000MHz, RF output impedance: 75Ω
RF output level: ≥ 82dBuV(-7dBm optical input)
AGC range: +2~-7dBm/-4~-13dBm/-5~-14dBm
MER: ≥32dB(-14dBm optical input), ＞35(-10dBm)
Max 1km distance
Balanced Ring, 50V RMS
|LED||10 LED, For Status of WIFI,WPS,PWR,LOS,PON,LAN1~LAN2, WORN,NORMAL(CATV), FXS|
|Push-Button||4, for Function of Power on/off, Reset, WPS, WIFI|
Temperature : 0℃～+50℃
Temperature : -40℃～+60℃
|Power supply||DC 12V/1A|
Q1. ZISA product the quality of products.
A: As the top class total solution provider and productive service provider, we provide high quality of service to Tier1 Telco customer and Vendors. With the genius design and software customization expertise, we can leverage the best service to our customers. ZISA Product quality is same as Huawei and ZTE, and ZISA has complete product line.
Flexible , Smart and selective producing system, the top manufacture in vertical career choose our team, with decade of global market and professional experience.
Q2. ZISA after-sales service.
A:ZISA has complete software and hardware research and development. Provide reqiurment development, bug modify and 24h on-line support. For significant customers, ZISA can send technician to support.
Q3. Ways of cooperation with ZISA.
A :ZISA welcome integrator or agent to agent ZISA product. If agent has enough advantages in the market, ZISA appoint you ZISA sole agent.
Q4. About factory visit.
A :ZISA welcome significant customers to visit ZISA factory. Please make an appointment in two weeks.
Q5. About product pricing.
A :ZISA only publish sample price. The price of different agent and OEM customer is secret. ZISA gives specific price for significant projects and customers. Besides, ZISA only provide goods to agent in agent area.
