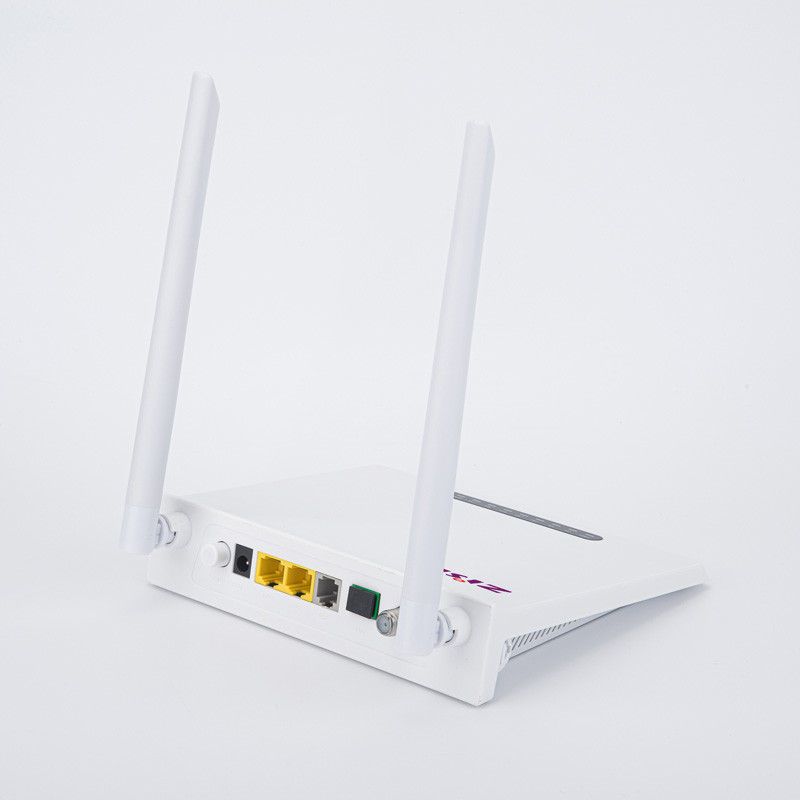

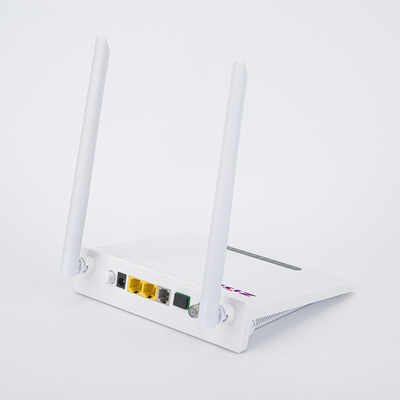

High Rate 1GE 1FE WIFI CATV 1POTs GEPON XPON Onu Fiber Modem

Basic Information
Place of Origin: CHINA
Brand Name: ZISA
Certification: CE
Model Number: OP153W-RF
Minimum Order Quantity: 1
Price: 42-46USD
Packaging Details: box 0.5kg
Delivery Time: 5-8weeks
Payment Terms: T/T
Supply Ability: 10000PCS
Detail Information
Name: Gpon ONU 1GE+1FE+WIFI+CATV+1POTs Management: Web
Connector: Pon Port Type: ONU
Warranty: 1 YEAR Power Supply: 12V 1A
Certification: CE Weight: 0.2kg
High Light:

1POTs onu catv gpon


1GE 1FE onu fiber modem


XPON onu fiber modem

Product Description

High Rate 1GE+1FE+WIFI+CATV+1POTs Xpon Port Xpon Gepon Optic Onu



  •  Typical Solution:FTTO(Office), FTTB(Building),FTTH(Home)
  •  Typical Service:Broadband Internet access, IPTV, VOD, video surveillance, CATV, VoIP etc.


Panel lights and Introduction


PilotLamp Status Description
WIFI On The WIFI interface is up.
Blink The WIFI interface is sending or/and receiving data (ACT).
Off The WIFI interface is down.
WPS Blink The WIFI interface is securely establishing a connection.
Off The WIFI interface does not establish a secure connection.
PWR On The device is powered up.
Off The device is powered down.
LOS Blink The device doses not receive optical signals or with low signals.
Off The device has received optical signal.
PON On The device has registered to the PON system.
Blink The device is registering the PON system.
Off The device registration is incorrect.
LAN1~LAN2 On Port (LANx) is connected properly (LINK).
Blink Port (LANx) is sending or/and receiving data (ACT).
Off Port (LANx) connection exception or not connected.
FXS On Telephone has registered to the SIP Server.
Blink Telephone has registered and data transmission (ACT).
Off Telephone registration is incorrect.



On Input optical power is higher than 2dBm or lower than -18dBm
Off Input optical power is between -18dBm and 2dBm



On Input optical power is between -18dBm and 2dBm
Off Input optical power is higher than 2dBm or lower than -18dBm



Ordering information


Product Name Product Model Descriptions
1G1F+WIFI+CATV+POTs XPON OP153W-RF 1*10/100/1000M and 1*10/100M Ethernet interface, 1 GPON interface, 1 POTS interface, 1 RF interface, built-in FWDM, support Wi-Fi function, Plastic casing, external power supply adapter




Q1. ZISA product the quality of products.
A: As the top class total solution provider and productive service provider, we provide high quality of service to Tier1 Telco customer and Vendors. With the genius design and software customization expertise, we can leverage the best service to our customers. ZISA Product quality is same as Huawei and ZTE, and ZISA has complete product line.

Flexible , Smart and selective producing system, the top manufacture in vertical career choose our team, with decade of global market and professional experience.


Q2. ZISA after-sales service.
A:ZISA has complete software and hardware research and development. Provide reqiurment development, bug modify and 24h on-line support. For significant customers, ZISA can send technician to support.

Q3. Ways of cooperation with ZISA.
A :ZISA welcome integrator or agent to agent ZISA product. If agent has enough advantages in the market, ZISA appoint you ZISA sole agent.

Q4. About factory visit.
A :ZISA welcome significant customers to visit ZISA factory. Please make an appointment in two weeks.

Q5. About product pricing.
A :ZISA only publish sample price. The price of different agent and OEM customer is secret. ZISA gives specific price for significant projects and customers. Besides, ZISA only provide goods to agent in agent area.
