| Place of Origin: | CHINA |
|---|---|
| Brand Name: | ZISA |
| Certification: | CE |
| Model Number: | OP154W-AC |
| Minimum Order Quantity: | 1 |
| Price: | 32-35USD |
| Packaging Details: | box 0.5kg |
| Delivery Time: | 5-8weeks |
| Payment Terms: | T/T |
| Supply Ability: | 10000PCS |
| Product Name: | ZISA 4GE Xpon ONU Device | Warranty: | 10 Months |
|---|---|---|---|
| Application: | FTTH XPON | Type: | XPON ONU |
| Color: | WHITE | Power Supply: | 12V 1A |
| Certification: | CE | Chipset: | Realtek 9607C |
| High Light: | 4ge xpon onu,11ac xpon onu,fiber optic network x pon onu |
||

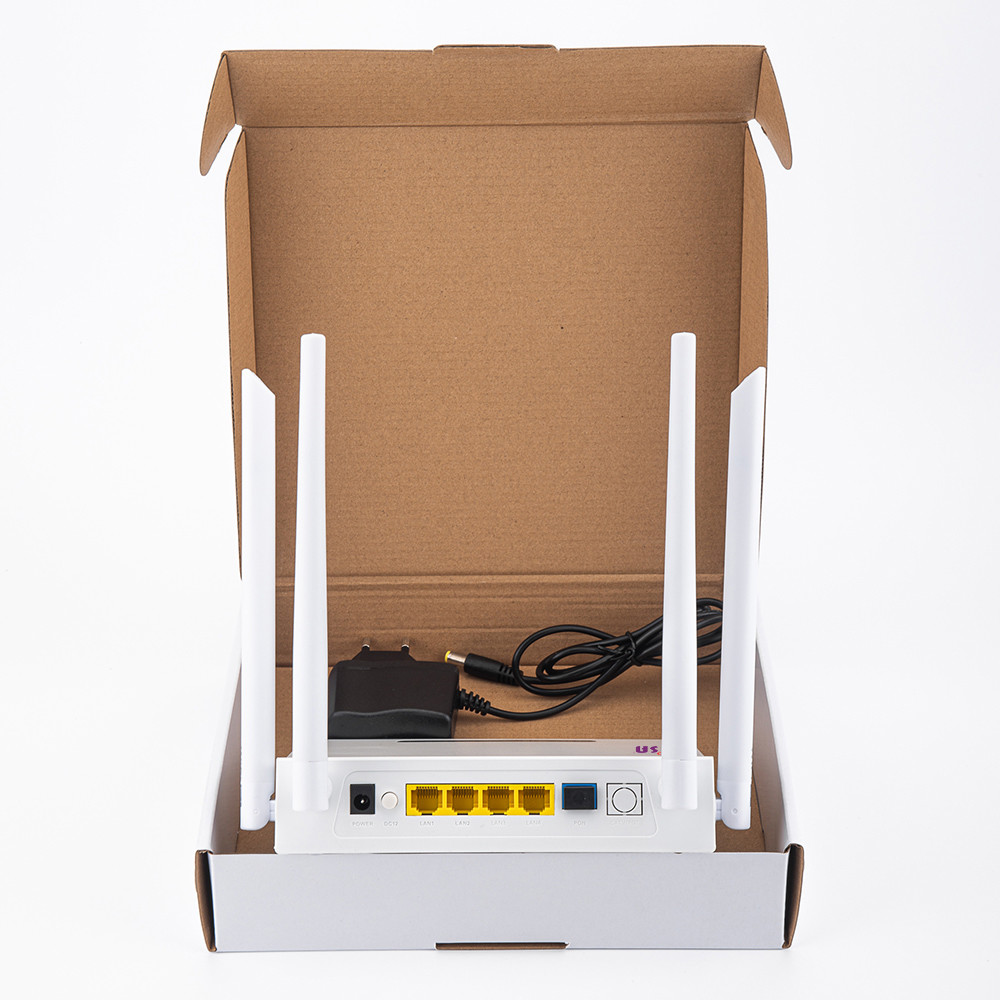

Modem 4ge 11ac wifi Router Splitter XPON ONU Fiber Optic Network Device
Product Overview
Feature
Product Specifications
| Technical Item | Details |
| PON interface |
1 G/EPON port(EPON PX20+ and GPON Class B+) Upstream: 1310nm; Downstream: 1490nm SC/UPC connector Receiving sensitivity: ≤-28dBm Transmitting optical power: 0~+4dBm Transmission distance: 20KM |
| LAN interface |
4 x 10/100/1000Mbps auto adaptive Ethernetinterfaces Full/Half, RJ45 connector |
| WIFI Interface |
Compliant with IEEE802.11b/g/n/ac 2.4GHz Operating frequency: 2.400-2.483GHz 5.0GHz Operating frequency: 5.150-5.825GHz Support 2*2MIMO, 5dBi external antenna, rate up to 867Gbps Support: multiple SSID TX power: 11n--22dBm/11ac--24dBm |
| LED | 9 LED, For Status of PWR,LOS,PON,LAN1,LAN2,LAN3,LAN4,2.4G,5.8G |
| Push-Button | 3 button for Function of Power on/off, Reset, WPS |
| Operating condition |
Temperature : 0℃～+50℃ Humidity :10%～90%(non-condensing) |
| Storing Condition |
Temperature : -40℃～+60℃ Humidity :10%～90%(non-condensing) |
| Power supply | DC 12V/1A |
| Power Consumption | <6W |
| Net Weight | <0.3kg |
Panel lights and Introduction
| PilotLamp | Status | Description |
| 2.4G | On | 2.4G WIFI up |
| Blink | 2.4G WIFI is sending or/and receiving data (ACT). | |
| Off | 2.4G WIFI down | |
| 5.8G | On | 5G WIFI up |
| Blink | 5G WIFI is sending or/and receiving data (ACT). | |
| Off | 5G WIFI down | |
| PWR | On | The device is powered up. |
| Off | The device is powered down. | |
| LOS | Blink | The device doses not receive optical signals or with low signals. |
| Off | The device has received optical signal. | |
| PON | On | The device has registered to the PON system. |
| Blink | The device is registering the PON system. | |
| Off | The device registration is incorrect. | |
| LAN1~LAN4 | On | Port (LANx) is connected properly (LINK). |
| Blink | Port (LANx) is sending or/and receiving data (ACT). | |
| Off | Port (LANx) connection exception or not connected. |
Ordering information
| Product Name | Product Model | Descriptions |
| 4GE 11AC WIFI XPON | OP154W-AC | 4*10/100/1000M RJ45interface, 1 PON interface, support WIFI 5G&2.4G, plastic casing, external power supply adapter |
