| Place of Origin: | CHINA |
|---|---|
| Brand Name: | ZISA |
| Certification: | CE |
| Model Number: | V800VWL-AC |
| Minimum Order Quantity: | 1 |
| Price: | 58-74USD |
| Packaging Details: | box 1kg |
| Delivery Time: | 5-8weeks |
| Payment Terms: | T/T |
| Supply Ability: | 10000PCS |
| Product Name: | VDSL2 Wifi Modem | Port: | 4 LAN+2 RJ11 |
|---|---|---|---|
| Application: | DSLAM TO DSL Modem | Color: | Black |
| Type: | VDSL2 MODEM | Power Supply: | 12V 2A |
| Certification: | CE | Chipset: | BCM63167 |
| High Light: | 5g modem vdsl voip,802.11b modem vdsl voip,802.11a vdsl2 compatible modem |
||

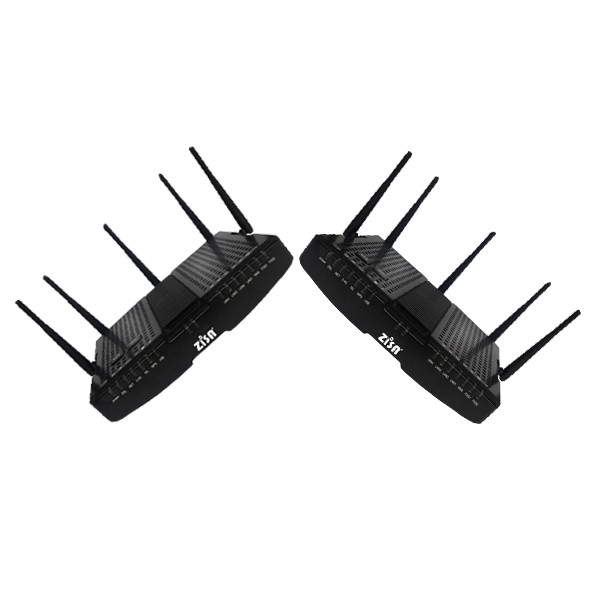

802.11a/b/g/n/ac 2.4G 5G dual band wireless gigabit wifi modem router IAD FXS ports
Features:
Specifications
| SOFTWARE | |
| VoIP Features |
Call Waiting/Forwarding/Transferring/Block/Barring Anonymous Calling /Call Blocking Three Way Conference DND (Do Not Disturb)/CNG (Comfort Noise Generation)/DTMF Detection and Generation/Silence Suppression MWI SIP (RFC 3261)/SDP (RFC 2327)/RTP (RFC 1889)/RTCP (RFC 1890) Codec: G.711, G.723.1, G.726, G.729.A, G.722, G.722.2 Echo Cancellation: G.168 VAD (Voice Activity Detection) Multiple SIP T.38 Fax Relay |
| Function Features |
Static route, Dynamic RIPv1, RIPv2 support DMZ support NAT Application Level Gateway for popular applications DHCP Server/Relay/client DNS Relay Agent/DDNS support PPP Auto Reconnect on WAN Access/PPP IGMP snooping v1/2 and IGMP Multicast |
| Security Support |
64/128-bit WEP/WPA-PSK/WPA2-PSK/TKIP/AES Parental control PAP/CHAP for PPP mode NAT forFirewall SPI Firewall 2 Level (User/Admin) Authentication to Router IP and MAC Filtering |
| Management Support |
Web Based GUI FTP /HTTP/Telnet/TR069 /SNMP v1/2c Command Line Interface Diagnostic Test Firmware upgrade-able Remote Access Control |
| ATM, PTM and PPP Features |
RFC2684 /2364 /2516 /2225/1577 /148/1483/2684 ATM Forum UNI 3.1/4.0, ATM Adaptation Layer Type 5-AAL5 VPI Range (0-255) and VCI range (32-65535) UBR, CBR, VBR-rt, VBR-nrt F4/F5 OAM Loopback AIS and RDI OAM cells Supports 16 PVCs Group binding: Bind LAN port with WAN connection |
| VPN | IPSec/PPTP/L2TPpassthrough |
| Port Forwarding | Virtual server, Port Triggering, DMZ, ALG, UPnP |
| Dynamic DNS | DynDns, TZO |
| DHCP | Server, Client, DHCP Client List Address Reservation, DHCP relay |
| QOS |
Priority Queuing Classification Rules 802.1p |
| HARDWARE | |
| Physical Interface |
4 10/100/1000 RJ45 Ports for LAN 1 10/100/1000Mbps Port for WAN or LAN 1 DSL RJ11 port 1USB 2.0 Port 2FXS ports |
| Buttons |
1 Power ON/OFF Button 1 WiFi Button 1 WPS Button 1 Reset Button |
| Power |
Input: 100-240V AC,50Hz; Output: 12V/2A |
| LED Indicators | Power, DSL, Internet, 2.4G, 5G, WPS, USB, WAN, LAN1/2/3/4, VoIP1/2 |
| USB Sharing | Samba(Storage)/FTP Server/Media Server/Printer Server |
| Antenna | 5 external antennas(2 for 2.4Ghz, 3 for 5Ghz) MIMO3dBi (default) |
| Processor | BCM63167+BCM43602+BCM6303+BCM53125+LE9642 |
| Memory | 16MB flash and 256MB RAM |
FAQ
Q1. ZISA product the quality of products.
A: As the top class total solution provider and productive service provider, we provide high quality of service to Tier1 Telco customer and Vendors. With the genius design and software customization expertise, we can leverage the best service to our customers. ZISA Product quality is same as Huawei and ZTE, and ZISA has complete product line.
Flexible , Smart and selective producing system, the top manufacture in vertical career choose our team, with decade of global market and professional experience.
Q2. ZISA after-sales service.
A:ZISA has complete software and hardware research and development. Provide reqiurment development, bug modify and 24h on-line support. For significant customers, ZISA can send technician to support.
Q3. Ways of cooperation with ZISA.
A :ZISA welcome integrator or agent to agent ZISA product. If agent has enough advantages in the market, ZISA appoint you ZISA sole agent.
Q4. About factory visit.
A :ZISA welcome significant customers to visit ZISA factory. Please make an appointment in two weeks.
Q5. About product pricing.
A :ZISA only publish sample price. The price of different agent and OEM customer is secret. ZISA gives specific price for significant projects and customers. Besides, ZISA only provide goods to agent in agent area.
