4LAN VDSL2 VOIP Modem Router Black 11AC 1600Mbps 4 Ethernet

Basic Information
Place of Origin: CHINA
Brand Name: ZISA
Certification: CE
Model Number: V800VWL-AC
Minimum Order Quantity: 1
Price: 58-76USD
Packaging Details: box 1kg
Delivery Time: 5-8weeks
Payment Terms: T/T
Supply Ability: 10000PCS
Detail Information
Product Name: VDSL2 WIFI Router Port: 1*DSL
WIFI: 802.11AC Color: Black
Type: VDSL2 MODEM Power Supply: 12V 2A
Certification: CE Chipset: BCM63167
High Light:

4LAN vdsl2 voip modem router

,

vdsl2 voip modem router 1DSL

,

voip vdsl modem router 4 Ethernet


Product Description

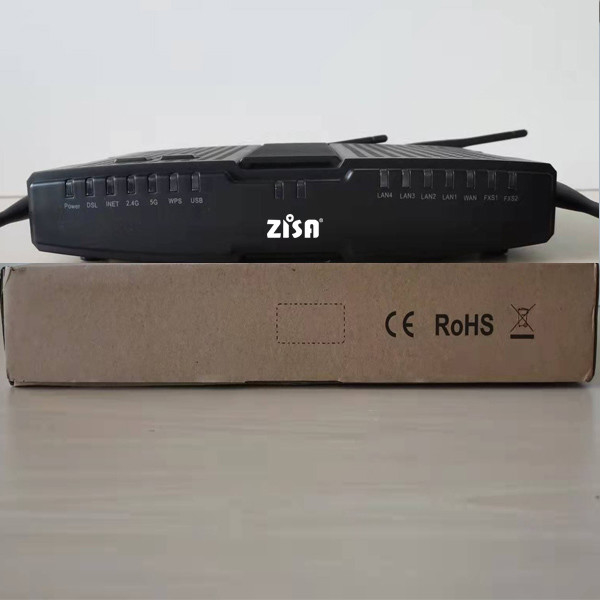

ZISA Wireless 4 lan port VDSL2 Router V800VWL-AC VOIP 11AC 4* Ethernet



Description



The V800VWL-AC provides one xDSL 17a interface, four GE LAN, one GE WAN, two FXS VoIP PORTS,one USB host 2.0 interface and 2.4G and 5G internal WIFI antennas. The Ethernet and WIFI are used for connecting to computers, through which you can access the Internet. The WIFI interface support 802.11ac 2.4GHz and 5G band. It is an ideal broadband CPE solution for both home users who wish to share high-speed Internet access and small offices that wish to do business on the Intern



Features:



  •  VDSL2 fall back: Falling back to ADSL2/2+ automatically
  •  High Speed: Downstream rates up to 100Mbps and upstream rates up to 50Mbps
  •  11AC1600Mbps Wi-Fi:5 external antennas to deliver the best wireless signal, connect everything in your home and office in one device
  •  VoIP function: 2 FXS ports helps users save phone bills by making phone calls over the Internet, with easier VoIP telephony management -- caller ID,
  •  call waiting/holding/forwarding, 3-way conference calls and voice mail, free communications by easily dialing an extension number



Specifications





  SOFTWARE
VoIP Features

Call Waiting/Forwarding/Transferring/Block/Barring

Anonymous Calling /Call Blocking

Three Way Conference

DND (Do Not Disturb)/CNG (Comfort Noise Generation)/DTMF Detection and Generation/Silence Suppression

MWI

SIP (RFC 3261)/SDP (RFC 2327)/RTP (RFC 1889)/RTCP (RFC 1890)

Codec: G.711, G.723.1, G.726, G.729.A, G.722, G.722.2

Echo Cancellation: G.168

VAD (Voice Activity Detection)

Multiple SIP

T.38 Fax Relay

Function Features

Static route, Dynamic RIPv1, RIPv2 support

DMZ support

NAT Application Level Gateway for popular applications

DHCP Server/Relay/client

DNS Relay Agent/DDNS support

PPP Auto Reconnect on WAN Access/PPP

IGMP snooping v1/2 and IGMP Multicast

Security Support

64/128-bit WEP/WPA-PSK/WPA2-PSK/TKIP/AES

Parental control

PAP/CHAP for PPP mode

NAT forFirewall

SPI Firewall

2 Level (User/Admin) Authentication to Router

IP and MAC Filtering

Management Support

Web Based GUI

FTP /HTTP/Telnet/TR069 /SNMP v1/2c

Command Line Interface

Diagnostic Test

Firmware upgrade-able

Remote Access Control

ATM, PTM and PPP Features

RFC2684 /2364 /2516 /2225/1577 /148/1483/2684

ATM Forum UNI 3.1/4.0, ATM Adaptation Layer Type 5-AAL5

VPI Range (0-255) and VCI range (32-65535)

UBR, CBR, VBR-rt, VBR-nrt

F4/F5 OAM Loopback

AIS and RDI OAM cells

Supports 16 PVCs

Group binding: Bind LAN port with WAN connection

VPN IPSec/PPTP/L2TPpassthrough
Port Forwarding Virtual server, Port Triggering, DMZ, ALG, UPnP
Dynamic DNS DynDns, TZO
DHCP Server, Client, DHCP Client List
Address Reservation, DHCP relay
QOS

Priority Queuing

Classification Rules

802.1p



FAQ



Q1. ZISA product the quality of products.
A: As the top class total solution provider and productive service provider, we provide high quality of service to Tier1 Telco customer and Vendors. With the genius design and software customization expertise, we can leverage the best service to our customers. ZISA Product quality is same as Huawei and ZTE, and ZISA has complete product line.

Flexible , Smart and selective producing system, the top manufacture in vertical career choose our team, with decade of global market and professional experience.



Q2. ZISA after-sales service.
A:ZISA has complete software and hardware research and development. Provide reqiurment development, bug modify and 24h on-line support. For significant customers, ZISA can send technician to support.

Q3. Ways of cooperation with ZISA.
A :ZISA welcome integrator or agent to agent ZISA product. If agent has enough advantages in the market, ZISA appoint you ZISA sole agent.

Q4. About factory visit.
A :ZISA welcome significant customers to visit ZISA factory. Please make an appointment in two weeks.

Q5. About product pricing.
A :ZISA only publish sample price. The price of different agent and OEM customer is secret. ZISA gives specific price for significant projects and customers. Besides, ZISA only provide goods to agent in agent area.
