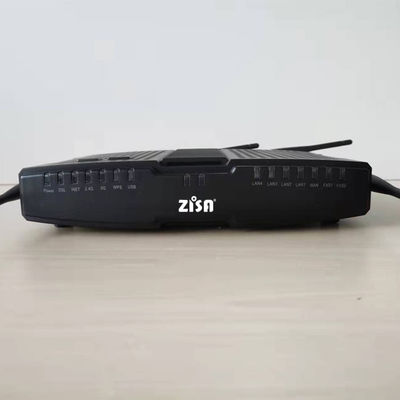

V800VWL-AC VDSL2 MODEM Router VOIP 4 Ports 802.11b/G/N/AC Wireless 1600mbps Wifi

Basic Information
Place of Origin: CHINA
Brand Name: ZISA
Certification: CE
Model Number: V800VWL-AC
Minimum Order Quantity: 1
Price: 58-76USD
Packaging Details: box 1kg
Delivery Time: 5-8weeks
Payment Terms: T/T
Supply Ability: 10000PCS
Detail Information
Product Name: WIFI Router Power Supply: 12V 2A
Color: Black Operating Temperature: 0ºC—40ºC
Storage Temperature: -20ºC—70ºC Type: VDSL2 MODEM
Certification: CE Chipset: BCM63167
High Light:

VDSL2 MODEM router


VDSL2 MODEM router VOIP 4 Ports


VOIP MODEM 4 Ports 802.11b/G/N/AC

Product Description

VDSL2 Router V800VWL-AC VOIP 4 ports 802.11b/g/n/AC wireless 1600mbps wifi




The WIFI interface support 802.11ac 2.4GHz and 5G band. It is an ideal broadband CPE solution for both home users who wish to share high-speed Internet access and small offices that wish to do business on the Internet.It also provides flow statistics, connection status, and other detailed information. The V800WL-AC is easily upgraded and provides terminal users and ISP with the guarantee of future.




Management Support

Web Based GUI

FTP /HTTP/Telnet/TR069 /SNMP v1/2c

Command Line Interface

Diagnostic Test

Firmware upgrade-able

Remote Access Control

ATM, PTM and PPP Features

RFC2684 /2364 /2516 /2225/1577 /148/1483/2684

ATM Forum UNI 3.1/4.0, ATM Adaptation Layer Type 5-AAL5

VPI Range (0-255) and VCI range (32-65535)

UBR, CBR, VBR-rt, VBR-nrt

F4/F5 OAM Loopback

AIS and RDI OAM cells

Supports 16 PVCs

Group binding: Bind LAN port with WAN connection

VPN IPSec/PPTP/L2TPpassthrough
Port Forwarding Virtual server, Port Triggering, DMZ, ALG, UPnP
Dynamic DNS DynDns, TZO
DHCP Server, Client, DHCP Client List
Address Reservation, DHCP relay

Priority Queuing

Classification Rules


Physical Interface

4 10/100/1000 RJ45 Ports for LAN

1 10/100/1000Mbps Port for WAN or LAN

1 DSL RJ11 port

1USB 2.0 Port

2FXS ports


1 Power ON/OFF Button

1 WiFi Button

1 WPS Button

1 Reset Button


Input: 100-240V AC,50Hz;

Output: 12V/2A

LED Indicators Power, DSL, Internet, 2.4G, 5G, WPS, USB, WAN, LAN1/2/3/4, VoIP1/2
USB Sharing Samba(Storage)/FTP Server/Media Server/Printer Server
Antenna 5 external antennas(2 for 2.4Ghz, 3 for 5Ghz) MIMO3dBi (default)
Processor BCM63167+BCM43602+BCM6303+BCM53125+LE9642
Memory 16MB flash and 256MB RAM
Operation System Windows 7,8,XP, VISTA/Macintosh/Linux
Package Content

Power Adapter x 1, InstallationManual x 1,RJ11 Cable x 1

RJ45 Cable x 1, External Splitter x 1


Operating Temperature: 0°C~40°C(32~104℉)

Storage Temperature: -30°C~60°C(-22~140℉)

Operating Humidity: 10%~95% non-condensing

Storage Humidity: 5%~90% non-condensing

Warranty One year
Dimension 9.65*7.17*2.36 in(245*182*60 mm)
Weight 500g


Company Profile:


ZISA Technology Limited was created in 2004, based in Beijing.

We are an innovative ICT company for more than 10 years.

ZISA is committed to providing the professional service and solutions to oversea customers, making continuous innovation to meet the requirements of customers.As a global market company, ZISA Fibre PON equipment, wireless AP solutions and xDSL solutions have been reached over 30 countries and regions.


Our team are full of creative and energetic engineers and workers.The innovative,comprehensive IT technique was grasped by us.Some of them has been worked in famous companies.The factory which cooperate with us is T&W with huge productivity.We also have flexible selling module---ODM&OEM,as agent are all welcome.
