| Place of Origin: | CHINA |
|---|---|
| Brand Name: | ZISA |
| Certification: | CE |
| Model Number: | V800VWL-AC |
| Minimum Order Quantity: | 1 |
| Price: | 58-75USD |
| Packaging Details: | box 1kg |
| Delivery Time: | 5-8weeks |
| Payment Terms: | T/T |
| Supply Ability: | 10000PCS |
| Product Name: | VDSL2 WIFI Modem | Warranty: | 1 YEAR |
|---|---|---|---|
| Application: | DSL To Home Modem | Color: | Black |
| Type: | VDSL2 WIFI MODEM | Power Supply: | 12V 2A |
| Certification: | CE | Chipset: | BCM63167 |
| High Light: | 802.11g vdsl2 modem,dsl to home vdsl2 modem,802.11n vdsl2 compatible modem |
||

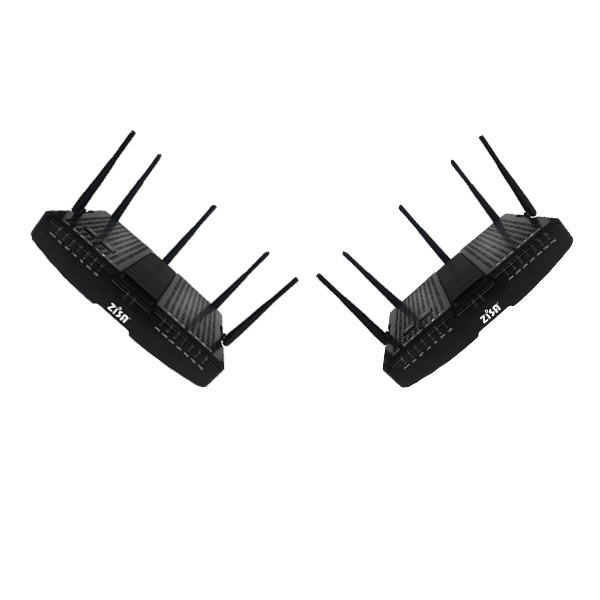

802.11a/b/g/n/ac 2.4G 5G dual band wireless 1600Mbps gigabit wifi adsl2/2+ vdsl2 modem
Description
The V800VWL-AC is a high-speed VDSL. It provides sufficient bandwidth for high performance connection to the Internet. It has Web-based graphic user interface (GUI), in which you can easily modify the settings and connect to your ISP. It also provides flow statistics, connection status, and other detailed information. The V800WL-AC is easily upgraded and provides terminal users and ISP with the guarantee of future.
Features:
Specifications
| BASIC | |
| IEEE Standards | IEEE 802.3, 802.3u, 802.3ab |
| VDSL/VDSL2 Standards |
ITU-TG.993.1(VDSL) ITU-T G.993.2(VDSL2) (Profile 8a, 8b, 8c, 8d, 12a,12b,17a) |
| ADSL Standards |
Full-rate ANSI T1.413 issue 2 ITU-T G.992.1 (G.dmt), supporting Annex A or B ITU -TG.992.2 (G.lite), supporting Annex A or B |
| ADSL2 Standards |
ITU-T G.992.3 (G. dmt.bis), supporting Annex A or B, Annex L and Annex M ITU-T G.992.4 (G.lite.bis), supporting Annex A or B |
| ADSL2+ Standards | ITU-T G.992.5,supporting Annex A or B, Annex L and Annex M |
| Speed |
Downstream: up to 100Mbps; Upstream: up to 50Mbps |
| Operation Modes | VDSL/ADSL Modem, Wireless Router, 5 Ports Switch, VoIP Gateway |
| WAN Connection Types | PPPoE, PPPoA, IPoE, Bridge, IPoA |
| WIRELESS | |
| Wireless Standards | IEEE 802.11b/g/n/ac |
| Frequency Range | 2.4GHz, 5GHz |
| Wireless Speed |
11n speed up to 300Mbps 11ac speed up to 1300Mbps |
| Wireless Security | 64/128-bit WEP/WPA-PSK/WPA2-PSK/TKIP/AES |
| Transmit Power | <20dBm (EIRP) |
| Wireless Features |
Multi-SSID Access Control List WDS ,WMM, WMF Hide Access Point Clients Isolation Disable WMM Advertise MAC filter |
| DSL Features |
PTM and ATM mode including dual latency Both Annex A and Annex B including dual latency US0 Diagnostics mode/DELT Bitswaps, SRA and SOS/ROC,Virtual Noise FEXT equalized UPBO Dying gasp INM PhyR and G.INP (framing type 1) G.vector |
FAQ
Q1. ZISA product the quality of products.
A: As the top class total solution provider and productive service provider, we provide high quality of service to Tier1 Telco customer and Vendors. With the genius design and software customization expertise, we can leverage the best service to our customers. ZISA Product quality is same as Huawei and ZTE, and ZISA has complete product line.
Flexible , Smart and selective producing system, the top manufacture in vertical career choose our team, with decade of global market and professional experience.
Q2. ZISA after-sales service.
A:ZISA has complete software and hardware research and development. Provide reqiurment development, bug modify and 24h on-line support. For significant customers, ZISA can send technician to support.
Q3. Ways of cooperation with ZISA.
A :ZISA welcome integrator or agent to agent ZISA product. If agent has enough advantages in the market, ZISA appoint you ZISA sole agent.
Q4. About factory visit.
A :ZISA welcome significant customers to visit ZISA factory. Please make an appointment in two weeks.
Q5. About product pricing.
A :ZISA only publish sample price. The price of different agent and OEM customer is secret. ZISA gives specific price for significant projects and customers. Besides, ZISA only provide goods to agent in agent area.
