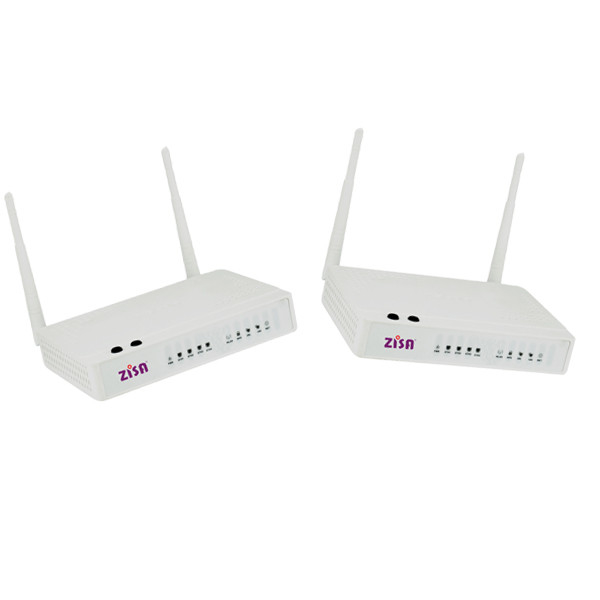

Home Gateway Modem Vdsl 2 Full Gigabit Wireless Broadband Fttb 4fe Router Adsl2+

Basic Information
Place of Origin: CHINA
Brand Name: ZISA
Certification: CE
Model Number: V105WL
Minimum Order Quantity: 1
Price: 36-54USD
Packaging Details: box 1kg
Delivery Time: 5-8weeks
Payment Terms: T/T
Supply Ability: 10000PCS
Detail Information
Product Name: VDSL2 WIFI Router Port: 1*RJ11+4*FE RJ45
WIFI: 802.11n Color: WHITE
Type: VDSL2 WIFI MODEM Power Supply: 12V 1500mA
Certification: CE Chipset: BCM63381
High Light:

full gigabit modem vdsl 2


fttb modem vdsl 2


adsl2+ vdsl2 compatible modem

Product Description

Home Gateway Full Gigabit Wireless Broadband Modem FTTB 4FE Router ADSL2+ VDSL2 Modem

IEEE StandardsIEEE 802.3, 802.3u
VDSL/VDSL2 Standards

ITU-T G.993.2(VDSL2) (Profile 8a, 8b, 8c, 8d, 12a,12b,17a)

ADSL Standards

Full-rate ANSI T1.413 issue 2
ITU-T G.992.1 (G.dmt), supporting Annex A or B
ITU -TG.992.2 (G.lite), supporting Annex A or B

ADSL2 Standards

ITU-T G.992.3 (G. dmt.bis), supporting Annex A or B, Annex L and Annex M
ITU-T G.992.4 (G.lite.bis), supporting Annex A or B

ADSL2+ StandardsITU-T G.992.5,supporting Annex A or B, Annex L and Annex M

Downstream: up to 100Mbps;
Upstream: up to 50Mbps

Operation ModesVDSL/ADSL Modem, Wireless Router, 4 Ports Switch
WAN Connection TypesPPPoE, PPPoA, IPoE, Bridge, IPoA


Wireless StandardsIEEE 802.11b/g/n
Wireless Speed11n speed up to 300Mbps
WIFI Frequency Range2.4Ghz-2.4835Ghz
Transmit Power<20dBm(EIRP)
Wireless Security64/128-bit WEP/WPA-PSK/WPA2-PSK/TKIP/AES
Wireless Features

Access Control List
Hide Access Point
Clients Isolation
Disable WMM Advertise
Enable Wireless Multicast Forwarding (WMF)
Wireless Bridge
MAC Filter

Function Features

Static Route, Dynamic RIPv1, RIPv2 support
DMZ support
NAT Application Level Gateway for popular applications
DHCP Server/Relay/Client
DNS Relay Agent/DDNS support
PPP Auto Reconnect on WAN Access/PPP
IGMP Snooping v1/2 and IGMP Multicast
IPv4 and IPv6 dual stack
Monitoring of individual LAN/WAN traffic
Universal Plug and Play (UPnP) Compliance
Ease of use with quick installation wizard

Security Support

Parental control
PAP/CHAP for PPP mode
NAT forFirewall
SPI Firewall
2 Level (User/Admin) Authentication to Router
IP and MAC Filtering

Management Support

Web Based GUI
FTP /HTTP/Telnet/TR069 /SNMP v1/2c
Command Line Interface
Diagnostic Test
Firmware upgrade-able
Supports Remote Access Control

ATM, PTM and PPP Features

RFC2684 /2364 /2516 /2225/1577 /148/1483/2684
ATM Forum UNI 3.1/4.0, ATM Adaptation Layer Type 5-AAL5
VPI Range (0-255) and VCI range (32-65535)
UBR, CBR, VBR-rt, VBR-nrt
F4/F5 OAM Loopback
AIS and RDI OAM cells
Supports 16 PVCs

Port ForwardingVirtual server, Port Triggering, DMZ, ALG, UPnP
Dynamic DNSDynDns, NO-IP
DHCPServer, Client, DHCP Client List
Address Reservation, DHCP relay

Priority Queuing
Classification Rules

Physical Interface4 *FE LAN, 1*DSL RJ11 port,1*USB 2.0 Host
ButtonsPower /WPS /Reset

Input: 100-240V AC,50H;
Output: 12V/1.5A

LED IndicatorsPower, LAN1-LAN4, WLAN, WPS, DSL, Internet, USB
USB sharingSamba(Storage)/FTP Server/Media Server/Printer Server
Memory16MB flash and 64MB RAM
Chipset BCM63381+BCM6303+BCM43217T+BCM50212E
Wi-Fi AntennaTwo external antennas, MIMO 3dBi (default)

The V105WL provides one xDSL interface, four Ethernet interfaces, one WAN interface, two USB host 2.0 interfaces, WPS Button and 2.4G internal WIFI antennas. The Ethernet and WIFI are used for connecting to computers, through which you can access the Internet. The WIFI interface support 802.11n 2.4GHz band. It is an ideal broadband CPE solution for both home users who wish to share high-speed Internet access and small office that wish to do business on the Internet.
Applications Diagram

  • Compatibility: Interoperable with all major DSLAM equipments
  • QOS:Quality of Service control for tra­ffic prioritization and bandwidth management
  • Dual WAN approach: VDSL2/ADSL2+, and Ethernet WAN for Broadband Connectivity
  • IPv6 ready:IPv4/IPv6 dual stack
  • Simple set up with GUI:GUI makes installation easier and faster

Home Gateway Modem Vdsl 2 Full Gigabit Wireless Broadband Fttb 4fe Router Adsl2+ 0
Q1. ZISA product the quality of products.
A: As the top class total solution provider and productive service provider, we provide high quality of service to Tier1 Telco customer and Vendors. With the genius design and software customization expertise, we can leverage the best service to our customers. ZISA Product quality is same as Huawei and ZTE, and ZISA has complete product line.
Flexible , Smart and selective producing system, the top manufacture in vertical career choose our team, with decade of global market and professional experience.
Q2. ZISA after-sales service.
A: ZISA has complete software and hardware research and development. Provide reqiurment development, bug modify and 24h on-line support. For significant customers, ZISA can send technician to support.
Q3. Ways of cooperation with ZISA.
A : ZISA welcome integrator or agent to agent ZISA product. If agent has enough advantages in the market, ZISA appoint you ZISA sole agent.
Q4. About factory visit.
A : ZISA welcome significant customers to visit ZISA factory. Please make an appointment in two weeks.
Q5. About product pricing.
A : ZISA only publish sample price. The price of different agent and OEM customer is secret. ZISA gives specific price for significant projects and customers. Besides, ZISA only provide goods to agent in agent area.
