| Place of Origin: | CHINA |
|---|---|
| Brand Name: | ZISA |
| Certification: | CE |
| Model Number: | V105WL |
| Minimum Order Quantity: | 1 |
| Price: | 36-54USD |
| Packaging Details: | box 1kg |
| Delivery Time: | 5-8weeks |
| Payment Terms: | T/T |
| Supply Ability: | 10000PCS |
| Product Name: | VDSL2+ WIFI Modem | Warranty: | ONE YEAR |
|---|---|---|---|
| Application: | VDSL To Home | Color: | WHITE |
| Type: | VDSL2+ WIFI MODEM | Power Supply: | 12V 1500mA |
| Certification: | CE | Chipset: | BCM63381 |
| High Light: | copper vdsl2 modem,english version vdsl2 modem,4 lan vdsl2 compatible modem |
||

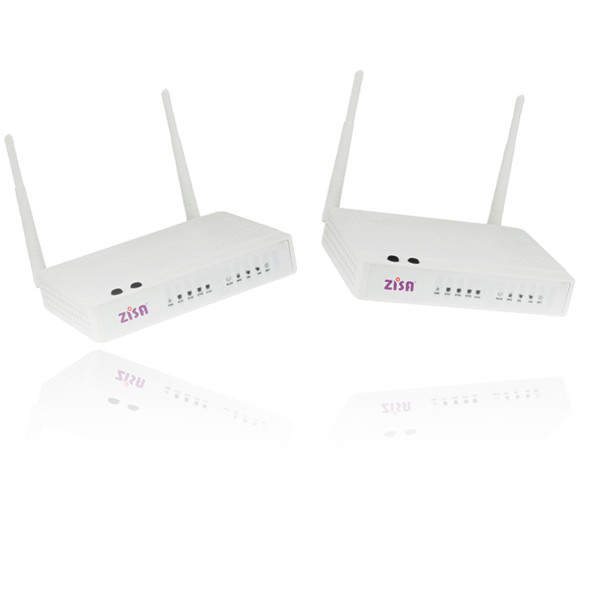

Copper Modem English version VDSL2 ADSL2+ 4LAN Wireless 300M 2x2 Mimo Antenna
Description
The V105WL provides one xDSL interface, four Ethernet interfaces, one WAN interface, two USB host 2.0 interfaces, WPS Button and 2.4G internal WIFI antennas. The Ethernet and WIFI are used for connecting to computers, through which you can access the Internet. The WIFI interface support 802.11n 2.4GHz band. It is an ideal broadband CPE solution for both home users who wish to share high-speed Internet access and small office that wish to do business on the Internet.
Applications Diagram
Specifications
| WIRELESS | |
| Wireless Standards | IEEE 802.11b/g/n |
| Wireless Speed | 11n speed up to 300Mbps |
| WIFI Frequency Range | 2.4Ghz-2.4835Ghz |
| Transmit Power | <20dBm(EIRP) |
| Wireless Security | 64/128-bit WEP/WPA-PSK/WPA2-PSK/TKIP/AES |
| Wireless Features |
Access Control List Hide Access Point Clients Isolation Disable WMM Advertise Enable Wireless Multicast Forwarding (WMF) Wireless Bridge MAC Filter |
| SOFTWARE | |
| Function Features |
Static Route, Dynamic RIPv1, RIPv2 support DMZ support NAT Application Level Gateway for popular applications DHCP Server/Relay/Client DNS Relay Agent/DDNS support PPP Auto Reconnect on WAN Access/PPP IGMP Snooping v1/2 and IGMP Multicast IPv4 and IPv6 dual stack Monitoring of individual LAN/WAN traffic Universal Plug and Play (UPnP) Compliance Ease of use with quick installation wizard |
| Security Support |
64/128-bit WEP/WPA-PSK/WPA2-PSK/TKIP/AES Parental control PAP/CHAP for PPP mode NAT forFirewall SPI Firewall 2 Level (User/Admin) Authentication to Router IP and MAC Filtering |
| Management Support |
Web Based GUI FTP /HTTP/Telnet/TR069 /SNMP v1/2c Command Line Interface Diagnostic Test Firmware upgrade-able Supports Remote Access Control |
| ATM, PTM and PPP Features |
RFC2684 /2364 /2516 /2225/1577 /148/1483/2684 ATM Forum UNI 3.1/4.0, ATM Adaptation Layer Type 5-AAL5 VPI Range (0-255) and VCI range (32-65535) UBR, CBR, VBR-rt, VBR-nrt F4/F5 OAM Loopback AIS and RDI OAM cells Supports 16 PVCs |
| VPN | IPSec/PPTP/L2TPpassthrough |
| Port Forwarding | Virtual server, Port Triggering, DMZ, ALG, UPnP |
| Dynamic DNS | DynDns, NO-IP |
| DHCP | Server, Client, DHCP Client List Address Reservation, DHCP relay |
| QOS |
Priority Queuing Classification Rules 802.1p |
FAQ
Q1. ZISA product the quality of products.
A: As the top class total solution provider and productive service provider, we provide high quality of service to Tier1 Telco customer and Vendors. With the genius design and software customization expertise, we can leverage the best service to our customers. ZISA Product quality is same as Huawei and ZTE, and ZISA has complete product line.
Flexible , Smart and selective producing system, the top manufacture in vertical career choose our team, with decade of global market and professional experience.
Q2. ZISA after-sales service.
A:ZISA has complete software and hardware research and development. Provide reqiurment development, bug modify and 24h on-line support. For significant customers, ZISA can send technician to support.
Q3. Ways of cooperation with ZISA.
A :ZISA welcome integrator or agent to agent ZISA product. If agent has enough advantages in the market, ZISA appoint you ZISA sole agent.
Q4. About factory visit.
A :ZISA welcome significant customers to visit ZISA factory. Please make an appointment in two weeks.
Q5. About product pricing.
A :ZISA only publish sample price. The price of different agent and OEM customer is secret. ZISA gives specific price for significant projects and customers. Besides, ZISA only provide goods to agent in agent area.
