| Place of Origin: | CHINA |
|---|---|
| Brand Name: | ZISA |
| Certification: | CE |
| Model Number: | OP151 |
| Minimum Order Quantity: | 1 |
| Price: | 12-15USD |
| Packaging Details: | box 0.5kg |
| Delivery Time: | 5-8weeks |
| Payment Terms: | T/T |
| Supply Ability: | 10000PCS |
| Product Name: | ZISA 1GE Xpon ONT Device | Warranty: | 10 Months |
|---|---|---|---|
| Application: | FTTH PON ONT | Color: | WHITE |
| Type: | ONU | Power Supply: | 12V 1A |
| Certification: | CE | Chipset: | Realtek 9601D |
| High Light: | realtek 9601d xpon ont,ftth modern xpon ont,realtek 9601d xpon ont modem |
||

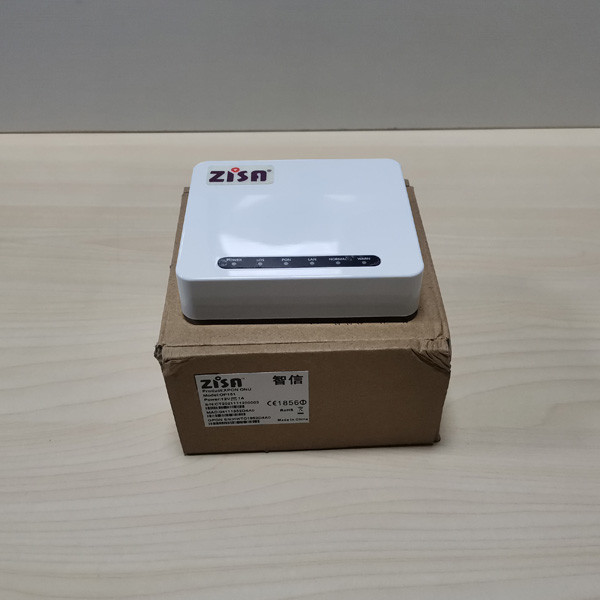

XPON ONT Splitter Fiber Optic ONT network device Modem Fiber Optic
Panel lights and Introduction
| Pilot | Status | Description |
| POWER | On | The device is powered up. |
| Off | The device is powered down. | |
| LOS | Blink | The device doses not receive optical signals. |
| Off | The device has received optical signal. | |
| PON | On | The device has registered to the PON system. |
| Blink | The device is registering the PON system. | |
| Off | The device registration is incorrect. | |
| LAN | On | Port is connected properly (LINK). |
| Blink | Port is sending or/and receiving data (ACT). | |
| Off | Port connection exception or not connected. |
Feature
Product Specifications
| Technical Item | Details |
| PON interface |
1 GPON/EPON port(EPON PX20+ and GPON Class B+) Upstream: 1310nm, Downstream: 1490nm SC/APC connector Receiving sensitivity: ≤-27dBm Transmitting optical power: 0~+4dBm Transmission distance: 20KM |
| LAN interface |
10/100/1000Mbps auto adaptive Ethernet interfaces. 10/100/1000M Full/Half, RJ45 connector |
| LED | 4 LED, For Status of POWER, LOS, PON, LAN |
| Push-Button | 2, for Function of Power on/off, Reset |
| Operating condition |
Temperature : 0℃～50℃ Humidity :10%～90%(non-condensing) |
| Storing Condition |
Temperature : -40℃～+60℃ Humidity :10%～90%(non-condensing) |
| Power supply | DC 12V/1A |
| Power Consumption | <3W |
| Net Weight | <0.2kg |
Company Profile:
ZISA Technology Limited was created in 2004, based in Beijing.
We are an innovative ICT company for more than 10 years.
ZISA is committed to providing the professional service and solutions to oversea customers, making continuous innovation to meet the requirements of customers.As a global market company, ZISA Fibre PON equipment, wireless AP solutions and xDSL solutions have been reached over 30 countries and regions.
Our team are full of creative and energetic engineers and workers.The innovative,comprehensive IT technique was grasped by us.Some of them has been worked in famous companies.The factory which cooperate with us is T&W with huge productivity.We also have flexible selling module---ODM&OEM,as agent are all welcome.
