Modem 1ge Router Splitter XPON ONU Fiber Optic Network Device

Basic Information
Place of Origin: CHINA
Brand Name: ZISA
Certification: CE
Model Number: OP151
Minimum Order Quantity: 1
Price: 12-15USD
Packaging Details: box 0.5kg
Delivery Time: 5-8weeks
Payment Terms: T/T
Supply Ability: 10000PCS
Detail Information
Product Name: ZISA 1GE Xpon ONU Device Warranty: 12 Months
Application: FTTH PON Color: WHITE
Type: ONU Power Supply: 12V 1A
Certification: CE Chipset: Realtek 9601D
High Light:

splitter xpon onu

,

fiber optic network device xpon onu

,

modem 1ge xpon onu router


Product Description

XPON Router Splitter Fiber Optic ONU network device Modem Fiber Optic







Product Overview



  • 1GE is designed by Realtek chipset 9601D
  • 1GE adopts high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees to meet the technical performance of the module of China Telecom EPON CTC3.0.
  • 1GE is fully compliant with technical regulations such as ITU-T G.984.x and IEEE802.3ah.



Feature



  • Support port mode of VLAN configuration
  • Support LAN IP and DHCP Server configuration
  • Support Route PPPoE/IPoE/DHCP/Static IP and Bridge mixed mode
  • Support IPv4/IPv6dual stack
  • Support IGMP transparent/snooping/proxy
  • In compliant with ITU-T G.984.x and IEEE802.3ah standard
  • Compatible with popular OLT (HW, ZTE, FiberHome,Vsol...)



Product Specifications



Technical Item Details
PON interface

1 GPON/EPON port(EPON PX20+ and GPON Class B+)

Upstream: 1310nm, Downstream: 1490nm

SC/APC connector

Receiving sensitivity: ≤-27dBm

Transmitting optical power: 0~+4dBm

Transmission distance: 20KM

LAN interface

10/100/1000Mbps auto adaptive Ethernet interfaces.

10/100/1000M Full/Half, RJ45 connector

LED 4 LED, For Status of POWER, LOS, PON, LAN
Push-Button 2, for Function of Power on/off, Reset
Operating condition

Temperature : 0℃~50℃

Humidity :10%~90%(non-condensing)

Storing Condition

Temperature : -40℃~+60℃

Humidity :10%~90%(non-condensing)

Power supply DC 12V/1A
Power Consumption <3W
Net Weight <0.2kg





Panel lights and Introduction



Pilot Status Description
POWER On The device is powered up.
Off The device is powered down.
LOS Blink The device doses not receive optical signals.
Off The device has received optical signal.
PON On The device has registered to the PON system.
Blink The device is registering the PON system.
Off The device registration is incorrect.
LAN On Port is connected properly (LINK).
Blink Port is sending or/and receiving data (ACT).
Off Port connection exception or not connected.

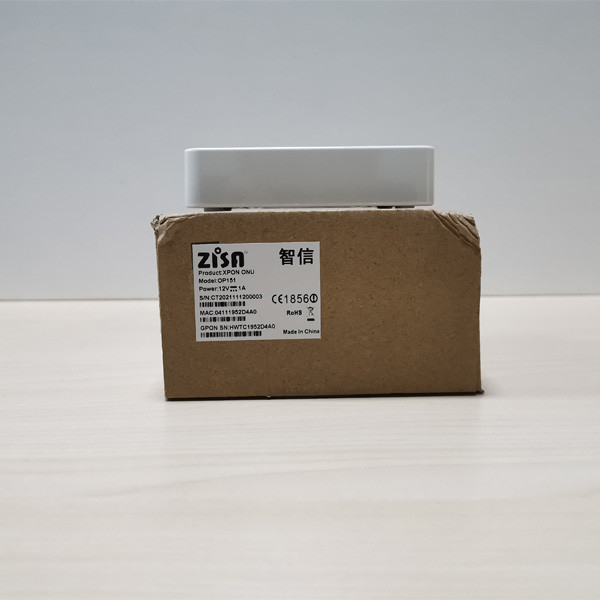

Modem 1ge Router Splitter XPON ONU Fiber Optic Network Device 0





FAQ



Q1. ZISA after-sales service.
A:ZISA has complete software and hardware research and development. Provide reqiurment development, bug modify and 24h on-line support. For significant customers, ZISA can send technician to support.

Q2. Ways of cooperation with ZISA.
A :ZISA welcome integrator or agent to agent ZISA product. If agent has enough advantages in the market, ZISA appoint you ZISA sole agent.

Q3. About factory visit.
A :ZISA welcome significant customers to visit ZISA factory. Please make an appointment in two weeks.

Q4. About product pricing.
A :ZISA only publish sample price. The price of different agent and OEM customer is secret. ZISA gives specific price for significant projects and customers. Besides, ZISA only provide goods to agent in agent area.
