|Product Name:||ZISA V800VWL-AC 1600Mbps Wireless VDSL2||Application:||FTTH|
|Warranty:||1 YEAR||Power Supply:||12V 2A|
FTTH Black VDSL2 MODEM,
VDSL2 MODEM IEEE 802.3,
1600Mbps Wireless VOIP Router

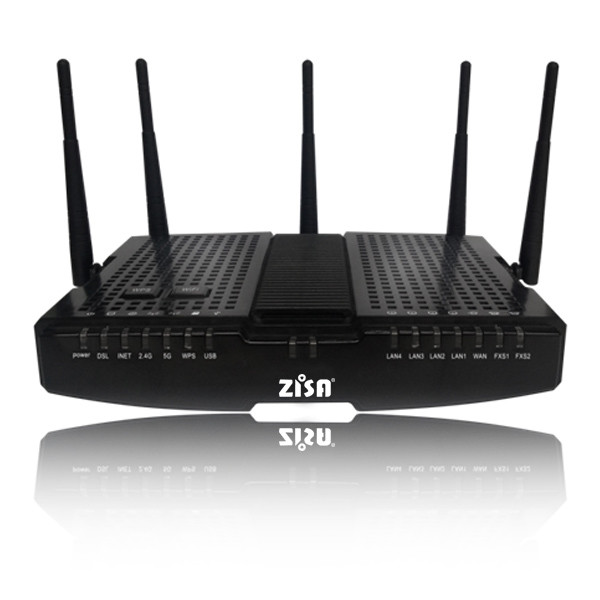

ZISA V800VWL-AC 1600Mbps Wireless VOIP VDSL2 Modem Router
The V800VWL-AC is a high-speed VDSL. It provides sufficient bandwidth for high performance connection to the Internet. It has Web-based graphic user interface (GUI), in which you can easily modify the settings and connect to your ISP. It also provides flow statistics, connection status, and other detailed information. The V800WL-AC is easily upgraded and provides terminal users and ISP with the guarantee of future.
The V800VWL-AC provides one xDSL 17a interface, four GE LAN, one GE WAN, two FXS VoIP PORTS,one USB host 2.0 interface and 2.4G and 5G internal WIFI antennas. The Ethernet and WIFI are used for connecting to computers, through which you can access the Internet. The WIFI interface support 802.11ac 2.4GHz and 5G band. It is an ideal broadband CPE solution for both home users who wish to share high-speed Internet access and small offices that wish to do business on the Internet.
|IEEE Standards||IEEE 802.3, 802.3u, 802.3ab|
ITU-T G.993.2(VDSL2) (Profile 8a, 8b, 8c, 8d, 12a,12b,17a)
Full-rate ANSI T1.413 issue 2
ITU-T G.992.1 (G.dmt), supporting Annex A or B
ITU -TG.992.2 (G.lite), supporting Annex A or B
ITU-T G.992.3 (G. dmt.bis), supporting Annex A or B, Annex L and Annex M
ITU-T G.992.4 (G.lite.bis), supporting Annex A or B
|ADSL2+ Standards||ITU-T G.992.5,supporting Annex A or B, Annex L and Annex M|
Downstream: up to 100Mbps;
Upstream: up to 50Mbps
|Operation Modes||VDSL/ADSL Modem, Wireless Router, 5 Ports Switch, VoIP Gateway|
|WAN Connection Types||PPPoE, PPPoA, IPoE, Bridge, IPoA|
|Wireless Standards||IEEE 802.11b/g/n/ac|
|Frequency Range||2.4GHz, 5GHz|
11n speed up to 300Mbps
11ac speed up to 1300Mbps
|Wireless Security||64/128-bit WEP/WPA-PSK/WPA2-PSK/TKIP/AES|
|Transmit Power||<20dBm (EIRP)|
Access Control List
WDS ,WMM, WMF
Hide Access Point
Disable WMM Advertise
Q1. ZISA product the quality of products.
A: As the top class total solution provider and productive service provider, we provide high quality of service to Tier1 Telco customer and Vendors. With the genius design and software customization expertise, we can leverage the best service to our customers. ZISA Product quality is same as Huawei and ZTE, and ZISA has complete product line.
Flexible , Smart and selective producing system, the top manufacture in vertical career choose our team, with decade of global market and professional experience.
Q2. ZISA after-sales service.
A:ZISA has complete software and hardware research and development. Provide reqiurment development, bug modify and 24h on-line support. For significant customers, ZISA can send technician to support.
Q3. Ways of cooperation with ZISA.
A :ZISA welcome integrator or agent to agent ZISA product. If agent has enough advantages in the market, ZISA appoint you ZISA sole agent.
Q4. About factory visit.
A :ZISA welcome significant customers to visit ZISA factory. Please make an appointment in two weeks.
Q5. About product pricing.
A :ZISA only publish sample price. The price of different agent and OEM customer is secret. ZISA gives specific price for significant projects and customers. Besides, ZISA only provide goods to agent in agent area.
