300Mbps Wireless VDSL2 Modem Router VDSL2 Compatible Modem CE

Basic Information
Place of Origin: CHINA
Brand Name: ZISA
Certification: CE
Model Number: V105WL
Minimum Order Quantity: 1
Price: 36-54USD
Packaging Details: box 1kg
Delivery Time: 5-8weeks
Payment Terms: T/T
Supply Ability: 10000PCS
Detail Information
Product Name: ZISA V105WL 300Mbps Wireless VDSL2 Modem Application: FTTH
Color: WHITE Type: VDSL2 MODEM
Warranty: 1 YEAR Power Supply: 12V 1.5A
Certification: CE Chipset: BCM63381
High Light:

Wireless VDSL2 Modem Router

,

VDSL2 MODEM FTTH

,

300Mbps vdsl2 compatible modem


Product Description

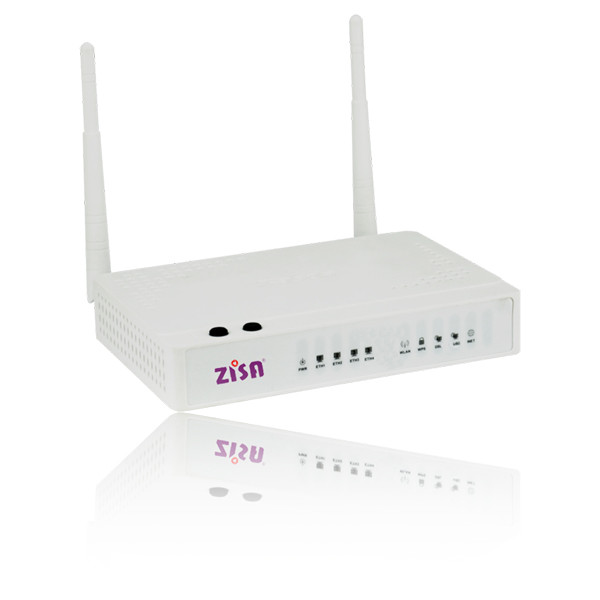

ZISA V105WL 300Mbps Wireless VDSL2 Modem Router Vdsl modem



Description



The V105WL is a high-speed VDSL Router. It provides sufficient bandwidth for high performance connection to the Internet. It has Web-based graphic user interface (GUI), in which you can easily modify the settings and connect to your ISP. It also provides flow statistics, connection status, and other detailed information. The V105WL is easily upgraded and provides terminal users and ISP with the guarantee of future. The V105WL provides one xDSL interface, four Ethernet interfaces, one WAN interface, two USB host 2.0 interfaces, WPS Button and 2.4G internal WIFI antennas. The Ethernet and WIFI are used for connecting to computers, through which you can access the Internet. The WIFI interface support 802.11n 2.4GHz band. It is an ideal broadband CPE solution for both home users who wish to share high-speed Internet access and small office that wish to do business on the Internet.



Applications Diagram



  •  VDSL Fall back:Compliant with all ADSL2+/VDSL2 standards
  •  High Speed:Downstream rates up to 100Mbps and upstream rates up to 50Mbps
  •  2.4G 300Mbps Wi-Fi:Twoexternal antennas to deliver the best wireless signal, connect everything in your home and office in one device
  •  Ethernet Port: 4 FE LAN ports extend to more devices by default, optional for 1GE WAN + 4FE LAN as ETH router
  •  Multi-function USB2.0 Port: Printers, files and media can be shared with computer or using the device's FTP server
  •  Operating Distance: Up to 1KM(VDSL mode), up to 7KM( ADSL mode)
  •  WPS Button: Instant connection to wireless network safely
  •  TR-069:Manage settings and updates remotely from any end equipment
  •  Compatibility: Interoperable with all major DSLAM equipments
  •  QOS:Quality of Service control for tra­ffic prioritization and bandwidth management
  •  Dual WAN approach: VDSL2/ADSL2+, and Ethernet WAN for Broadband Connectivity
  •  IPv6 ready:IPv4/IPv6 dual stack
  •  Simple set up with GUI:GUI makes installation easier and faster



Specifications



  BASICS
IEEE Standards IEEE 802.3, 802.3u
VDSL/VDSL2 Standards

ITU-TG.993.1(VDSL)

ITU-T G.993.2(VDSL2) (Profile 8a, 8b, 8c, 8d, 12a,12b,17a)

ADSL Standards

Full-rate ANSI T1.413 issue 2

ITU-T G.992.1 (G.dmt), supporting Annex A or B

ITU -TG.992.2 (G.lite), supporting Annex A or B

ADSL2 Standards

ITU-T G.992.3 (G. dmt.bis), supporting Annex A or B, Annex L and Annex M

ITU-T G.992.4 (G.lite.bis), supporting Annex A or B

ADSL2+ Standards ITU-T G.992.5,supporting Annex A or B, Annex L and Annex M
Speed

Downstream: up to 100Mbps;

Upstream: up to 50Mbps

Operation Modes VDSL/ADSL Modem, Wireless Router, 4 Ports Switch
WAN Connection Types PPPoE, PPPoA, IPoE, Bridge, IPoA
  WIRELESS
Wireless Standards IEEE 802.11b/g/n
Wireless Speed 11n speed up to 300Mbps
WIFI Frequency Range 2.4Ghz-2.4835Ghz
Transmit Power <20dBm(EIRP)
Wireless Security 64/128-bit WEP/WPA-PSK/WPA2-PSK/TKIP/AES
Wireless Features



Access Control List

Hide Access Point

Clients Isolation

Disable WMM Advertise

Enable Wireless Multicast Forwarding (WMF)

Wireless Bridge

MAC Filter

  SOFTWARE
Function Features

Static Route, Dynamic RIPv1, RIPv2 support

DMZ support

NAT Application Level Gateway for popular applications

DHCP /Relay/Client

DNS Relay Agent/DDNS support

PPP Auto Reconnect on WAN Access/PPP

IGMP Snooping v1/2 and IGMP Multicast

IPv4 and IPv6 dual stack

Monitoring of individual LAN/WAN traffic

Universal Plug and Play (UPnP) Compliance

Ease of use with quick installation wizard

Security Support

64/128-bit WEP/WPA-PSK/WPA2-PSK/TKIP/AES

Parental control

PAP/CHAP for PPP mode

NAT forFirewall

SPI Firewall

2 Level (User/Admin) Authentication to Router

IP and MAC Filtering

Management Support

Web Based GUI

FTP /HTTP/Telnet/TR069 /SNMP v1/2c

Command Line Interface

Diagnostic Test

Firmware upgrade-able

Supports Remote Access Control

ATM, PTM and PPP Features

RFC2684 /2364 /2516 /2225/1577 /148/1483/2684

ATM Forum UNI 3.1/4.0, ATM Adaptation Layer Type 5-AAL5

VPI Range (0-255) and VCI range (32-65535)

UBR, CBR, VBR-rt, VBR-nrt

F4/F5 OAM Loopback

AIS and RDI OAM cells

Supports 16 PVCs

VPN IPSec/PPTP/L2TPpassthrough
Port Forwarding Virtual server, Port Triggering, DMZ, ALG, UPnP
Dynamic DNS DynDns, NO-IP
DHCP Server, Client, DHCP Client List
Address Reservation, DHCP relay
QOS

Priority Queuing

Classification Rules

802.1p

  HARDWARE
Physical Interface 4 *FE LAN, 1*DSL RJ11 port,1*USB 2.0 Host
Buttons Power /WPS /Reset
Power

Input: 100-240V AC,50H;

Output: 12V/1.5A

LED Indicators Power, LAN1-LAN4, WLAN, WPS, DSL, Internet, USB
USB sharing Samba(Storage)/FTP Server/Media Server/Printer Server
Memory 16MB flash and 64MB RAM
Chipset BCM6303+BCM43217T+BCM50212E
Wi-Fi Antenna Two external antennas, MIMO 3dBi (default)





FAQ



Q1. ZISA product the quality of products.
A: As the top class total solution provider and productive service provider, we provide high quality of service to Tier1 Telco customer and Vendors. With the genius design and software customization expertise, we can leverage the best service to our customers. ZISA Product quality is same as Huawei and ZTE, and ZISA has complete product line.

Flexible , Smart and selective producing system, the top manufacture in vertical career choose our team, with decade of global market and professional experience.



Q2. ZISA after-sales service.
A:ZISA has complete software and hardware research and development. Provide reqiurment development, bug modify and 24h on-line support. For significant customers, ZISA can send technician to support.

Q3. Ways of cooperation with ZISA.
A :ZISA welcome integrator or agent to agent ZISA product. If agent has enough advantages in the market, ZISA appoint you ZISA sole agent.

Q4. About factory visit.
A :ZISA welcome significant customers to visit ZISA factory. Please make an appointment in two weeks.

Q5. About product pricing.
A :ZISA only publish sample price. The price of different agent and OEM customer is secret. ZISA gives specific price for significant projects and customers. Besides, ZISA only provide goods to agent in agent area.
