VDSL2 2.4G 5G MU-MIMO VoIP Gateway Modem VDSL2 Modem Bridge Mode

Basic Information
Place of Origin: CHINA
Brand Name: ZISA
Certification: CE
Model Number: V800VWL-AC
Minimum Order Quantity: 1
Price: 65USD
Packaging Details: box 2kg
Delivery Time: 5-8weeks
Payment Terms: T/T
Supply Ability: 10000PCS
Detail Information
Product Name: VoIP Gateway Application: FTTH
Warranty: 1 YEAR Power Supply: 12V 1.5A
Certification: CE OEM: Yes
High Light:

2.4G 5G VoIP Gateway Modem


MU-MIMO VoIP Gateway Modem


5G VDSL2 modem bridge mode

Product Description

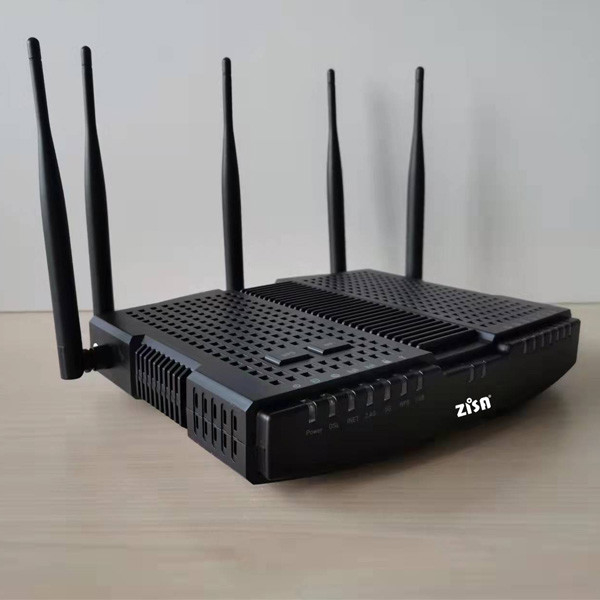

ZISA V800VWL-AC AC1200 VDSL2 2.4G 5G MU-MIMO VoIP Gateway Modem



  •  VDSL2 fall back:Falling back to ADSL2/2+ automatically
  •  High Speed: Downstream rates up to 100Mbps and upstream rates up to 100Mbps
  •  11AC1200Mbps Wi-Fi:4Internalantenna to deliver the best wireless signal, connect everything in your home and office in one device
  •  MU-MIMO – Efficient MU-MIMO technology serves multiple devices simultaneously
  •  5 Gigabit Port Switch: Extend the LAN to more devices and further distance allow up to 10 x higher speed
  •  Dual WAN: 1 Gigabit WAN port to make the Modem Router work as Wireless Router mode
  •  Multi-function USB2.0 Port:Printers, files and media can be shared with computer or using the device'sFTP server
  •  VoIP function: 2 FXS ports helps users save phone bills by making phone calls over the Internet, with easier VoIP telephony management -- caller ID,call waiting/holding/forwarding, 3-way conference calls and voice mail, free communications by easily dialing an extension number
  •  Compatibility: Interoperable with all major DSLAM equipment
  •  Operating distance: up to 1KM(VDSL mode), up to 6KM( ADSL mode)
  •  TR-069:Manage settings and updates remotely from any end equipment
  •  QOS:Quality of Service control for traffic prioritization and bandwidth management
  •  WPS Button:Instant connection to wireless network safely
  •  Simple set up with GUI:GUI makes installation easier and faster

VDSL2 2.4G 5G MU-MIMO VoIP Gateway Modem VDSL2 Modem Bridge Mode 0

IEEE Standards IEEE 802.3, 802.3u, 802.3ab
VDSL/VDSL2 Standards

ITU-T G.993.2(VDSL2) (Profile 8a, 8b, 8c, 8d, 12a,12b,17a,30a,35b)

ADSL Standards

Full-rate ANSI T1.413 issue 2
ITU-T G.992.1 (G.dmt), supporting Annex A or B
ITU -TG.992.2 (G.lite), supporting Annex A or B

ADSL2 Standards

ITU-T G.992.3 (G. dmt.bis), supporting Annex A or B, Annex L and Annex M
ITU-T G.992.4 (G.lite.bis), supporting Annex A or B

ADSL2+ Standards ITU-T G.992.5,supporting Annex A or B, Annex L and Annex M

Downstream: up to 100Mbps;
Upstream: up to 100Mbps

Operation Modes VDSL/ADSL Modem, Wireless Router, 5 Ports Switch, VoIP Gateway
WAN Connection Types PPPoE, PPPoA, IPoE, Bridge, IPoA
Wireless Standards IEEE 802.11b/g/n/ac

11n 2T2R up to 300Mbps
11ac 2T2R up to 900Mbps

Wireless Security 64/128-bit WEP/WPA-PSK/WPA2-PSK/TKIP/AES
Wireless Features

Access Control List
Hide Access Point
Clients Isolation
Disable WMM Advertise
Enable Wireless Multicast Forwarding (WMF)
Wireless bridge
MAC filter

Function Features

Static Route, Dynamic RIPv1, RIPv2 Support
DMZ Support
NAT Application Level Gateway for popular applications
DHCP /Relay/Client
DNS Relay Agent/DDNS support
PPP Auto Reconnect on WAN Access/PPP
IGMP snooping v1/2 and IGMP Multicast
IPv4 and IPv6 dual stack

Security Support

URL filter
PAP/CHAP for PPP mode
NAT forFirewall
SPI Firewall
2 Level (User/Admin) Authentication to Router
IP and MAC Filtering

Management Support

Web Based GUI
FTP /HTTP/Telnet/TR069 /SNMP v1/2c
Command Line Interface
Diagnostic Test
Firmware upgrade-able
Remote Access Control

ATM, PTM and PPP Features

RFC2684 /2364 /2516 /2225/1577 /148/483/2684
ATM Forum UNI 3.1/4.0, ATM Adaptation Layer Type 5-AAL5
VPI Range (0-255) and VCI range (32-65535)
UBR, CBR, VBR-rt, VBR-nrt
F4/F5 OAM Loopback
AIS and RDI OAM cells
Supports 16 PVCs

VPN IPSec/PPTP/L2TPpass through
Port Forwarding Virtual server, Port Triggering, DMZ, ALG, UPnP
Dynamic DNS DynDns, NO-IP
DHCP Server, Client, DHCP Client List
Address Reservation, DHCP relay

Priority Queuing
Classification Rules

VoIP features

Call Waiting/Forwarding/Transfer/Hold
Three Way Conference
Interactive Voice Response(IVR)
Dial Plan
T.38 Fax Relay
Echo Cancellation: G.168
SIP (RFC 3261)/SRDP/RTP (RFC 1889)/RTCP (RFC 1890)/DTMF(RFC 2833)
Codec: G.711, G.723.1, G.726, G.729.AB, G.722
Multi Domain

Physical Interface 4 *GE LAN,1*Gigabit WAN,1*DSL RJ11 port,1*USB2.0,2*FXS Ports
Buttons Power /WiFi /WPS /Reset

Input: 100-240V AC,50Hz;
Output: 12V/1.5A

LED Indicators Power, DSL, INET, WLAN 2.4G, WLAN 5G, WPS,LAN4/3/2/1, WAN, USB,TEL1, TEL2
USB sharing Samba(Storage)/FTP Server/Media Server/Printer Server ( optional )
Antenna 4 internal antennas, MU-MIMO (default)
Processor RTL8695BP+RTL8192ER+RTL8812AR+RTL8275+ LE9642
Memory 128MB RAM, 4MB FLASH




Q1. ZISA product the quality of products.
A: As the top class total solution provider and productive service provider, we provide high quality of service to Tier1 Telco customer and Vendors. With the genius design and software customization expertise, we can leverage the best service to our customers. ZISA Product quality is same as Huawei and ZTE, and ZISA has complete product line.

Flexible , Smart and selective producing system, the top manufacture in vertical career choose our team, with decade of global market and professional experience.


Q2. ZISA after-sales service.
A:ZISA has complete software and hardware research and development. Provide reqiurment development, bug modify and 24h on-line support. For significant customers, ZISA can send technician to support.

Q3. Ways of cooperation with ZISA.
A :ZISA welcome integrator or agent to agent ZISA product. If agent has enough advantages in the market, ZISA appoint you ZISA sole agent.

Q4. About factory visit.
A :ZISA welcome significant customers to visit ZISA factory. Please make an appointment in two weeks.

Q5. About product pricing.
A :ZISA only publish sample price. The price of different agent and OEM customer is secret. ZISA gives specific price for significant projects and customers. Besides, ZISA only provide goods to agent in agent area.
