| Place of Origin: | CHINA |
|---|---|
| Brand Name: | ZISA |
| Certification: | CE |
| Model Number: | OP1616 |
| Minimum Order Quantity: | 1 |
| Price: | 3350-3420usd |
| Packaging Details: | 440mm×260mm× 44mm(W * D *H) 6.5KG |
| Delivery Time: | 1week |
| Payment Terms: | T/T |
| Supply Ability: | 1000pcs |
| Product Name: | 10G 16 Gpon OLT | Model: | OP1616 |
|---|---|---|---|
| Pon Port: | 4 X 10GE SFP+ 16PON | Operating Temperature: | Temperature 10 To 45°C, Rel. Humidity 20–90% (non-condensing) |
| Management Mode: | Command-line Interface（CLI）, Console, Telnet And WEB Configuration | Color: | Blue |
| Storage Temperature: | Temperature -10 To 70°C, Rel. Humidity 10–90% (non-condensing) | Oem/odm: | Yes |
| High Light: | 10G GPON SFP,16 Port GPON SFP,Gpon Olt 16 Port |
||

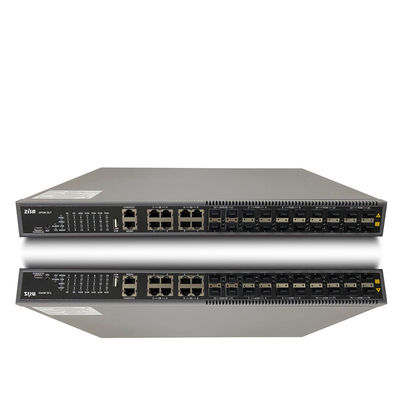

10G Uplink Cassette 16 Port Olt OP1616 8XGE SFP 10GE olt optical line terminal
ZISA OP1616 cassette OLT provides 8 downstream GPON ports, 8 uplink GE optical port and 8 GE electrical ports, with an expansion slot, which can access 2 10GE SFP+ ports. The 1U height can be easy installed and maintained to save space. The OP1616 adopts the industrial advanced technology, with powerful Ethernet services and QoS feature, supporting SLA and DBA. The splitting ratio up to 1:128, supporting different types of ONU in different networks, minimizing operators' investments.
Specification
| Switching capacity | 102Gbps |
| Throughput (IPv4/IPv6) | 75.88MPPS |
| Ports | 8*PON port,8*GE FX+8*GE TX,2*10GE SFP+ |
| Power redundancy | Dual power supply. Can be double AC, double DC or AC+DC |
| Power supply | AC:Input 100～240V,47～63Hz； |
| Power consumption | ≤85W |
Outline dimensions | 440mm×44mm×380mm |
| Weight (in maximum configuration) | ≤3kg |
Environmental | Working temperature:-15°C～55°C |
Features
| OP1616 series | ||
PON features
| GPON | Satisfy ITU -T standard |
| L2 features | MAC | MAC Black Hole |
| VLAN | 4K VLAN entries | |
| Spanning tree protocol | IEEE 802.1D Spanning Tree Protocol (STP) | |
| Port | Bi-directional bandwidth control | |
| Security features | User security | Anti-ARP-spoofing |
| Device security | Anti-DOS attack(such as ARP,Synflood, Smurf, ICMP attack), ARP detection, worm and Msblaster worm attack | |
| Network security | User-based MAC and ARP traffic examination | |
| IP routing | IPv4 | ARP Proxy |
| IPv6 | ICMPv6 |
