FTTH VLAN 16 Downlink Ports 10G GPON OLT Blue With OP3616

Basic Information
Place of Origin: CHINA
Brand Name: ZISA
Certification: CE
Model Number: OP3616
Minimum Order Quantity: 1
Price: 3450-3650usd
Packaging Details: 440mm×400mm× 44mm(W * D *H) 6.5KG
Delivery Time: 1week
Payment Terms: T/T
Supply Ability: 1000pcs
Detail Information
Name: 16 Pon OLT Type: Gpon OLT
Application: FTTH FTTB FTTX Network, FTTH/FTTB/FTTO Operating Temperature: Temperature 0 To 45°C, Rel. Humidity 10–90% (non-condensing)
Management Mode: Command-line Interface(CLI), Console, Telnet And WEB Configuration Color: Blue
Storage Temperature: Temperature -10 To 70°C, Rel. Humidity 10–90% (non-condensing) Oem/odm: Yes
High Light:



16 Ports GPON OLT



Product Description



Product Overview

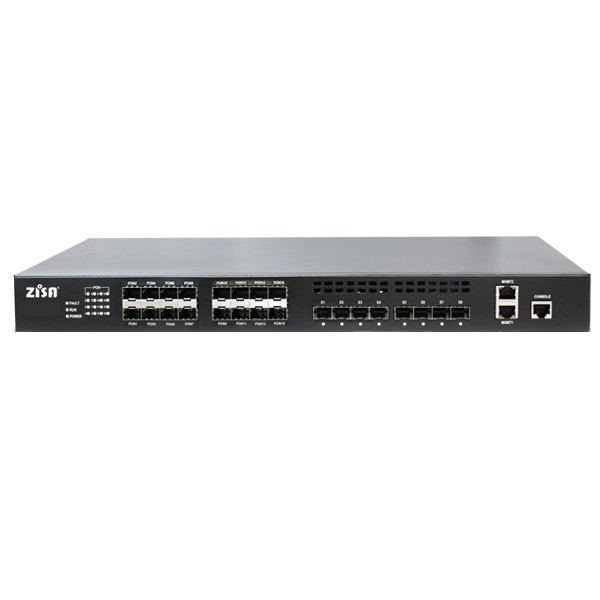

OP3616 provides 16 downlink GPON port, 8 *GE combo port or 2* 10G SFP+ port. Single PON port can manage 128 ONUs, one pcs OP3616 max to 2048 ONUs. The height is only 1U for easy installation and space saving. OP3616 is suitable for Broadcast three in one, video surveillance network, enterprise LAN, Internet of Things, etc.FTTH network.


Product Features:






pon features


ITU-TG.984.x standard

Maximum 20 Km PON transmission distance

Each PON port access 128 ONU and 1K T-CONT

Uplink and downlink triple churning encrypted function with 128Bits

Support of five types T-CONT bandwidth profile

ONU terminal legitimacy certification, report illegal ONU registration

Support of multiple ONU authentication mechanism: SN, Password, SN plus Password, Loid, LoidPassword.

Support of ranging and logical distance configuration

Support of upstream and downstream FEC enabling/disabling

DBA algorithm, the particle is 1Kbit/s

Standard OMCI management function

ONU batch software upgrade, fixed time upgrade, real time upgrade

PON port optical power detection


L2 Features


MAC Black Hole

Port MAC Limit

64K MAC (packet exchange chip cache 2MB, external cache 720 MB )



Port-based/MAC-based/protocol/IP subnet-based

Support of QinQ based on port or service flow

Support of VLAN add, remove, translate and transparent per ONU service

PVLAN to realize port isolation and saving public-vlan resources


Spanning Tree


Remote loop detecting



Static link aggregation and LACP(Link Aggregation Control Protocol)

Port mirroring and traffic mirroring


 Security Features

User’s Security



IP Source Guard create IP+VLAN+MAC+Port binding

Port Isolation

MAC address binding to the port and MAC address filtering

IEEE 802.1x and AAA/Radius authentication

Device Security


detection, worm and Msblaster worm attack

SSHv2 Secure Shell

SNMP v3 encrypted management

Security IP login through Telnet

Hierarchical management and password protection of users

Network Security


Restrict ARP traffic of each user and force-out user with abnormal ARP traffic

Dynamic ARP table-based binding

IP+VLAN+MAC+Port binding

L2 to L7 ACL flow filtration mechanism on the 80 bytes of the head of user-defined packet

Port-based broadcast/multicast suppression and auto-shutdown risk port

URPF to prevent IP address counterfeit and attack

DHCP Option82 and PPPoE+ upload user’s physical location Plaintext authentication of OSPF, RIPv2 and BGPv4 packets and MD5

cryptograph authentication





Q1. ZISA product the quality of products.
A: As the top class total solution provider and productive service provider, we provide high quality of service to Tier1 Telco customer and Vendors. With the genius design and software customization expertise, we can leverage the best service to our customers. ZISA Product quality is same as Huawei and ZTE, and ZISA has complete product line.

Flexible , Smart and selective producing system, the top manufacture in vertical career choose our team, with decade of global market and professional experience.


Q2. ZISA after-sales service.
A:ZISA has complete software and hardware research and development. Provide reqiurment development, bug modify and 24h on-line support. For significant customers, ZISA can send technician to support.

Q3. Ways of cooperation with ZISA.
A :ZISA welcome integrator or agent to agent ZISA product. If agent has enough advantages in the market, ZISA appoint you ZISA sole agent.

Q4. About factory visit.
A :ZISA welcome significant customers to visit ZISA factory. Please make an appointment in two weeks.

Q5. About product pricing.
A :ZISA only publish sample price. The price of different agent and OEM customer is secret. ZISA gives specific price for significant projects and customers. Besides, ZISA only provide goods to agent in agent area.
