| Place of Origin: | CHINA |
|---|---|
| Brand Name: | ZISA |
| Certification: | CE |
| Model Number: | OP1608 |
| Minimum Order Quantity: | 1 |
| Price: | 1895-2000usd |
| Packaging Details: | 440mm×345mm× 44mm(W * D *H) 6.0KG |
| Delivery Time: | 1week |
| Payment Terms: | T/T |
| Supply Ability: | 1000pcs |
| Product Name: | 8 Ports Olt Pon | Power Supply: | AC 100 To 240 V AC ; DC 36V-75V |
|---|---|---|---|
| Pon Port: | 8 Gpon +2 10G Uplink | Operating Temperature: | Temperature 1 To 45°C, Rel. Humidity 20–90% (non-condensing) |
| Management Mode: | Command-line Interface（CLI）, Console, Telnet And WEB Configuration | Color: | Blue |
| Storage Temperature: | Temperature -10 To 70°C, Rel. Humidity 10–90% (non-condensing) | Oem/odm: | Yes |
| High Light: | 1U GPON OLT SFP,10G GPON OLT SFP |
||

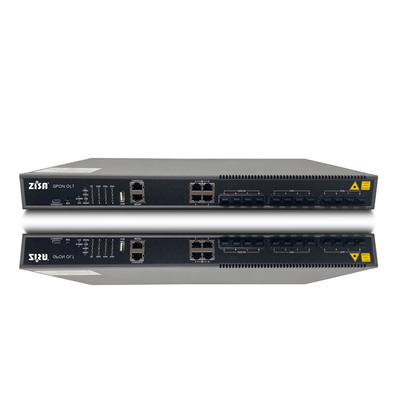

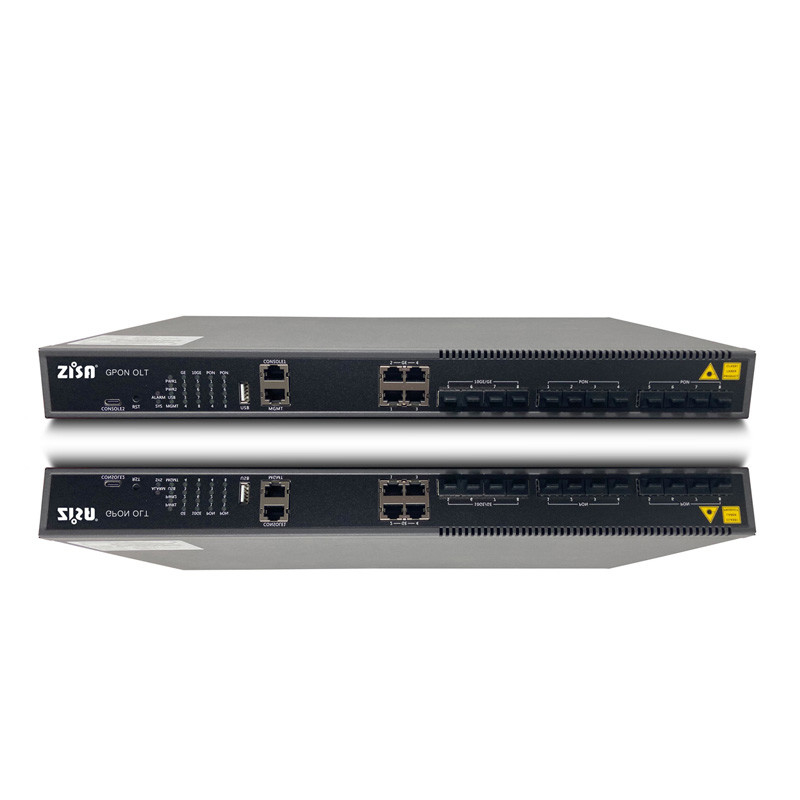

gpon olt device Optical Line Termination 1U OP1608 2 Uplink 10G SFP+ Ports Enterprise
ZISA OP1608 cassette OLT provides 4 downstream GPON ports, 8 uplink GE optical port and 8 GE electrical ports, with an expansion slot, which can access 2 10GE SFP+ ports. The 1U height can be easy installed and maintained to save space. The OP4500-08P adopts the industrial advanced technology, with powerful Ethernet services and QoS feature, supporting SLA and DBA. The splitting ratio up to 1:128, supporting different types of ONU in different networks, minimizing operators' investments
Specification
|
|
|
| Switching capacity | 102Gbps |
| Throughput (IPv4/IPv6) | 75.88MPPS |
| Ports | 4*PON port,8*GE FX+8*GE TX,2*10GE SFP+ |
| Power redundancy | Dual power supply. Can be double AC, double DC or AC+DC |
| Power supply |
AC:Input 100～240V,47～63Hz； DC:Input -36V～-75V； |
| Power consumption | ≤85W |
|
Outline dimensions (mm) (W*D*H) |
440mm×44mm×380mm |
| Weight (in maximum configuration) | ≤3kg |
|
Environmental requirements |
Working temperature:-15°C～55°C Storage temperature:-40°C～70°C Relative humidity:10%～90%,no condensing |
Features
|
|
OP1608 series | |
|
PON features
|
GPON |
Satisfy ITU -T standard TR-101 compliant solution for FTTx OLT applications High splitter rate, each PON port supports 32*ONU ,96*T-CONT Maximum transmission distance of 20KM Support uplink FEC, downlink FEC(Forward Error Correction) ONU identifier authentication :SN /SN+PASSWD Bandwidth allocation mechanism 5 types of T-CONT bandwidth Static Bandwidth Allocation Dynamic Bandwidth Allocation GPON feature parameter 4096 port-IDs per GPON MAC (Downstream and Upstream) 1024 Alloc -IDs per GPON MAC (Upstream ) |
| L2 features | MAC |
MAC Black Hole Port MAC Limit |
| VLAN |
4K VLAN entries Port-based/MAC-based/IP subnet-based VLAN Port-based QinQ and Selective QinQ (StackVLAN) VLAN Swap and VLAN Remark and VLAN Translate GVRP Based on ONU service flow VLAN add, delete, replace |
|
| Spanning tree protocol |
IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol instances (MSTP) |
|
| Port |
Bi-directional bandwidth control Static link aggregation and LACP(Link Aggregation Control Protocol) Port mirroring and traffic mirroring |
|
