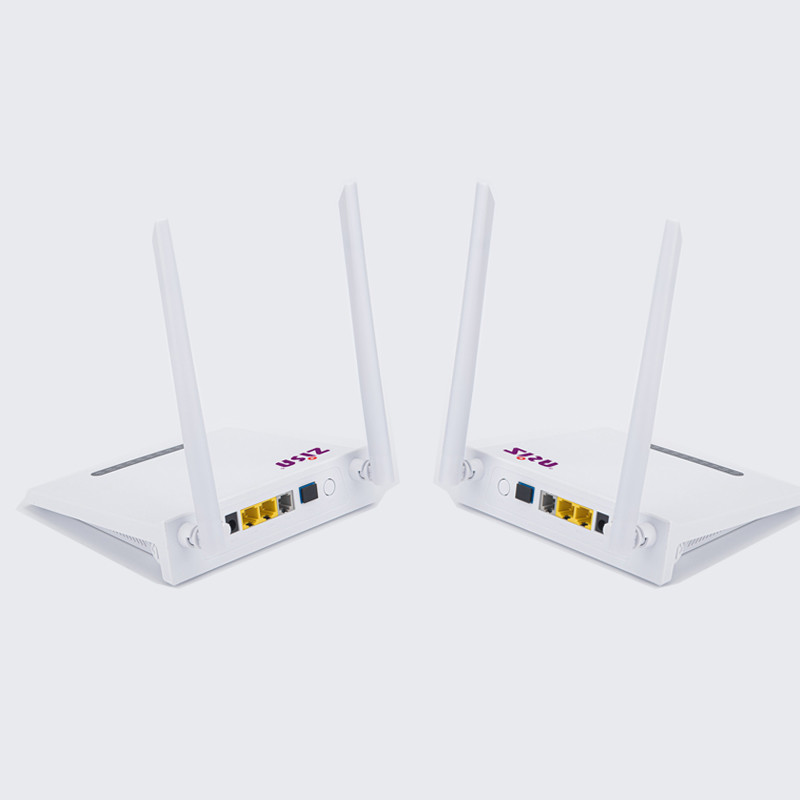

OP153W ONU GPON Optical Network Terminal 1GE+1FE WIFI+POTS OLT Port Gepon

Basic Information
Place of Origin: CHINA
Brand Name: ZISA
Certification: CE
Model Number: OP153W
Minimum Order Quantity: 1
Price: 42-46USD
Packaging Details: box 0.5kg
Delivery Time: 5-8weeks
Payment Terms: T/T
Supply Ability: 10000PCS
Detail Information
Name: Fiber ONU 1GE+1FE WIFI+POTS Uplink: GPON
Warranty: 1 YEAR Power Supply: 12V 1A
Certification: CE Weight: 0.5kg
High Light:






Product Description

OP153W Gpon Optical Network Terminal 1GE+1FE WIFI+POTS OLT Port Gepon




The XPON OP153 ONT 1GE+1FE+1POTS+WIFI is an ITU-T G.984.x based and IEEE 802.3ah based XPON HYBRID ONU that supports 2.5G downstream and 1.25G upstream bandwidth for GPON and supports 1.25G downstream and 1.25G upstream bandwidth for GEPON. It supports Dual Mode (GEPON and GPON), can access GEPON/GPON OLTs. It offers 1* SC/APC or SC/UPC GEPON/GPON port and 1*Gigabit, 1*100Mbps and 1*FXS port as well as a 300Mbps Wi-Fi Router for wired and wireless Internet connections. It supports full Home Gateway features, such as Multiple WAN connections, VLAN, QoS, etc. It is a cost-effective Wi-Fi GPON ONT/GEPON ONU for Fiber to The Home deployments.


Applications Diagram


  • ITU-T G.984.x GPON standard
  • IEEE 802.3ah GEPON standard
  • Offers 1*SC/APC or SC/UPC GPON WAN port
  • Support 1.25G upstream and 2.5G downstream
  • Offers1*SC/APC or SC/UPC GEPON WAN port,
  • Support 1.25G upstream and1.25G downstream
  • Offers 1GE + 1FE LAN ports can be configured in both Route or Bridge modes
  • Offers 1*FXS port for high quality Voice over IP deploy
  • Offers 300Mbps Wi-Fi Router features
  • Max 1:128 Fiber ratio for GPON, max transmission distance can reach 20km
  • Max 1:64 Fiber ratio for GEPON, max transmission distance can reach 20km
  • Multiple WAN connections, offers different services on different LAN ports
  • Support AES 128-bit encrypted and key switching, enhancing transmission security
  • Support 8 Tconts and 32 GEM port IDs, enabling multiple services on a single subscriber CPE


  • Support FEC (Forward Error Correction), ensures high reliable and precise data transmission
  • Support Rich layer 2 Management features, applicable to the biggest ISP networks
  • Support FBA (Flexible Bandwidth Assignation), dynamic assign bandwidth automatically
  • Support Dynamic Bandwidth Allocation (DBA), Smarter bandwidth assignment and usage
  • High security, data encrypted at upstream and downstream directions
  • Support L2 Switching features, such as IEEE802.1Q VLAN, 802.1P QoS, etc.
  • Support OMCI and TR069 Management, manage subscribers remotely
  • Supports IPv4 and IPv6, highly applicable in both IP type based networks


Technical Parameters


GPON Parameters

ITU-T G.984.x GPON, built-in with a -30dBm BOSA

SC/UPC or SC/APC connector

1310nm upstream & 1490nm downstream

Support G.984.1 General Characteristics

Support G.984.2 Physical Media Dependent (PMD) layer Specification Support G.984.3 Transmission convergence layer Specification Support G.988 OMCI protocol

GPON transceiver transmitting power: 0.5-5dBm

Optical receiving sensitivity: -30dBm

Transmission wavelength: Upstream: 1310nm / Downstream: 1490nm Support 1:128 Fiber Ratio at 20km transmission distance.

Fiber Transmission cable: G.652 Single mode optical fiber cable Configurable AES decryption on downstream payload.

Configurable FEC on both upstream and downstream payloads. Multi-Application Processor queues for dedicated connections for in-band.

Enhanced GPON debug and diagnostic functions.

Support up to 8 Transmission Container (T-Cons), 32 GEM port IDs Support NSR/SR Dynamic Bandwidth Allocation (DBA)

Support Forward Error Correction (FEC) Maximum 2.5 Gbps Downlink/1.25 Gbps Uplink Support Dying Gasp


Home Gateway/CPE Features

Multi-WAN, support up to 8 WAN connections Support Route and/or Bridged WAN

Port Binding, Data/VoIP/IPTV services can be bound to different LAN ports

Configurable VLAN ID for each WAN Configurable QoS queues for each WAN Multi-services bound to the same WAN




Networking Features

MAC Learning, 1K MAC address table Bridged or Route network mode Support RIP v1, v2 for routing

Static Route, Dynamic Route, DNS Proxy,


IEEE802.1Q VLAN, port VLAN

IEEE802.1x, MAC, IP, or TCP/UDP based ACLs

port Bandwidth Control, IEEE802.3x flow control Storm Control: Broadcast/Multicast/unknown unicast, ARP

Port Isolation, port Mirror, Auto MDI/MDIX IEEE802.1d STP, Port Loop detection

IGMP v2, v3 & IGMP Snooping for IPv4 MLD v2, v3 & MLD Snooping for IPv6




SP, WRR, SP+WRR dispatching Algorithm Source & DST-MAC based QoS

VLAN ID, VLAN Priority based QoS Source DST-IP based QoS


GEPON Parameters

IEEE 802.3ah GEPON standard, support standard OAM CTC 2.1, 3.0 China Telecom GEPON standard

Built-in with a BOSA, SC/UPC or SC/APC connector

1310nm wavelength at upstream & 1490nm wavelength at downstream GEPON transceiver transmitting power: 0.5-5dBm,

Optical receiving sensitivity:-28dBm

1:64 Fiber Ratio at 20km transmission distance.

Fiber Transmission cable: G.652 Single mode optical fiber cable Support 1 LLID (Logical Link Identifier)

Support 1 LOID (Logical ONU Identifier) Support Triple Churning Encryption algorithm

Support NSR/SR Dynamic Bandwidth Allocation (DBA) Support Forward Error Correction (FEC)

4 QoS queues & SP Dispatching Algorithm over PON Maximum 1.25Gbps Downlink / 1.25Gbps Uplink Support Dying Gasp


300Mbps Wi-Fi Router Features

Offers an IEEE802.11n Wi-Fi Router

2.4GHz frequency 2 LAN ports, 1GE and 1FE port

MIMO, support 2-IN-2-OUT, Max 300Mbps Wi-Fi throughput

Wi-Fi Transmission Distance: 150m for indoors, 300m for outdoors WPS one-key protection over your Wi-Fi network

Support DHCP, Static IP and PPPoE

DHCP Server, DHCP Relay, DHCP Client, Static IP assignation Static Routing from source IP to destination IP

Firewall, NAT, NAPT, UPnP

DDNS, DMZ Host, port Forwarding

64/128 bit WEP, IEEE802.1x, WPA and WPA2 authentications Max 4 SSID broadcasting, Hidden SSID

Automatically choose the best signal channel

STA mutual isolation and ACL table based on MAC Accesses Wi-Fi Multimedia (WMM), enhanced QoS for multimedia packets


Hardware parameters

Built on a powerful GPON/GEPON SoC, 950MHz

CPU covered with cooling unit. Support Hardware NAT.

come with a 512Mb 16-bit DDR3 SDRAM,

come with a 1Gb Nand Flash

1*GPON/GEPON SC /APC or SC/UPC port, 2.5G/1.25G downstream, 1.25G Upstream

1GE + 1FE ports

300Mbps Wi-Fi router,

2*5dBi external antennas

1 *FXS port, support analog phones.

IEEE802.3x flow control Full duplex and half duplex, LED Lights: Power, PON, LOS, INTERNET, VoIP, GE, FE, Wi-Fi, WPS

External power supply, DC 12V, 0.5A-1A

4KV Surge protection

Desktop and wall mount design, plastic housing


VoIP Parameters

Offers 1* FXS port for Phone connections

SIP V1, V2 (RFC3261, RFC3262, RFC3264, RFC3265)

SIP & H.248, support registering 2 SIP accounts G.711, G.723.1, G.729A-8kbps, G.726, G.722, ILBC

voice codes

DTMF Tone Detection, DTMF Tone Relay, Multiple Calling Tone, FSK Caller ID Calling line Identification Presentation Calling line Identification Restriction

Call forwarding, call transfer, call hold, three-way conference, etc.

QoS and TOS to ensure voice packets pass through in priority

Support RFC62 Echo protocol, Support Digital Map configuration


Management Features

Serial interface maintenance using UART Web UI Management

OMCI & NMS Management

CLI command line management FTP/TFTP/HTTP Auto Provision Management TR069 ACS management


Specification Table


IEEE 802.3, IEEE 802.3u, IEEE802.3ab, IEEE802.3ah, IEEE 802.3x, IEEE802.1Q, IEEE802.1P,

IEEE802.1D, IEEE802.11b/g/n, ITU-T G.984.1, ITU-T G.984.2, ITU-T G.984.3, ITU-T G984.4

Topology Star Topology
Uplink port 1 GPON/GEPON Uplink port, SC/UPC or SC/APC Connector
G/EPON Transmission Distance Up to 20km

Downlink port


1*10/100/1000Base-Tx Gigabit LAN

1* 10/100Base-Tx Fast Ethernet port

VoIP port 1 *FXS port
Wi-Fi IEEE802.11b/g/n 300Mbps Wi-Fi Router
LED Indicators Power, PON, LOS, INTERNET, VoIP, GE, FE, Wi-Fi, WPS


Ethernet Cable

10Base-Tx: UTP category 3, 4,5, up to 100m

100Base-Tx: UTP category 5, up to 100m

1000Base-Tx: UTP category 5, 5E, 6, up to 100m

Fiber Cable 8.3μm, 8.7μm, 9μm and 10μm single mode fiber cable
Power Supply AC 100-240V, DC 12V, 0.5A- 1A, External Power Supply, 4KV Surge Protection


Temperature Humidity

  Temperature Humidity
Working 0℃ - 45℃ 10% - 90%
Standby -40℃ - 70℃ 5% - 90% RH
