|Product Name:||ZISA 1GE+3FE+WIFI Gpon ONU||Application:||FTTH|
|Warranty:||1 YEAR||Power Supply:||12V 1A|
Fiber Optic onu 1GE,
Fiber Optic onu 3FE,
GPON OLT WIFI

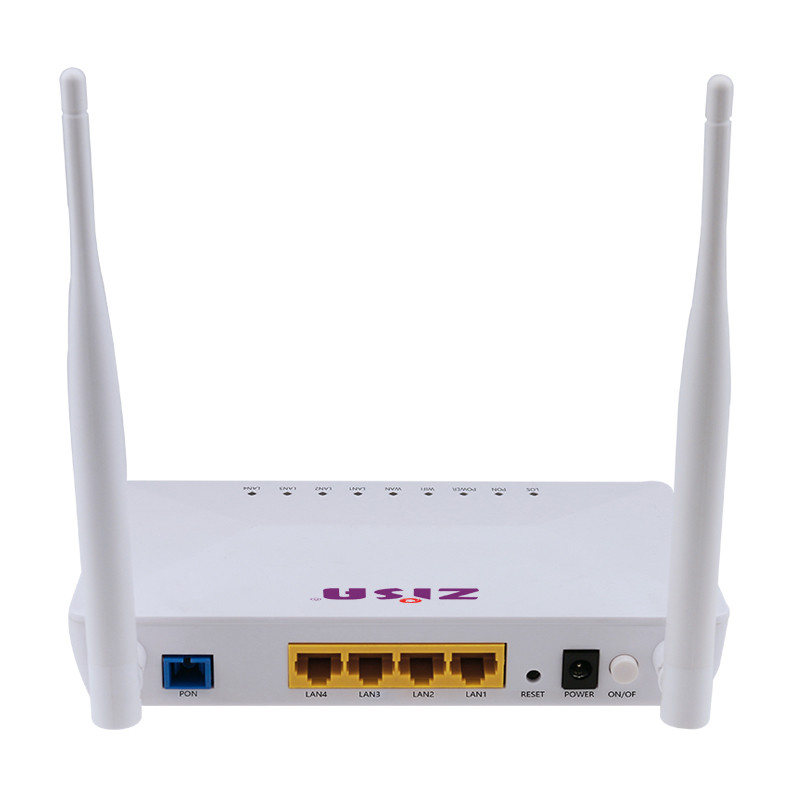

ZISA OP256W Fiber Optic onu Manufacturer/ GPON OLT gpon splitter FTTH solution
By introducing latest fiber GPON access technology, The ZISA OP256W WIFI GPON ONU brings carrier class high-end networking solution for advanced triple play services. It compliant with ITU-T G.984 standard, wireless for combined connection speeds of up to 300 Mbps on 802.11n 2.4 GHz, Layer 2/3, OP256W GPON ONU support the comprehensive triple-play services, including data, video (IPTV or VoD), and high-speed internet access service.
|Rate||Upsteam: 1.244Gbps Downsteam:2.488Gbps|
|Interface standard||ITU-T G.984.2/ITU-T G.984.3/ITU-TG.988 Class B+|
|Launch power||Min: 0dBm Max: +5dBm|
|Input Power Overload||-8 dBm|
|GPON Interface||1 GPON Port|
|Data Interface||1 GE +3 FE|
|WIFI Interface||IEEE 802.11 n/g/b wireless LAN|
|Antenna Type||2 external antennas|
|Power Supply and Consumption|
|Power Adaptor||Input: 100 to 240 V AC, 50/60 Hz; Output: 12 V, 0.5A|
|Storage||temperature -20 to 70°C, rel. humidity 10–90% (non-condensing)|
|Operation||temperature 0 to 45°C, rel. humidity 10–90% (non-condensing)|
Software Feature Support on OP256W
|GPON Feature||Compliant with ITU-T G.984 GPON standard|
|FEC (Forward Error Correction) in both upstream and downstream|
|QoS scheduling based on SP or WRR between GEM port and T-CONT|
|Downstream multicast GEM port and broadcast GEM port|
|Ethernet Feature||Support Auto-speed and MDI/MDIX auto detection|
|Internal L2 switch|
|Advanced data processing function,Such as VLAN label processing, flowclassification|
|Gateway Feature||WAN support Routerand Bridge mode|
|Router mode supportsPPPoE/DHCP/ static IP|
|WAN support Internet,VoIP,IPTV,TR069|
|LAN supports DHCP and static IP|
|Support NAT and NAPT|
|WIFI Feature||300 Mbps on 2.4 GHz|
|IEEE 802.11 ac/n/g/b wireless LAN|
|2.4 GHz band: 2400 - 2483.5 MHz|
|WEP,WPA-PSK,WPA2-PSK and other encryption|
|OAM Feature||Standard OMCI (the embedded operations channel)compliant with ITU-T G.988|
|Compliant with TR-069 standard|
|Compliant with TR-098,TR-140 terminal integrated management interface|
|Alarm reporting, performance monitoring|
|OP256W||GPON ONU 1GE+3FE+11n 2*2 , 2 x External Antennas 5DBI|
Q1. ZISA product the quality of products.
A: As the top class total solution provider and productive service provider, we provide high quality of service to Tier1 Telco customer and Vendors. With the genius design and software customization expertise, we can leverage the best service to our customers. ZISA Product quality is same as Huawei and ZTE, and ZISA has complete product line.
Flexible , Smart and selective producing system, the top manufacture in vertical career choose our team, with decade of global market and professional experience.
Q2. ZISA after-sales service.
A:ZISA has complete software and hardware research and development. Provide reqiurment development, bug modify and 24h on-line support. For significant customers, ZISA can send technician to support.
Q3. Ways of cooperation with ZISA.
A :ZISA welcome integrator or agent to agent ZISA product. If agent has enough advantages in the market, ZISA appoint you ZISA sole agent.
Q4. About factory visit.
A :ZISA welcome significant customers to visit ZISA factory. Please make an appointment in two weeks.
Q5. About product pricing.
A :ZISA only publish sample price. The price of different agent and OEM customer is secret. ZISA gives specific price for significant projects and customers. Besides, ZISA only provide goods to agent in agent area.
