| Place of Origin: | CHINA |
|---|---|
| Brand Name: | ZISA |
| Certification: | CE |
| Model Number: | OP151 |
| Minimum Order Quantity: | 1 |
| Price: | 18-22USD |
| Packaging Details: | box 0.5kg |
| Delivery Time: | 5-8weeks |
| Payment Terms: | T/T |
| Supply Ability: | 10000PCS |
| Name: | 1GE Xpon ONU | OEM: | Can Do |
|---|---|---|---|
| Power Consumption: | 4W | Type: | GPON ONU |
| Warranty: | 1 YEAR | Power Supply: | 12V 1A |
| Certification: | CE | Weight: | 0.2kg |
| High Light: | GPON ONU OP151,XPON EPON GPON ONU,1GE Fiberhome GPON ONU |
||

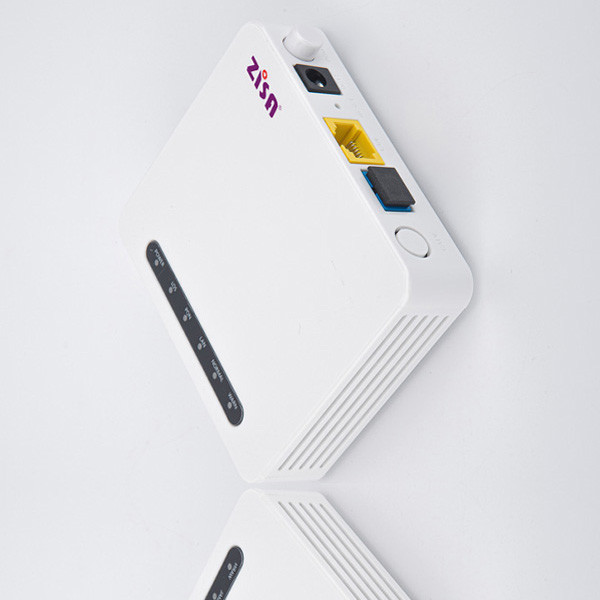

1GE XPON EPON GPON ONU Network Device OP151 ITU-T G.984 gpon device
Description
OP150 Series GPON ONT is a new terminal level GPON ONT, which is a variety of FTTB FTTH FTTO accessing ONT published by ZISA for carrier-grade FTTH network applications. It can support pure data, Data +Voice, Data+ Voice+ WIFI and many other service accessing type. OP150 Series ONT supports standard OMCI, can provide up to 1.25Gbps uplink and 2.5Gbps downlink high-speed transfer rate. It can fully meet carrier-grade FTTBFTTHFTTO equipment needs, working with our NGBN unified network management system.
Specifications
l 1*GPON uplink port
l 1*10/100/1000BASE-TX
l DC power switch
l 220VAC Input, 12V DC/0.5A Output
Performance
| Attributes |
OP151 |
||
| Power supply |
12V,0.5A |
||
|
Power consumption (full loaded) |
≤6W |
||
|
Outline dimensions (mm) (W*D*H) |
85mm*15mm*12mm |
||
| Weight (in maximum configuration) |
≤0.5kg |
||
|
Environmental
Requirements |
Working temperature:0ºC~50ºC Storage temperature:-40ºC~70ºC Working humidity:5%~90% Storage temperature:5%~95% no condensing |
||
| Ethernet |
Standard |
IEEE802.3 IEEE802.3au IEEE802.3x |
|
| Interface |
1 10/100/1000BASE-T RJ45 Auto negotiation Auto MDI/MDIX |
||
| GPON |
Speed |
Downlink:2.488Gbps Uplink:1.244Gbps |
|
| Connector |
SC/APC, pigtail |
||
| Standard |
ITU-T G.984.2 , Class B+ |
||
| Power level |
Downlink – Wavelength:1490nm – Sensitivity:-28dBm – Saturation:-8dBm Uplink – Wavelength:1310nm – TX power:0.5 ~ 5dBm
|
||
| Fiber |
G.652 Single Mode Fiber |
||
FAQ
Q1. ZISA product the quality of products.
A: As the top class total solution provider and productive service provider, we provide high quality of service to Tier1 Telco customer and Vendors. With the genius design and software customization expertise, we can leverage the best service to our customers. ZISA Product quality is same as Huawei and ZTE, and ZISA has complete product line.
Flexible , Smart and selective producing system, the top manufacture in vertical career choose our team, with decade of global market and professional experience.
Q2. ZISA after-sales service.
A: ZISA has complete software and hardware research and development. Provide reqiurment development, bug modify and 24h on-line support. For significant customers, ZISA can send technician to support.
Q3. Ways of cooperation with ZISA.
A : ZISA welcome integrator or agent to agent ZISA product. If agent has enough advantages in the market, ZISA appoint you ZISA sole agent.
Q4. About factory visit.
A : ZISA welcome significant customers to visit ZISA factory. Please make an appointment in two weeks.
Q5. About product pricing.
A : ZISA only publish sample price. The price of different agent and OEM customer is secret. ZISA gives specific price for significant projects and customers. Besides, ZISA only provide goods to agent in agent area.
