4 Wire 2 Pair G Shdsl Modem With 4 Port Ethernet 11m Bps

Basic Information
Place of Origin: CHINA
Brand Name: ZISA
Certification: CE
Model Number: G2500
Minimum Order Quantity: 1
Price: 145-240USD
Packaging Details: box 2kg
Delivery Time: 5-8weeks
Payment Terms: T/T
Supply Ability: 10000PCS
Detail Information
Product Name: G.shdsl.bis Modem Application: FTTH DSL
Color: Gray Type: SHDSL MODEM
Warranty: 1 YEAR Power Supply: 12V 1.5A
Certification: CE Port: 4lan Port + Dsl Port
High Light:

4 wire shdsl modem


4 port shdsl modem


11m bps modem shdsl

Product Description

4 wire 2 pair g shdsl router modem with 4 port ethernet 11M bps




G2100 series, G.SHDSL modem, transports multi mega bit stream over one or two pair of copper wires using TC-PAM technology. This modem supports multiple data rates ranging from 64 Kbps to 15Mbps (PAM128). It have Fast Ethernet 4 ports and 1 slot for install and choice of either V.35,Syndata interface or E1 interface or G.703 Co-directional 64K.interface .RS232 or FXO or FXS.


The G2100 series uses in-band Embedded Operation channel for controlling and monitoring the remote unit. The comprehensive diagnostics function developed includes G.SHDSL, E1 line performance monitoring, in-band local and remote loop backs and real time alarm report.


Local craft port, optional LCD display and SNMP management interface facilitate friendly configuration and diagnostics.


G2100N support dual bearer function which are used point to point application for getting maximum speed to 15M bps. G2100P support TDM function which are used dynamic transport at central office for getting maximum transmitting distance at 2M bps.




  • Meet ITU-T G.991.2 ETSI TS101 524.
  • Support data rate from 64Kbps to 15Mbps(PAM128) per 64Kbps increment in 2 wires
  • Feature modular V.35, E1 G.703, 64K Co-directional
  • Provide remote control and monitoring using in-band EOC channel.
  • Support DSL PRBS BER test.
  • Support local, remote loop back.
  • Perform G.SHDSL and E1 line performance monitoring.
  • Provide 96*15 minute and 7*24 hours performance data storage.
  • Detect and operate DSL loop crossover.
  • Support optional LCD display and SNMP management interface.,

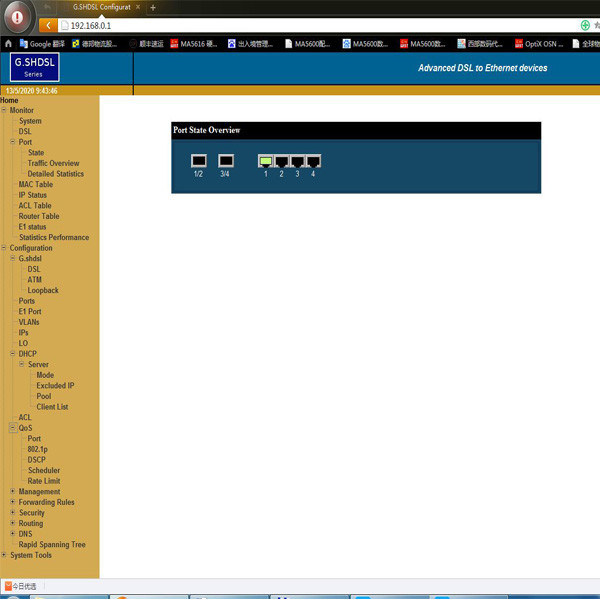

  • Support optional SNMP in-band management and Web GUI
  • Support remote download and configuration.
  • Support different DTE interface can work simultaneous by sharing the DSL bandwidth
  • Support G.bis data rate, 2 wires at 5.7M bis and 4 wires at 11.4M bis
  • Support G.SHDSL PAM 128 data rate up to 15Mbps in 2 wires




  • G.SHDSL line
Line Coding: 16 TC-PAM, 32 TC-PAM,128 TC-PAM is selectable
Line Rate: 192K bps ~ 57000 Kbps for one DSL loop.
  384K bps ~ 114000 Kbps for two DSL loops.
Protection: ITU-T K.20, K.21 and IEC60950
Standard: ITU-T G.991.2, Annex A (Default), Annex B
Impedance: 135Ù +/- 5 %
Connector: RJ45 x 1




Q1. ZISA product the quality of products.
A: As the top class total solution provider and productive service provider, we provide high quality of service to Tier1 Telco customer and Vendors. With the genius design and software customization expertise, we can leverage the best service to our customers. ZISA Product quality is same as Huawei and ZTE, and ZISA has complete product line.

Flexible , Smart and selective producing system, the top manufacture in vertical career choose our team, with decade of global market and professional experience.


Q2. ZISA after-sales service.
A:ZISA has complete software and hardware research and development. Provide reqiurment development, bug modify and 24h on-line support. For significant customers, ZISA can send technician to support.

Q3. Ways of cooperation with ZISA.
A :ZISA welcome integrator or agent to agent ZISA product. If agent has enough advantages in the market, ZISA appoint you ZISA sole agent.

Q4. About factory visit.
A :ZISA welcome significant customers to visit ZISA factory. Please make an appointment in two weeks.

Q5. About product pricing.
A :ZISA only publish sample price. The price of different agent and OEM customer is secret. ZISA gives specific price for significant projects and customers. Besides, ZISA only provide goods to agent in agent area.
