| Place of Origin: | CHINA |
|---|---|
| Brand Name: | ZISA |
| Certification: | CE |
| Model Number: | OP1604 |
| Minimum Order Quantity: | 1 |
| Price: | 1495-1520usd |
| Packaging Details: | 440mm×260mm× 44mm(W * D *H) 6.0KG |
| Delivery Time: | 1week |
| Payment Terms: | T/T |
| Supply Ability: | 1000pcs |
| Product Name: | 1U 4 Ports Gpon OLT | Power Supply: | AC 100 To 240 V AC ; DC 36V-75V |
|---|---|---|---|
| Storage Temperature: | Temperature -40 To 70°C, Rel. Humidity 10–95% (non-condensing) | Operating Temperature: | Temperature 10 To 45°C, Rel. Humidity 10–95% (non-condensing) |
| Pon Port: | 4 Gpon Port + 4 X RJ-45 + 4 X 10GE SFP+ | Management Mode: | Console, Telnet And WEB Configuration |
| Color: | Blue | Oem/odm: | Yes |
| High Light: | 1U Olt Fiber Optic,8 Port Olt Fiber Optic,1U Olt Optical Line Terminal |
||

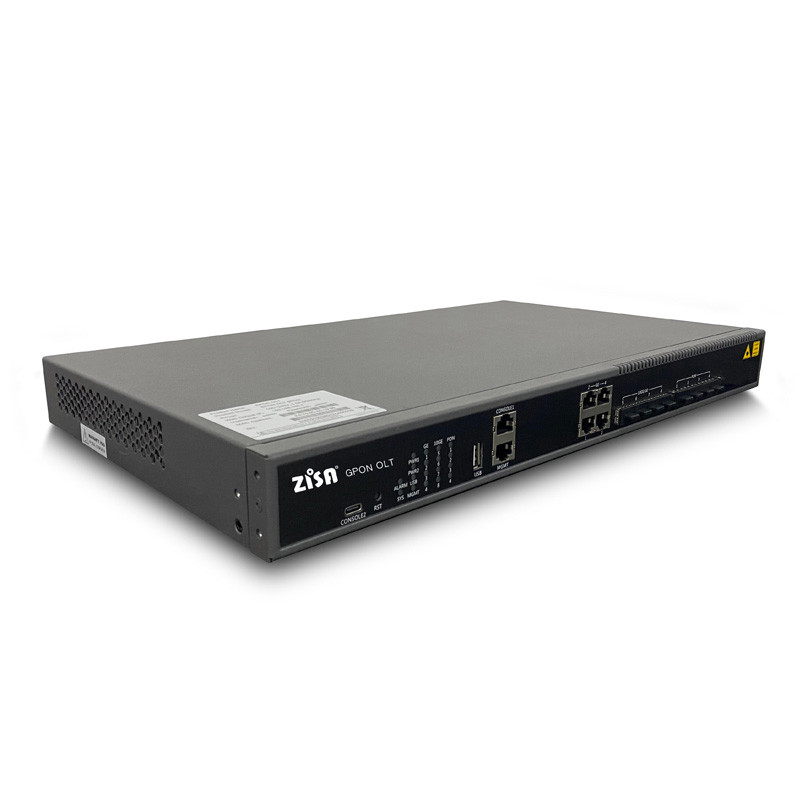

1U Cassette OLT 8 Port GPON OLT OP1604 Command Line Interface
Product Overview
ZISA OP1604 is highly integrated, medium-capacity GPON OLT for operators, ISPs, enterprises and park-applications. The product follows the ITU-T G.984/G.988 technical standard,The product has good openness, strong compatibility, high reliability, and complete software functions. It can be widely used in operators' FTTH access, VPN, government and enterprise park access, campus network access, ETC.
Main Feature
Hardware Feature
|
|
GPON OLT 4PON OP1604 |
| Exchange capacity | 104Gbps |
| Packet forwarding rate | 77.376Mpps |
| Memory and storage | memory:512MB, storage:32MB |
| Management port | Console, Type C |
| Port | 4*GPON Port,4*10/100/1000M Base-T,4*1000M Base-X SFP/4*10GE SFP+ |
| weight | ≤5kg |
| fan | Fixed fans(three fans) |
| power |
AC: 100～240V 47/63Hz； |
| Power consumption | 65W |
|
|
Software Feature
|
|
GPON OLT 4PON OP1604 |
| PON |
Comply with ITU-TG.984/G.988 standard |
| VLAN |
Support 4K VLAN |
| MAC |
16K Mac address |
| ring network protocol |
Support STP/RSTP/MSTP |
| port control |
Support two-way bandwidth control |
| Port aggregation |
Support static link aggregation |
| Mirroring |
Support port mirroring |
| ACL |
Support standard and extended ACL |
| QoS |
Support flow rate limiting function based on custom business flow |
Ordering Information
| Model | Product Description |
| OP1604 | 4*PON port, 4*10GE/GE SFP +4GE RJ45 uplink port, Dual power with optional |
FAQ
Q1. ZISA product the quality of products.
A: As the top class total solution provider and productive service provider, we provide high quality of service to Tier1 Telco customer and Vendors. With the genius design and software customization expertise, we can leverage the best service to our customers. ZISA Product quality is same as Huawei and ZTE, and ZISA has complete product line.
Flexible , Smart and selective producing system, the top manufacture in vertical career choose our team, with decade of global market and professional experience.
Q2. ZISA after-sales service.
A: ZISA has complete software and hardware research and development. Provide reqiurment development, bug modify and 24h on-line support. For significant customers, ZISA can send technician to support.
Q3. Ways of cooperation with ZISA.
A : ZISA welcome integrator or agent to agent ZISA product. If agent has enough advantages in the market, ZISA appoint you ZISA sole agent.
Q4. About factory visit.
A : ZISA welcome significant customers to visit ZISA factory. Please make an appointment in two weeks.
Q5. About product pricing.
A : ZISA only publish sample price. The price of different agent and OEM customer is secret. ZISA gives specific price for significant projects and customers. Besides, ZISA only provide goods to agent in agent area.
