| Place of Origin: | CHINA |
|---|---|
| Brand Name: | ZISA |
| Certification: | CE |
| Model Number: | OP1608 |
| Minimum Order Quantity: | 1 |
| Price: | 1800-1850usd |
| Packaging Details: | 440mm×260mm× 44mm(W * D *H) 6.0KG |
| Delivery Time: | 1week |
| Payment Terms: | T/T |
| Supply Ability: | 1000pcs |
| Product Name: | 1U 8 Ports Gpon OLT | Power Supply: | AC 100 To 240 V AC ; DC 36V-75V |
|---|---|---|---|
| Pon Port: | 8 Gpon Port + 4 X RJ-45 + 4 X 10GE SFP+ | Operating Temperature: | Temperature 0 To 45°C, Rel. Humidity 10–90% (non-condensing) |
| Management Mode: | Console, Telnet And WEB Configuration | Color: | Blue |
| Storage Temperature: | Temperature -10 To 70°C, Rel. Humidity 10–90% (non-condensing) | Oem/odm: | Yes |
| High Light: | AC 100v GPON OLT,CE GPON OLT,8 Port Olt Optical Line Terminal |
||

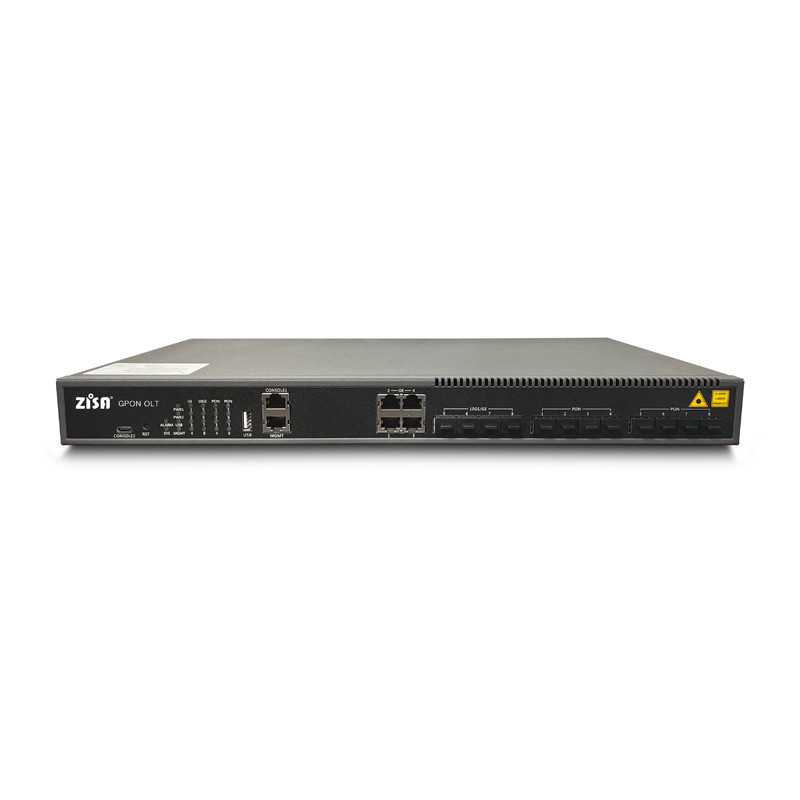

1U Cassette OLT 8 Port GPON OLT OP1608 Command Line Interface
Ordering Information
| Model | Product Description |
| OP1608 | 8*PON port, 4*10GE/GE SFP +4GERJ45 uplink port, Dual power with optional |
Main Feature
Hardware Feature
|
Attributes |
GPON OLT 8PON OP1608 |
| Exchange capacity | 104Gbps |
| Packet forwarding rate | 77.376Mpps |
| Memory and storage | memory:512MB, storage:32MB |
| Management port | Console, Type C |
| Port | 8*GPON Port,4*10/100/1000M Base-T,4*1000M Base-X SFP/4*10GE SFP+ |
Software Feature
|
Attributes |
GPON OLT 8PON OP1608 |
| PON |
Comply with ITU-TG.984/G.988 standard 60KM transmission distance 1:128 Max splitting ratio Standard OMCI management function Open to any brand of ONT ONU batch software upgrade |
| VLAN |
Support 4K VLAN Support VLAN based on port, MAC and protocol Support dual Tag VLAN, port-based static QINQ and Flexible QINQ |
| MAC |
16K Mac address Support static MAC address setting Support black hole MAC address filtering Support port MAC address limit |
| ring network protocol |
Support STP/RSTP/MSTP Support ERPS Ethernet ring network protection protocol Support Loopback-detection port loopback detection |
| port control |
Support two-way bandwidth control Support port storm suppression Support 9K Jumbo ultra-long frame forwarding |
| Layer 3 |
Support ARP learning and aging Support static route Support dynamic route RIP/OSPF/BGP/ISIS Support VRRP |
| System management |
CLI,Telnet,WEB,SNMP V1/V2/V3,SSH2.0 Support FTP,TFTP file upload and download Support RMON Support SNTP Support system work log Support LLDP neighbor device discovery protocol Support 802.3ah Ethernet OAM Support RFC 3164 Syslog Support Ping and Traceroute |
FAQ
Q1. ZISA product the quality of products.
A: As the top class total solution provider and productive service provider, we provide high quality of service to Tier1 Telco customer and Vendors. With the genius design and software customization expertise, we can leverage the best service to our customers. ZISA Product quality is same as Huawei and ZTE, and ZISA has complete product line.
Flexible , Smart and selective producing system, the top manufacture in vertical career choose our team, with decade of global market and professional experience.
Q2. ZISA after-sales service.
A: ZISA has complete software and hardware research and development. Provide reqiurment development, bug modify and 24h on-line support. For significant customers, ZISA can send technician to support.
Q3. Ways of cooperation with ZISA.
A : ZISA welcome integrator or agent to agent ZISA product. If agent has enough advantages in the market, ZISA appoint you ZISA sole agent.
Q4. About factory visit.
A : ZISA welcome significant customers to visit ZISA factory. Please make an appointment in two weeks.
Q5. About product pricing.
A : ZISA only publish sample price. The price of different agent and OEM customer is secret. ZISA gives specific price for significant projects and customers. Besides, ZISA only provide goods to agent in agent area.
