| Place of Origin: | CHINA |
|---|---|
| Brand Name: | ZISA |
| Certification: | CE |
| Model Number: | OP1616 |
| Minimum Order Quantity: | 1 |
| Price: | 3350-3420usd |
| Packaging Details: | 440mm×260mm× 44mm(W * D *H) 6.5KG |
| Delivery Time: | 1week |
| Payment Terms: | T/T |
| Supply Ability: | 1000pcs |
| Name: | 10G OLT | Operating Temperature: | Temperature 0 To 45°C, Rel. Humidity 10–90% (non-condensing) |
|---|---|---|---|
| Management Mode: | Command-line Interface（CLI）, Console, Telnet And WEB Configuration | Color: | Black |
| Storage Temperature: | Temperature -10 To 70°C, Rel. Humidity 10–90% (non-condensing) | Oem/odm: | Yes |
| Power Consumption: | 84W | Warranty: | 1 Year |
| High Light: | 16 Ports GPON SFP+,104MPPS GPON OLT,10G Up Link GPON OLT |
||

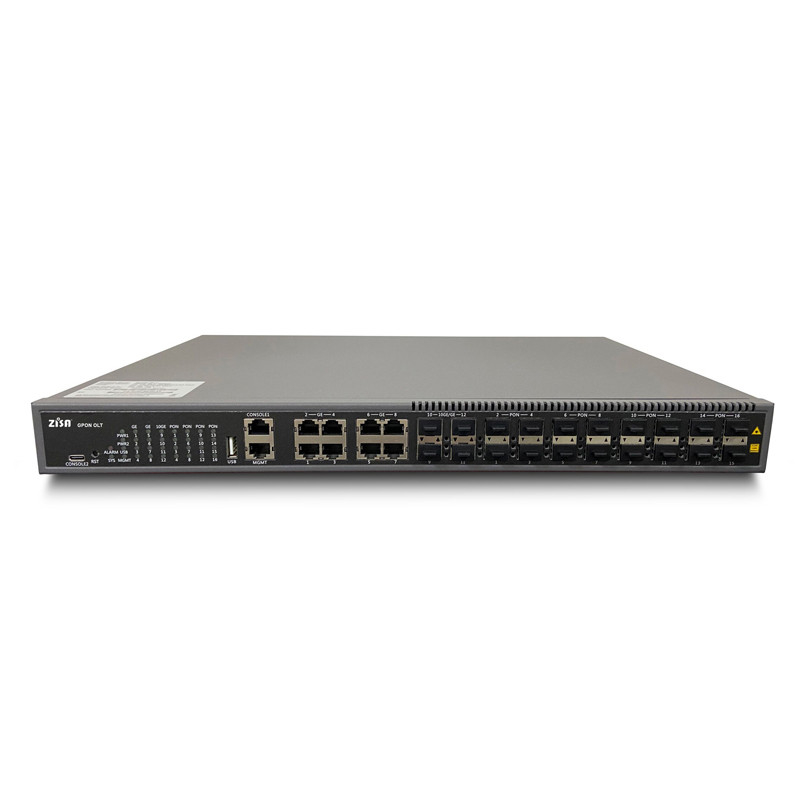

16 Ports Olt Optical 10G SFP+ OP1616 104MPPS 84W Uplink Support Cassette OLT
Product Overview
ZISA OP1616 is highly integrated, medium-capacity GPON OLT for operators, ISPs, enterprises and park-applications. The product follows the ITU-T G.984/G.988 technical standard,The product has good openness, strong compatibility, high reliability, and complete software functions. It can be widely used in operators' FTTH access, VPN, government and enterprise park access, campus network access, ETC.
ZISA OP1616 is only 1U in height, easy to install and maintain, and save space. Supports mixed networking of different types of ONU, which can save a lot of costs for operators.
Main Feature
Hardware Feature
|
|
GPON OLT 16PON OP1616 |
| Exchange capacity | 104Gbps |
| Packet forwarding rate | 77.376Mpps |
| Memory and storage | memory:512MB, storage:32MB |
| Management port | Console, Type C |
| Port | 16*GPON Port,4*10/100/1000M Base-T,4*1000M Base-X SFP/4*10GE SFP+ |
| weight | ≤5kg |
| fan | Fixed fans(three fans) |
| power |
AC: 100～240V 47/63Hz； DC: 36V～75V； |
| Power consumption | 65W |
|
Dimensions (Width * height * depth) |
440mm*44mm*260mm |
| Environment temperature |
Working Temperature:-10℃～55℃ Storge temperature:-40℃～70℃ |
| environment friendly | China ROHS,,EEE |
| environment humidity |
Operating humidity: 10%～95% (non-condensing) Storage humidity: 10%～95% (non-condensing) |
Software Feature
|
|
GPON OLT 16PON OP1616 |
| PON |
Comply with ITU-TG.984/G.988 standard 60KM transmission distance 1:128 Max splitting ratio Standard OMCI management function Open to any brand of ONT ONU batch software upgrade |
| VLAN |
Support 4K VLAN Support VLAN based on port, MAC and protocol Support dual Tag VLAN, port-based static QINQ and Flexible QINQ |
| MAC |
16K Mac address Support static MAC address setting Support black hole MAC address filtering Support port MAC address limit |
| ring network protocol |
Support STP/RSTP/MSTP Support ERPS Ethernet ring network protection protocol Support Loopback-detection port loopback detection |
| port control |
Support two-way bandwidth control Support port storm suppression Support 9K Jumbo ultra-long frame forwarding |
| Port aggregation |
Support static link aggregation Support dynamic LACP Each aggregation group supports a maximum of 8 ports |
| Mirroring |
Support port mirroring Support stream mirroring |
| ACL |
Support standard and extended ACL Support ACL policy based on time period Provide flow classification and flow definition based on IP header information such as source/destination MAC address, VLAN, 802.1p, TOS, DSCP, source/destination IP address, L4 port number, protocol type, etc. |
| QoS |
Support flow rate limiting function based on custom business flow Supports mirroring and redirection functions based on custom business flows Support priority marking based on custom service flow, support 802.1P, DSCP priority Remark capability Support port-based priority scheduling function, support queue scheduling algorithms such as SP/WRR/SP+WRR |
| Safety |
Support user hierarchical management and password protection Support IEEE 802.1X authentication Support Radius TAC ACS+ authentication Support MAC address learning limit, support black hole MAC function Support port isolation Support broadcast message rate suppression Support IP Source Guard Support ARP flood suppression and ARP spoofing protection Support DOS attack and virus attack protection |
| Layer 3 |
Support ARP learning and aging Support static route Support dynamic route RIP/OSPF/BGP/ISIS Support VRRP |
| System management |
CLI,Telnet,WEB,SNMP V1/V2/V3,SSH2.0 Support FTP,TFTP file upload and download Support RMON Support SNTP Support system work log Support LLDP neighbor device discovery protocol Support 802.3ah Ethernet OAM Support RFC 3164 Syslog Support Ping and Traceroute |
Ordering Information
| Model | Product Description |
| OP1616 | 16*PON port, 4*10GE/GE SFP +4GERJ45 uplink port, Dual power with optional |
FAQ
Q1. ZISA product the quality of products.
A: As the top class total solution provider and productive service provider, we provide high quality of service to Tier1 Telco customer and Vendors. With the genius design and software customization expertise, we can leverage the best service to our customers. ZISA Product quality is same as Huawei and ZTE, and ZISA has complete product line.
Flexible , Smart and selective producing system, the top manufacture in vertical career choose our team, with decade of global market and professional experience.
Q2. ZISA after-sales service.
A:ZISA has complete software and hardware research and development. Provide reqiurment development, bug modify and 24h on-line support. For significant customers, ZISA can send technician to support.
Q3. Ways of cooperation with ZISA.
A :ZISA welcome integrator or agent to agent ZISA product. If agent has enough advantages in the market, ZISA appoint you ZISA sole agent.
Q4. About factory visit.
A :ZISA welcome significant customers to visit ZISA factory. Please make an appointment in two weeks.
Q5. About product pricing.
A :ZISA only publish sample price. The price of different agent and OEM customer is secret. ZISA gives specific price for significant projects and customers. Besides, ZISA only provide goods to agent in agent area.
