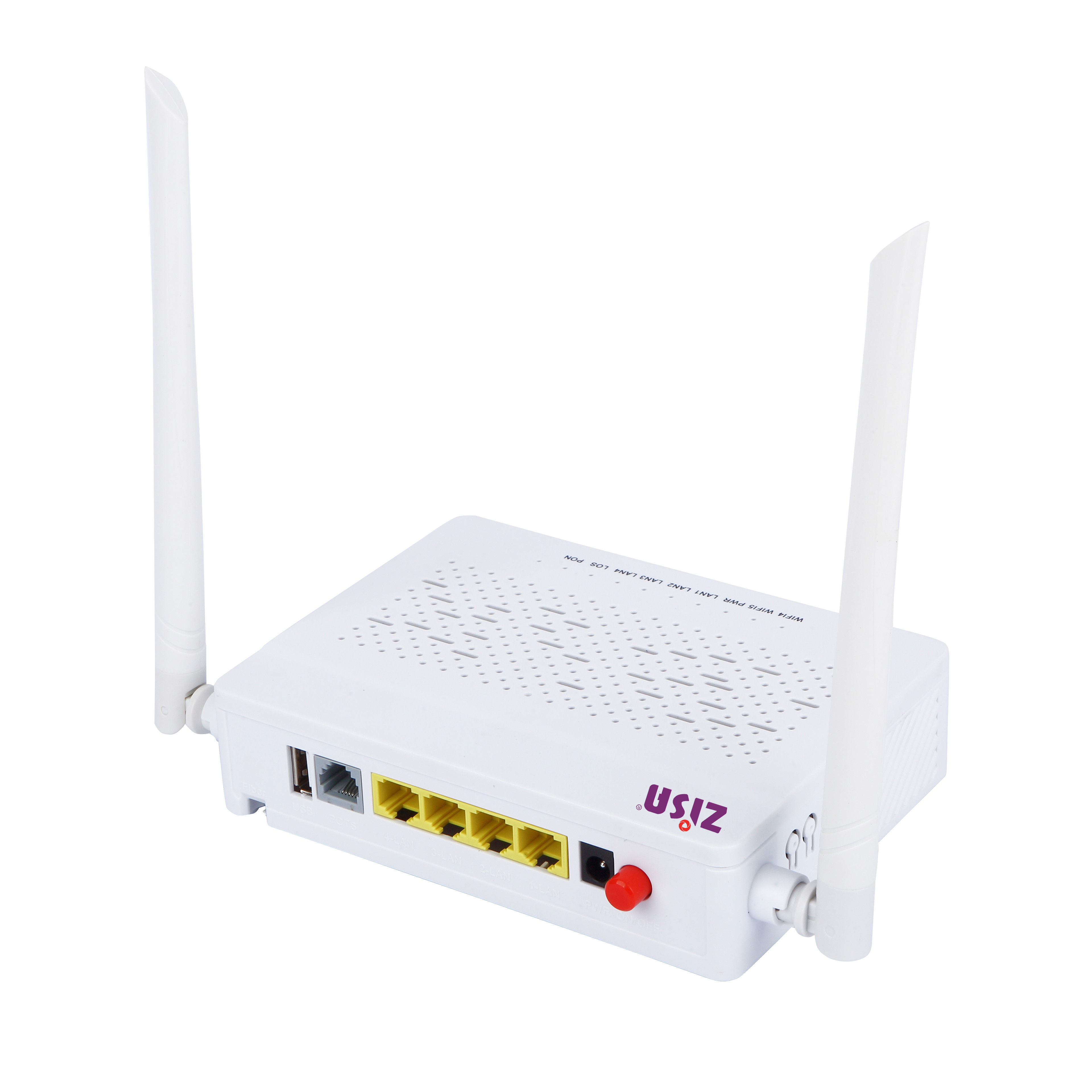

SC APC SC UPC Gpon Optical Network Terminal 4GE+11AC WIFI+POTS OLT Port Gepon

Basic Information
Place of Origin: CHINA
Brand Name: ZISA
Certification: CE
Model Number: OP156-AC
Minimum Order Quantity: 1
Price: 42-46USD
Packaging Details: box 0.5kg
Delivery Time: 5-8weeks
Payment Terms: T/T
Supply Ability: 10000PCS
Detail Information
Name: Fiber ONU 4GE+11AC WIFI+POTS Uplink: Pon
Port: SC/APC Or SC/UPC Type: ONU
Warranty: 1 YEAR Power Supply: 12V 1A
Certification: CE Weight: 0.5kg
High Light:

SC / APC Gpon Optical Network Terminal


4GE Gpon Optical Network Terminal


SC / UPC Gpon Terminal

Product Description

SC/APC/UPC 4GE+11AC WIFI+POTS GPON OLT Port Gepon Gpon Optical Network Terminal


Product Features


  • comply fully with ITU-G.984.1/2/3/4 standard and G.987.3 protocol
  • support downlink 2.488 Gbits/s rate and uplink 1.244 Gbits/s rate
  • support bidirectional FEC and RS(255,239) FEC CODEC
  • support 32 TCONT and 32 GEMPORT
  • support AES128 decryption function of G.984 standard
  • support SBA and DBA dynamically broadband allocation
  • support the PLOAM function of G.984 standard
  • support Dying-Gasp check and report
  • support synchronous Ethernet
  • good interworking with the OLT from different manufacturers,such as HuaWei ,ZTE,Cortina etc
  • down-link LAN ports: 4*10/100/1000M with auto-negotiation
  • support the rogue ONU alarm function
  • Support VLAN function
  • operation mode: HGU
  • support IEEE802.11b/g/n and IEEE802.11ac standard for WIFI
  • antennas gain: 5DBi with external
  • support: 300Mbps PHY rate IEEE802.11n, 866Mbps PHY rate IEEE802.11ac
  • support multiply SSID
  • Multiple encryption methods:WFA,WPA,WPA2,WAPI
  • one port for VOIP,support SIP protocol optional
  • comply fully with IEEE802.3ah standard and CTC-3.0 specification
  • one RF port for TV application

WIFI characteristics


Techfeatures Description
antenna 2T2R Mode;gain:5dBi
rate 300Mbps IEEE802.11n 866 Mbps IEEE802.11ac The number of channel :13 for wifi4;12 for wifi5
encryptionmethods WFA,WPA,WPA2,WAPI
Txpower 17dBm for 2.4GHz ;19dBm for5GHz
Rx sensitivity

WIFI4:-59dBm @ channel 11 MCS7;

WIFI5:-50dBm @ channel 155 AC80;

WPSfunction Support


VOIP Technical features


Techfeatures Description


Voltage andCurrentMonitoring

The continuously monitors the TIP,RING,and battery voltages and currents via anon-chipMonitorADC

Protocol : SIP;

Codec type selection :G722,G729,,G711A,G711U,






Packing list­


Name Quantity Unit
OP156-AC 1 pcs
supplypower 1 pcs
Manual&warrantycard 1 pcs
