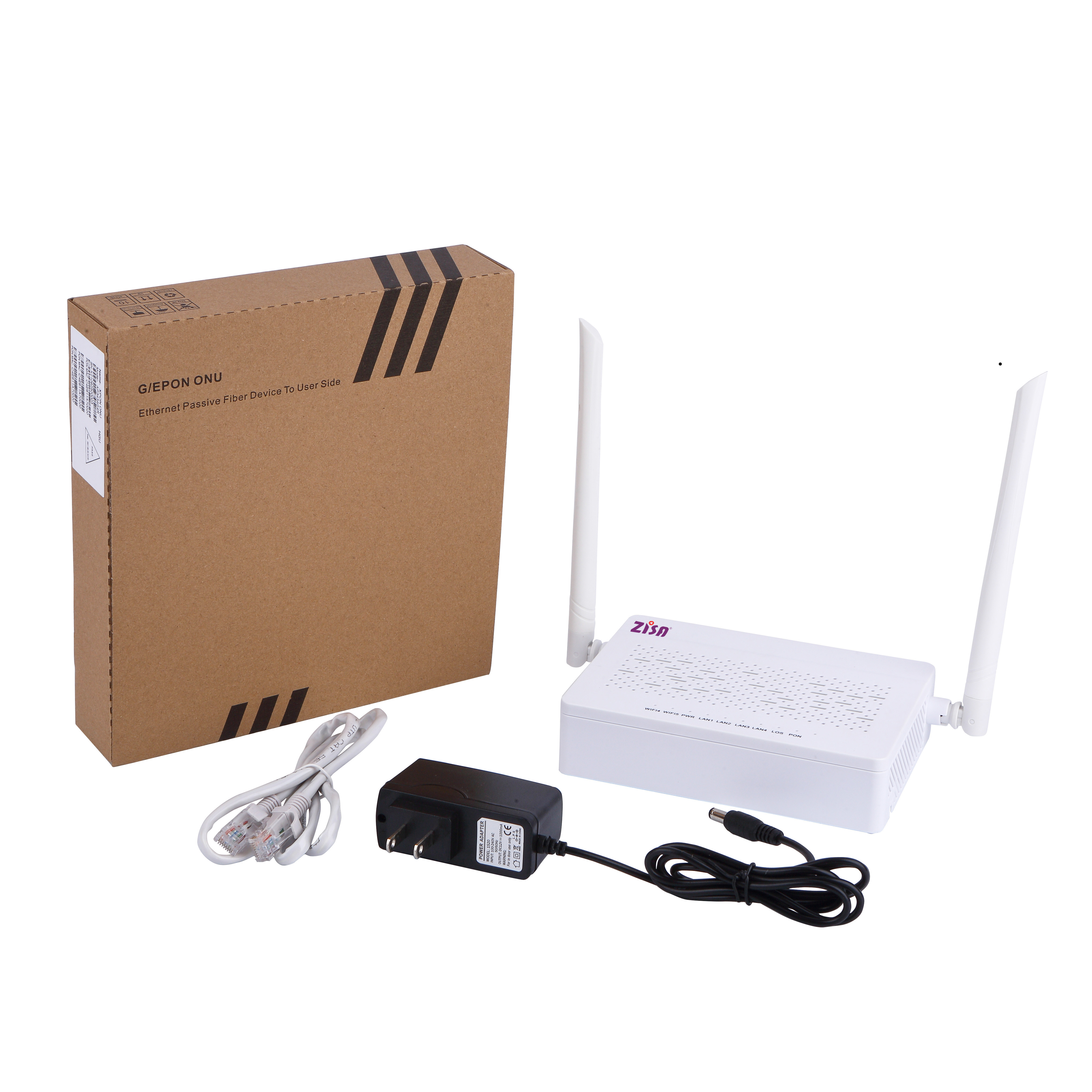

4GE + 11AC Ftth Gpon Epon Onu WIFI+POTS OP156-AC Fiber Optic Pots Solution

Basic Information
Place of Origin: CHINA
Brand Name: ZISA
Certification: CE
Model Number: OP156-AC
Minimum Order Quantity: 1
Price: 42-46USD
Packaging Details: box 0.5kg
Delivery Time: 5-8weeks
Payment Terms: T/T
Supply Ability: 10000PCS
Detail Information
Product Name: ZISA 4GE+11AC WIFI+POTS Gpon ONU Application: FTTH
Color: WHITE Type: ONU
Warranty: 1 YEAR Power Supply: 12V 1A
Certification: CE Weight: 0.5kg
High Light:

12V 1A Ftth Gpon Epon Onu


Fiber Optic Ftth Gpon Epon Onu


Fiberhome Gpon Onu 12V 1A

Product Description

4GE+11AC WIFI+POTS OP156-AC Fiber Optic pots onu Manufacturer FTTH solution


Product Overview


OP156-AC supports WIFI4 (IEEE802.11b/g/n) and WIFI5 (IEEE802.11ac) concurrently ,a WEB system provided simplifies the configuration of the WIFI and connects to INTERNET conveniently for users.

OP156-AC supports the G/E PON switching function automatically

OP156-AC supports a RJ11 interface for VOIP applications application and one RF signal for TV.


Product Features


  • good interworking with the OLT from different manufacturers,such as HuaWei ,ZTE,Cortina etc
  • down-link LAN ports: 4*10/100/1000M with auto-negotiation
  • support the rogue ONU alarm function
  • Support VLAN function
  • operation mode: HGU
  • support IEEE802.11b/g/n and IEEE802.11ac standard for WIFI
  • antennas gain: 5DBi with external
  • support: 300Mbps PHY rate IEEE802.11n, 866Mbps PHY rate IEEE802.11ac
  • support multiply SSID
  • Multiple encryption methods:WFA,WPA,WPA2,WAPI
  • one port for VOIP,support SIP protocol optional
  • comply fully with IEEE802.3ah standard and CTC-3.0 specification
  • one RF port for TV application


Basic Characteristics


Techparameters Description


Up-link interface

(XPON use the GPON spec)

1 GPON interface,SC single mode single fiber RX 2.488 Gbits/s rate and TX 1.244 Gbits/s rate Fiber type:SC/APC

Optical power:0~4 dBm Sensitivity:-28 dBm

safety: ONU authentication mechanism

Wavelength(nm) TX 1310nm,RX1490nm
Fiberconnector SC/UPC or SC/APCconnector
Down-linkdatainterface 4*10/100/1000M auto-negotiationEthernetinterface, RJ45interface
IndicatorLED 10pcs,refertoNO.6definitionofindicatorLED
DC supplyinterface input+12V 1A,footprint:DC0005ø2.1MM
Power ≤7W
Operatingtemperature -5~+55℃
Humidity 10~85%(non-condensation)
Storagetemperature -30~+70℃
Dimension(MM) 185*125*32mm(mainframe)
Weight 0.5Kg(mainframe)


WIFI characteristics


Techfeatures Description
antenna 2T2R Mode;gain:5dBi
rate 300Mbps IEEE802.11n 866 Mbps IEEE802.11ac The number of channel :13 for wifi4;12 for wifi5
encryptionmethods WFA,WPA,WPA2,WAPI
Txpower 17dBm for 2.4GHz ;19dBm for5GHz
Rx sensitivity

WIFI4:-59dBm @ channel 11 MCS7;

WIFI5:-50dBm @ channel 155 AC80;

WPSfunction Support






Q1. ZISA product the quality of products.
A: As the top class total solution provider and productive service provider, we provide high quality of service to Tier1 Telco customer and Vendors. With the genius design and software customization expertise, we can leverage the best service to our customers. ZISA Product quality is same as Huawei and ZTE, and ZISA has complete product line.

Flexible , Smart and selective producing system, the top manufacture in vertical career choose our team, with decade of global market and professional experience.


Q2. ZISA after-sales service.
A:ZISA has complete software and hardware research and development. Provide reqiurment development, bug modify and 24h on-line support. For significant customers, ZISA can send technician to support.

Q3. Ways of cooperation with ZISA.
A :ZISA welcome integrator or agent to agent ZISA product. If agent has enough advantages in the market, ZISA appoint you ZISA sole agent.

Q4. About factory visit.
A :ZISA welcome significant customers to visit ZISA factory. Please make an appointment in two weeks.

Q5. About product pricing.
A :ZISA only publish sample price. The price of different agent and OEM customer is secret. ZISA gives specific price for significant projects and customers. Besides, ZISA only provide goods to agent in agent area.
