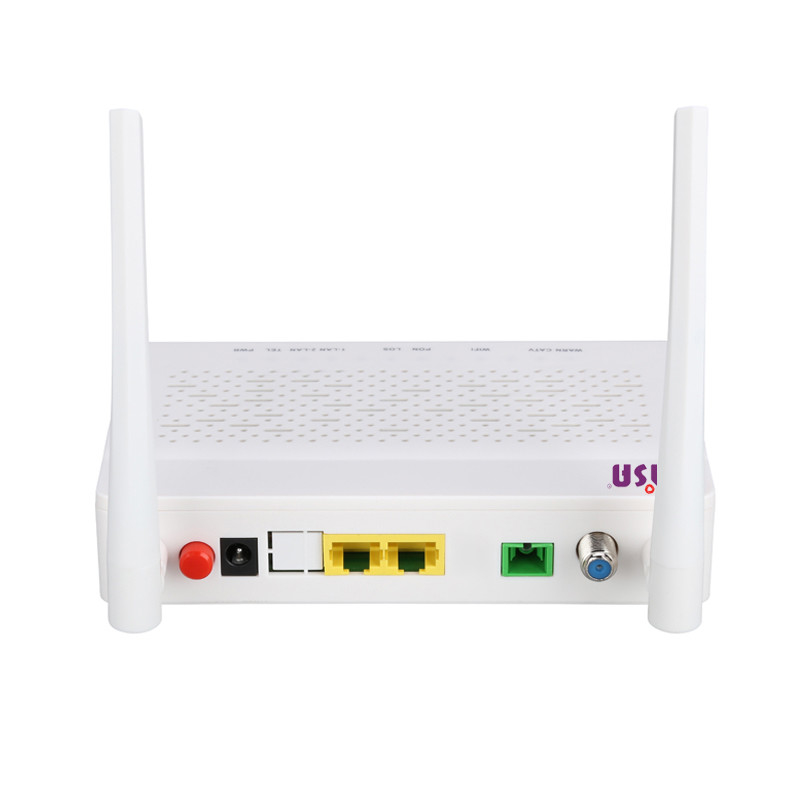

FTTH Onu Olt Gpon 1GE+1FE+WIFI+CATV OP152W-RF Fiber Optic Wifi CATV

Basic Information
Place of Origin: CHINA
Brand Name: ZISA
Certification: CE
Model Number: OP152W-RF
Minimum Order Quantity: 1
Price: 29-33USD
Packaging Details: box 0.5kg
Delivery Time: 5-8weeks
Payment Terms: T/T
Supply Ability: 10000PCS
Detail Information
Product Name: ZISA 1GE WIFI Gpon ONU Application: FTTH
Color: WHITE Type: ONU
Warranty: 1 YEAR Power Supply: 12V 1A
Certification: CE Weight: 1kg
High Light:

1FE Onu Olt Gpon


FTTH Onu Olt Gpon


FTTH Gpon Onu 1ge

Product Description

1GE+1FE+WIFI+CATV OP152W-RF Fiber Optic Wifi CATV onu GPON OLT FTTH solution
Product Overview
OP152W-RF product is the terminal equipment of a series of GPON which comply fully with ITU-G.984.1/2/3/4 standard and meet the energy-saving of G.987.3 protocol, is based on mature and stable and high cost-effective GPON technology which adopts high-performance GPON ZTE chipset and has high reliability, easy management,flexible configuration,robustness,good quality service guarantee(Qos).
adopts MTK MT7603EN scheme for WIFI application that supports IEEE802.11b/g/n standard at the same time,a WEB system provided simplifies the configuration of the and connects to INTERNET conveniently for users.
OP152W-RF has G / E PON mutual conversion function, which is realized by pure software
OP152W-RF support one RF signal for TV.
Product Features

  • comply fully with ITU-G.984.1/2/3/4 standard and G.987.3protocol
  • support downlink 2.488 Gbits/s rate and uplink 1.244 Gbits/srate
  • support bidirectional FEC and RS(255,239) FECCODEC
  • support 32 TCONT and 256GEMPORT
  • support AES128 decryption function of G.984standard
  • support SBA and DBA dynamically broadband allocation
  • support the PLOAM function of G.984standard
  • support Dying-Gasp check and report
  • support synchronous Ethernet
  • good interworking with the OLT from different manufacturers,such as huawei,ZTE,Cortina etc
  • down-link LAN ports:


  • 1*10/100M with auto-negotiation
  • 1*10/100/1000M with auto-negotiation
  • support the rogue ONU alarm function
  • Support VLAN function
  • operation mode:SFU or HGU option
  • support IEEE802.11b/g/n standard for WIFI
  • double antennas: external box with5DBi
  • support of 300Mbps PHY rate
  • support multiply SSID
  • Multiple encryption methods:WFA,WPA,WPA2,WAPI
  • one RF port for TV application

Basic Characteristics

Tech parametersDescription


Up-link interface

1 GPON interface,SC single mode single fiber RX 2.488 Gbits/s rate and TX 1.244 Gbits/s rate Fiber type:SC/APC

Optical power:0~4dBmSensitivity:-28dBm

safety: ONU authenticationmechanism

Wavelength(nm)TX 1310nm,RX1490nm
Fiber connectorSC/APC connector
Down-link data interface1*10/100Mbps and 1*10/100/1000Mauto-negotiationEthernet interface, RJ45interface
Indicator LED8 pcs,refer to NO.6 definition of indicator LED
DC supply interfaceinput+12V 1A,footprint:DC0005 ø2.1MM
Operating temperature-5~+55℃
Storage temperature-30~+70℃


WIFI characteristics

Tech featuresDescription

2T2R Mode
5DBI Gain ,Frequency:2.4G

rate300Mbps PHY rate,WPS
Encryption methodsWFA,WPA,WPA2,WAPI






CATV Technical features


Tech featuresDescription
Optical wavelength1540~1560nm(Single Fiber,internal PWDM component)
Optical input range0~-15DBm
Optical return loss≥45DB
Flatness± 1DB
RF output level≥72dBuv
AGC control range0~-14DBm
RF Output return loss≥14DB
Output impedance75Ω


Packing list­

Supply power1pcs
Manual & warranty card1pcs

Q1. ZISA product the quality of products.
A: As the top class total solution provider and productive service provider, we provide high quality of service to Tier1 Telco customer and Vendors. With the genius design and software customization expertise, we can leverage the best service to our customers. ZISA Product quality is same as Huawei and ZTE, and ZISA has complete product line.
Flexible , Smart and selective producing system, the top manufacture in vertical career choose our team, with decade of global market and professional experience.
Q2. ZISA after-sales service.
A:ZISA has complete software and hardware research and development. Provide reqiurment development, bug modify and 24h on-line support. For significant customers, ZISA can send technician to support.
Q3. Ways of cooperation with ZISA.
A :ZISA welcome integrator or agent to agent ZISA product. If agent has enough advantages in the market, ZISA appoint you ZISA sole agent.
Q4. About factory visit.
A :ZISA welcome significant customers to visit ZISA factory. Please make an appointment in two weeks.
Q5. About product pricing.
A :ZISA only publish sample price. The price of different agent and OEM customer is secret. ZISA gives specific price for significant projects and customers. Besides, ZISA only provide goods to agent in agent area.
