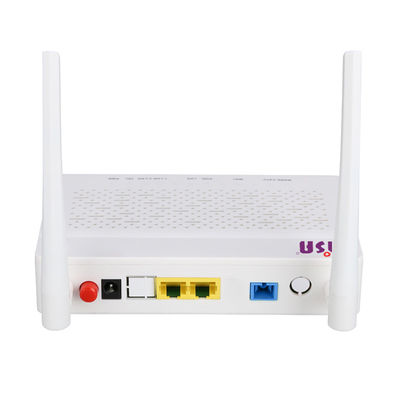

1FE+WIFI Gpon 1ge Onu OP152W Fiber Optic Wifi OLT Splitter FTTH Solution

Basic Information
Place of Origin: CHINA
Brand Name: ZISA
Certification: CE
Model Number: OP152W
Minimum Order Quantity: 1
Price: 19-22USD
Packaging Details: box 0.5kg
Delivery Time: 5-8weeks
Payment Terms: T/T
Supply Ability: 10000PCS
Detail Information
Product Name: ZISA 1GE WIFI Gpon ONU Application: FTTH
Color: WHITE Type: ONU
Warranty: 1 YEAR Power Supply: 12V 1A
Certification: CE Weight: 0.5kg
High Light:

WIFI Gpon 1ge Onu

,

Gpon 1ge Onu Splitter

,

FTTH Home Fibr Gpon Onu


Product Description

1GE+1FE+WIFI OP152W Fiber Optic Wifi onu GPON OLT gpon splitter FTTH solution



Product Overview



OP152W product is the terminal equipment of a series of GPON which comply fully with ITU-G.984.1/2/3/4 standard and meet the energy-saving of G.987.3 protocol, is based on mature and stable and high cost-effective XPON technology which adopts high-performance GPON ZTE chipset and has high reliability, easy management,flexible configuration,robustness,good quality service guarantee(Qos).

adopts MTK MT7603EN scheme for WIFI application that supports IEEE802.11b/g/n standard at the same time,a WEB system provided simplifies the configuration of the and connects to INTERNET conveniently for users.

OP152W has G / E PON mutual conversion function, which is realized by pure software.



Product Features



  • comply fully with ITU-G.984.1/2/3/4 standard and G.987.3protocol
  • support downlink 2.488 Gbits/s rate and uplink 1.244 Gbits/srate
  • support bidirectional FEC and RS(255,239) FECCODEC
  • support 32 TCONT and 256GEMPORT
  • support AES128 decryption function of G.984standard
  • support SBA and DBA dynamically broadband allocation
  • support the PLOAM function of G.984standard
  • support Dying-Gasp check and report
  • support synchronous Ethernet
  • good interworking with the OLT from different manufacturers,such as huawei,ZTE,Cortina etc
  • down-link LAN ports:
    • 1*10/100M with auto-negotiation
    • 1*10/100/1000M with auto-negotiation
  • support the rogue ONU alarm function
  • Support VLAN function
  • operation mode:SFU or HGU option
  • support IEEE802.11b/g/n standard for WIFI
  • double antennas: external box with5DBi
  • support of 300Mbps PHY rate
  • support multiply SSID
  • Multiple encryption methods:WFA,WPA,WPA2,WAPI



Basic Characteristics



Tech parameters Description



Up-link interface

1 GPON interface,SC single mode single fiber RX 2.488 Gbits/s rate and TX 1.244 Gbits/s rate Fiber type:SC/APC

Optical power:0~4dBmSensitivity:-28dBm

safety: ONU authenticationmechanism

Wavelength(nm) TX 1310nm,RX1490nm
Fiber connector SC/APC connector
Down-link data interface 1*10/100Mbps and 1*10/100/1000Mauto-negotiationEthernet interface, RJ45interface
Indicator LED 6pcs,refer to NO.6 definition of indicator LED
DC supply interface input+12V 1A,footprint:DC0005 ø2.1MM
Power ≤5W
Operating temperature -5~+55℃
Humidity 10~85%(non-condensation)
Storage temperature -30~+70℃
Dimension(MM) 155*92*32mm(mainframe)
Weight 0.5Kg(mainframe)



WIFI characteristics



Tech features Description
antenna

2T2R Mode

5DBI Gain ,Frequency:2.4G

rate 300Mbps PHY rate, WPS
Encryption methods WFA,WPA,WPA2,WAPI





Packing list­



Name Quantity Unit
OP152W 1 pcs
Supply power 1 pcs
Manual & warranty card 1 pcs






FAQ



Q1. ZISA product the quality of products.
A: As the top class total solution provider and productive service provider, we provide high quality of service to Tier1 Telco customer and Vendors. With the genius design and software customization expertise, we can leverage the best service to our customers. ZISA Product quality is same as Huawei and ZTE, and ZISA has complete product line.

Flexible , Smart and selective producing system, the top manufacture in vertical career choose our team, with decade of global market and professional experience.



Q2. ZISA after-sales service.
A:ZISA has complete software and hardware research and development. Provide reqiurment development, bug modify and 24h on-line support. For significant customers, ZISA can send technician to support.

Q3. Ways of cooperation with ZISA.
A :ZISA welcome integrator or agent to agent ZISA product. If agent has enough advantages in the market, ZISA appoint you ZISA sole agent.

Q4. About factory visit.
A :ZISA welcome significant customers to visit ZISA factory. Please make an appointment in two weeks.

Q5. About product pricing.
A :ZISA only publish sample price. The price of different agent and OEM customer is secret. ZISA gives specific price for significant projects and customers. Besides, ZISA only provide goods to agent in agent area.
