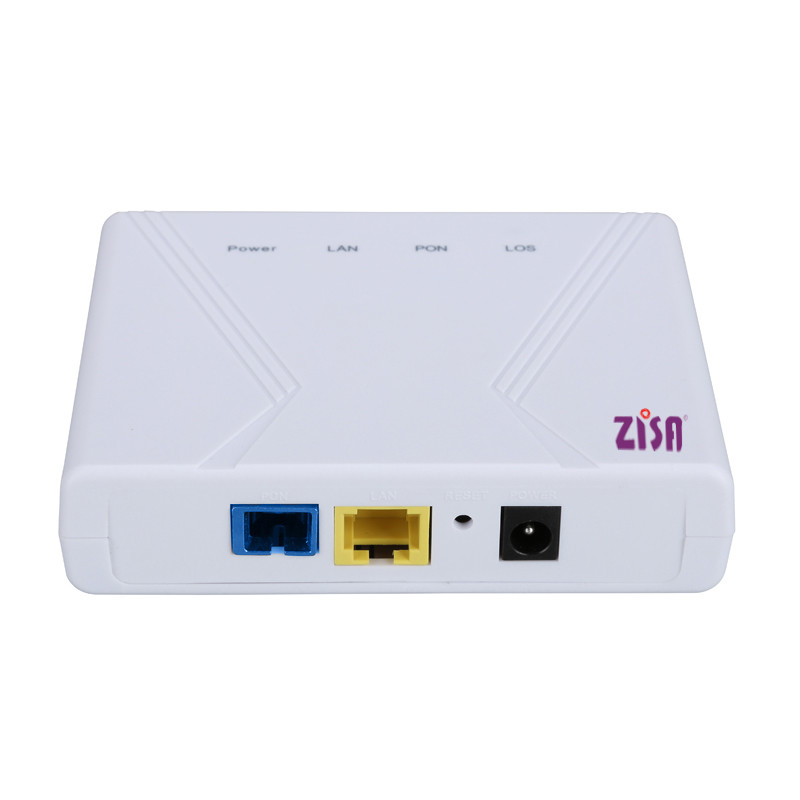

Fiberhome 1 GE GPON ONU BOSA Gigabit Ethernet Passive Optical Network IPTV VoD

Basic Information
Place of Origin: CHINA
Brand Name: ZISA
Certification: CE
Model Number: OP151-B
Minimum Order Quantity: 1
Price: 12-14USD
Packaging Details: box 0.5kg
Delivery Time: 5-8weeks
Payment Terms: T/T
Supply Ability: 10000PCS
Detail Information
Product Name: ZISA 1GE Gpon ONU Application: FTTH
Color: WHITE Type: ONU
Warranty: 1 YEAR Power Supply: 12V 1A
Certification: CE Weight: 0.5kg
High Light:



Fiberhome GPON ONU


1 GE Modem Fiberhome Gpon Onu

Product Description

1 GE BOSA ONU Gigabit Ethernet Passive Optical Network OP151-B IPTV VoD


Product Overview


The OP151-B product with single port is the terminal equipment of a series of xPON which comply fully with ITU-G.984.1/2/3/4 standard and meet the energy-saving of G.987.3 protocol , is based on mature and stable, and high cost-effective Gigabit GPON technology which adopts high-performance xPON Realtek chipset, and has high reliability, easy management, flexible configuration, robustness, good quality service guarantee(Qos).


Product Features


  • comply fully with ITU-G.984.1/2/3/4 standard and G.987.3 protocol
  • support downlink 2.488 Gbits/s rate and uplink 1.244 Gbits/s rate
  • support bidirectional FEC and RS(255,239) FEC CODEC
  • support 32 TCONT and 256 GEMPORT
  • support AES128 decryption function of G.984 standard
  • support SBA and DBA dynamically broadband allocation
  • support the PLOAM function of G.984 standard
  • support Dying-Gasp check and report
  • support synchronous Ethernet
  • good interworking with the OLT from different manufacturers,such as Huawei,Cortina etc
  • support the rogue ONU alarm function
  • down-link port 10/100/1000M auto-negotiation
  • Support 1K MAC address table





Basic Characteristics


Tech parameters Description
Up-link interface

1 GPON interface,SC single mode single fiber RX 2.488 Gbits/s rate and TX 1.244 Gbits/s rate Fiber type:SC/PC

Optical power:1~4dBmSensitivity:-28dBm

safety: ONU authenticationmechanism

Wavelength(nm) TX 1310nm,RX1490nm
Fiber connector SC connector
Down-link data interface 1 pcs 10­/100/1000Mbps auto-negotiation Ethernet interface, RJ45 interface
Indicator LED 4 pcs,refer to NO.6 definition of indicator LED
DC supply interface input+12V 0.5A,footprint:DC0005ø2.1MM
Power ≤2.5W
Operating temperature -5~+55℃
Humidity 10~85%(non-condensation)
Storage temperature -30~+60℃
Dimension(MM) 108*85*25.5(mainframe)
Weight 0.1Kg(mainframe)


Packing list­


Name Quantity Unit
OP151-B 1 pcs
Supply power 1 pcs
Manual & warranty card 1 pcs






Q1. ZISA product the quality of products.
A: As the top class total solution provider and productive service provider, we provide high quality of service to Tier1 Telco customer and Vendors. With the genius design and software customization expertise, we can leverage the best service to our customers. ZISA Product quality is same as Huawei and ZTE, and ZISA has complete product line.

Flexible , Smart and selective producing system, the top manufacture in vertical career choose our team, with decade of global market and professional experience.


Q2. ZISA after-sales service.
A:ZISA has complete software and hardware research and development. Provide reqiurment development, bug modify and 24h on-line support. For significant customers, ZISA can send technician to support.

Q3. Ways of cooperation with ZISA.
A :ZISA welcome integrator or agent to agent ZISA product. If agent has enough advantages in the market, ZISA appoint you ZISA sole agent.

Q4. About factory visit.
A :ZISA welcome significant customers to visit ZISA factory. Please make an appointment in two weeks.

Q5. About product pricing.
A :ZISA only publish sample price. The price of different agent and OEM customer is secret. ZISA gives specific price for significant projects and customers. Besides, ZISA only provide goods to agent in agent area.
