Product Name: | Mini OLT | Type: | FTTH And PBX |
---|---|---|---|
Port: | Dsl Port | Warranty: | 1 YEAR |
High: | 2U | Certification: | CE |
Operating Temperature: | -40℃ To 65℃; Startup At -25℃ | Management: | Telnet And CLI |
High Light: | Mini OLT Remote DSLAM,Remote DSLAM MA5616,MDU MSAN network |
Remote DSLAM Temperature-Hardened Mini OLT MA5616 DSL MDU MSAN
Environment-friendly and energy conservation: The MA5616 uses a highly effective power supply system to reduce system power consumption. It uses an intelligent fan system that adjusts the rotating speed to reduce power consumption when the system is idle. It uses high-performance chipset to reduce chipset power consumption. It uses POTS short-loop design to reduce port power consumption in short distances.
Future-oriented architecture design: The MA5616 provides corresponding service boards to quickly meet operators' network and service requirements in the future without any modification.
Features
Features | CCUB control board |
GPON | ITU G.984-compliance |
8 T-CONTs | |
128 GEM ports | |
Broadband | 4K VLANs, supporting QinQ and stacking VLANs |
4K MAC addresses, supporting VMAC | |
VLAN switching | |
Conversion from PPPoA to PPPoE and from IPoA to IPoE | |
802.1p, supporting PQ and WRR flow control, and ACL | |
Voice | SIP and H.248 |
ISDN BRA port | |
POTS short-loop design |
Dimensions (H×W×D) | 88.1mm × 442mm × 245mm |
Network-side port | The MA5616 supports the following configurations: • 1 × GPON + 1 × GE • 2 × GE |

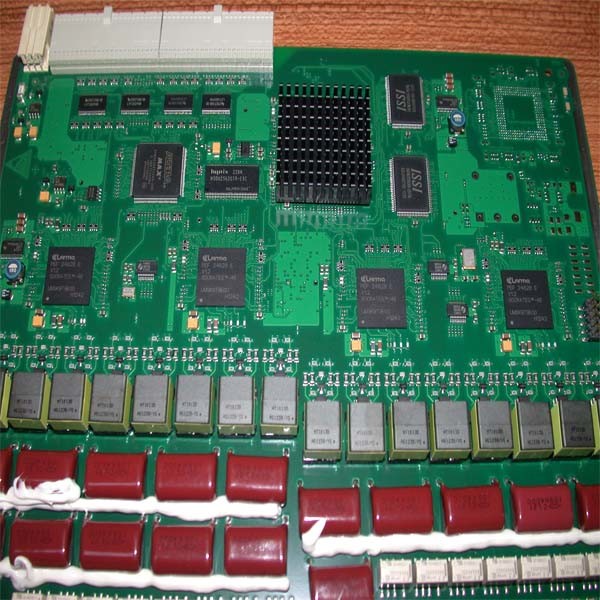

User-side port | The MA5616 provides four slots and the following 10 service boards: • 24-channel VDSL2 board (17a, over POTS, built-in SPL) • 24-channel VDSL2 board (17a, over POTS, external SPL) • 24-channel VDSL2 board (17a, over ISDN, external SPL) • 16-channel VDSL2 board (30a, over POTS, built-in SPL) • 32-channel ADSL2+ board (built-in SPL) • 32-channel combo board (32 × POTS + 32 × ADSL2+) • 64-channel POTS board • 32-channel POTS board • 8-channel ISDN board • 16-channel G.SHDSL board (supporting ATM and PTM) |
