| Place of Origin: | CHINA |
|---|---|
| Brand Name: | ZISA |
| Certification: | CE |
| Model Number: | MA5616 |
| Minimum Order Quantity: | 1 |
| Price: | 265-2400USD |
| Packaging Details: | box 14kg |
| Delivery Time: | 1weeks |
| Payment Terms: | T/T |
| Supply Ability: | 100pcs |
| Product Name: | CCUD DSLAM | Type: | CCUD Control |
|---|---|---|---|
| Port: | CCUD Uplink | Warranty: | 1 YEAR |
| High: | 2U | Certification: | CE |
| Operating Temperature: | -40℃ To 65℃; Startup At -25℃ | Management: | Telnet And CLI |
| High Light: | 128 Ports digital subscriber line access multiplexer,digital subscriber line access multiplexer 2U,IP DSLAM MA5616 |
||

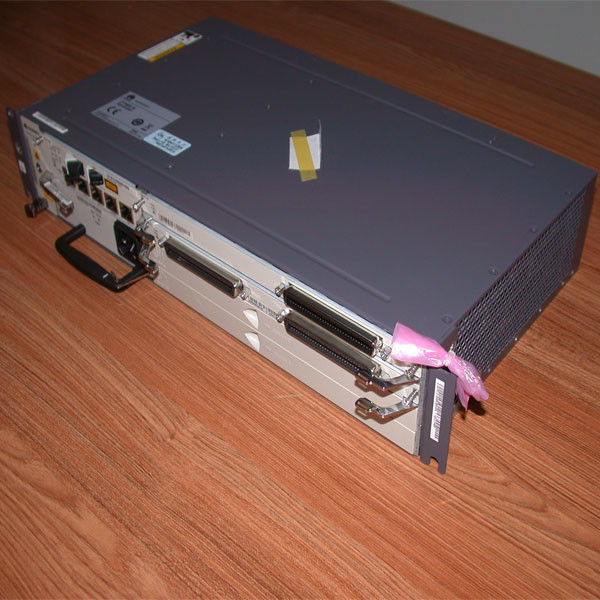

128 ports dsl 2U MSAN MDU IP DSLAM MA5616 EPON uplink GE GPON
| Features | CCUB control board |
| Dimensions (H×W×D) | 88.1mm × 442mm × 245mm |
| Network-side port | The MA5616 supports the following configurations: • 1 × GPON + 1 × GE • 2 × GE |
| User-side port | The MA5616 provides four slots and the following 10 service boards: • 24-channel VDSL2 board (17a, over POTS, built-in SPL) • 24-channel VDSL2 board (17a, over POTS, external SPL) • 24-channel VDSL2 board (17a, over ISDN, external SPL) • 16-channel VDSL2 board (30a, over POTS, built-in SPL) • 32-channel ADSL2+ board (built-in SPL) • 32-channel combo board (32 × POTS + 32 × ADSL2+) • 64-channel POTS board • 32-channel POTS board • 8-channel ISDN board • 16-channel G.SHDSL board (supporting ATM and PTM) |
| Operating temperature | -40℃ to 65℃; startup at -25℃ |
| Humidity | 5% to 95% (non-condensing) |
| Heat dissipation mode | Providing fans for heat dissipation. The rotating speed can be automatically adjusted. |
| Power supply | AC: 220 V/110 V DC: -48 V |
| Backup power | Support for 48-V backup power Support for lead-acid batteries and LiFePO4 batteries |
| Weight | 4.8 kg (empty chassis) 7.2 kg (full configuration) |
Features
| Features | CCUB control board |
| GPON | ITU G.984-compliance |
| 8 T-CONTs | |
| 128 GEM ports | |
| Broadband | 4K VLANs, supporting QinQ and stacking VLANs |
| 4K MAC addresses, supporting VMAC | |
| VLAN switching | |
| Conversion from PPPoA to PPPoE and from IPoA to IPoE | |
| 802.1p, supporting PQ and WRR flow control, and ACL | |
| Voice | SIP and H.248 |
| ISDN BRA port | |
| POTS short-loop design | |
| ADSL2+ | Compliance with ITU-T G992.1 to G992.5, and T1.413 |
| Annex M | |
| ADSL2 + bonding (2-wire, 4-wire, 6-wire, or 8-wire) | |
| VDSL2 | G993.2-compliance |
| 8a, 8b, 8c, 8d, 12a, 12b, 17a, and 30a profiles | |
| 2-wire VDSL2 bonding | |
| SHDSL | G991.2-compliance |
| G.SHDSL.Bis, supporting ATM and PTM | |
| EFM bonding (2-wire, 4-wire, 6-wire, or 8-wire) | |
| Multicast | IGMPv2 and IGMPv3 |
| IGMP proxy and IGMP snooping | |
| A maximum of 1024 configurable multicast programs in the systemA maximum of 256 multicast usersA maximum of 16 concurrent multicast programs for each user | |
| Security | PPPoE + and DHCP option82 |
| Static and dynamic MAC address binding | |
| Anti-MAC and anti-IP spoofing; source MAC address and IP address filtering | |
| Anti-DoS attack and firewall | |
| Maintenance and management | SNMPv1, SNMPv2, and SNMPv3 |
| Telnet and SSHv2 | |
| Remote and batch pre-deployment | |
| Remote upgrade and monitoring |
