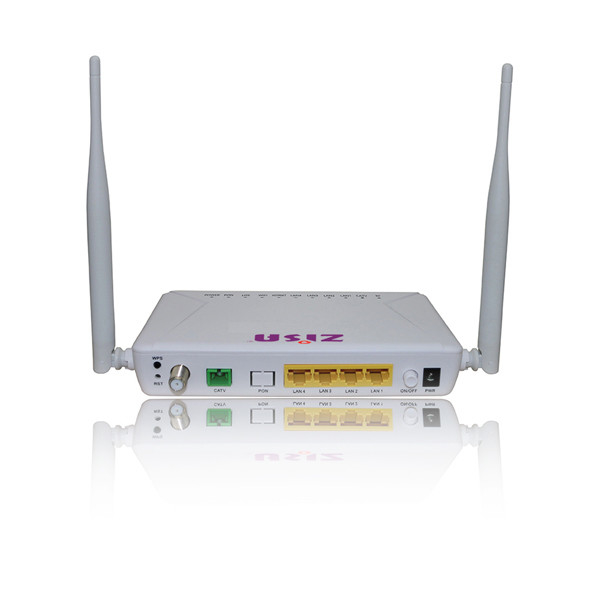

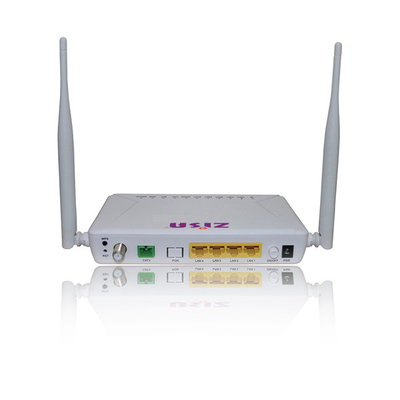

High Rate 1ge Gepon ONU Modem Fiber Optic OP256CW 300Mbps 2.4 GHz

Basic Information
Place of Origin: CHINA
Brand Name: ZISA
Certification: CE
Model Number: OP256CW
Minimum Order Quantity: 1
Price: 44-46USD
Packaging Details: box 0.5kg
Delivery Time: 5-8weeks
Payment Terms: T/T
Supply Ability: 10000PCS
Detail Information
Name: Gpon ONU 1G+3FE+RF+WIFI Management: Web
Connector: Pon Port Type: ONU
Warranty: 1 YEAR Power Supply: 12V 1A
Certification: CE Weight: 0.2kg
High Light:

1ge onu modem fiber optic

,

Gepon onu modem fiber optic

,

gpon onu router 300Mbps 2.4 GHz


Product Description

High Rate 1ge Gpon Port Gpon Gepon Optic Onu OP256CW



Software Feature Support on OP256CW



Feature OP256CW
GPON Feature Compliant with ITU-T G.984 GPON standard
FEC (Forward Error Correction) in both upstream and downstream
QoS scheduling based on SP or WRR between GEM port and T-CONT
Downstream multicast GEM port and broadcast GEM port
Ethernet Feature Support Auto-speed and MDI/MDIX auto detection
Internal L2 switch
Advanced data processing function,Such as VLAN label processing, flowclassification
Gateway Feature WAN support Routerand Bridge mode
Router mode supportsPPPoE/DHCP/ static IP
WAN support Internet,VoIP,IPTV,TR069
LAN supports DHCP and static IP
Support NAT and NAPT
WIFI Feature 300 Mbps on 2.4 GHz
IEEE 802.11 n/g/b wireless LAN
2.4 GHz band: 2400 - 2483.5 MHz,
WEP,WPA-PSK,WPA2-PSK and other encryption
OAM Feature Standard OMCI (the embedded operations channel)compliant with ITU-T G.988
Compliant with TR-069 standard
Compliant with TR-098,TR-140 terminal integrated management interface
Alarm reporting, performance monitoring




Ordering Information



Model Product Description
OP256CW GPON ONU 1GE+3FE+11n 2*2+WDM+1 RF , 2 x External Antennas 5DBI




FAQ



Q1. ZISA product the quality of products.
A: As the top class total solution provider and productive service provider, we provide high quality of service to Tier1 Telco customer and Vendors. With the genius design and software customization expertise, we can leverage the best service to our customers. ZISA Product quality is same as Huawei and ZTE, and ZISA has complete product line.

Flexible , Smart and selective producing system, the top manufacture in vertical career choose our team, with decade of global market and professional experience.



Q2. ZISA after-sales service.
A:ZISA has complete software and hardware research and development. Provide reqiurment development, bug modify and 24h on-line support. For significant customers, ZISA can send technician to support.

Q3. Ways of cooperation with ZISA.
A :ZISA welcome integrator or agent to agent ZISA product. If agent has enough advantages in the market, ZISA appoint you ZISA sole agent.

Q4. About factory visit.
A :ZISA welcome significant customers to visit ZISA factory. Please make an appointment in two weeks.

Q5. About product pricing.
A :ZISA only publish sample price. The price of different agent and OEM customer is secret. ZISA gives specific price for significant projects and customers. Besides, ZISA only provide goods to agent in agent area.
