| Place of Origin: | CHINA |
|---|---|
| Brand Name: | ZISA |
| Certification: | CE |
| Model Number: | OP256CW |
| Minimum Order Quantity: | 1 |
| Price: | 44-46USD |
| Packaging Details: | box 0.5kg |
| Delivery Time: | 5-8weeks |
| Payment Terms: | T/T |
| Supply Ability: | 10000PCS |
| Name: | 1GE+3FE+RF+WIFI Gpon ONU | OEM: | Yes |
|---|---|---|---|
| Power Consumption: | 4W | Type: | ONU |
| Warranty: | 1 YEAR | Power Supply: | 12V 1A |
| Certification: | CE | Weight: | 0.2kg |
| High Light: | GEPON GPON ONU,RF 1GE GPON ONU,gpon optical network unit 4W |
||

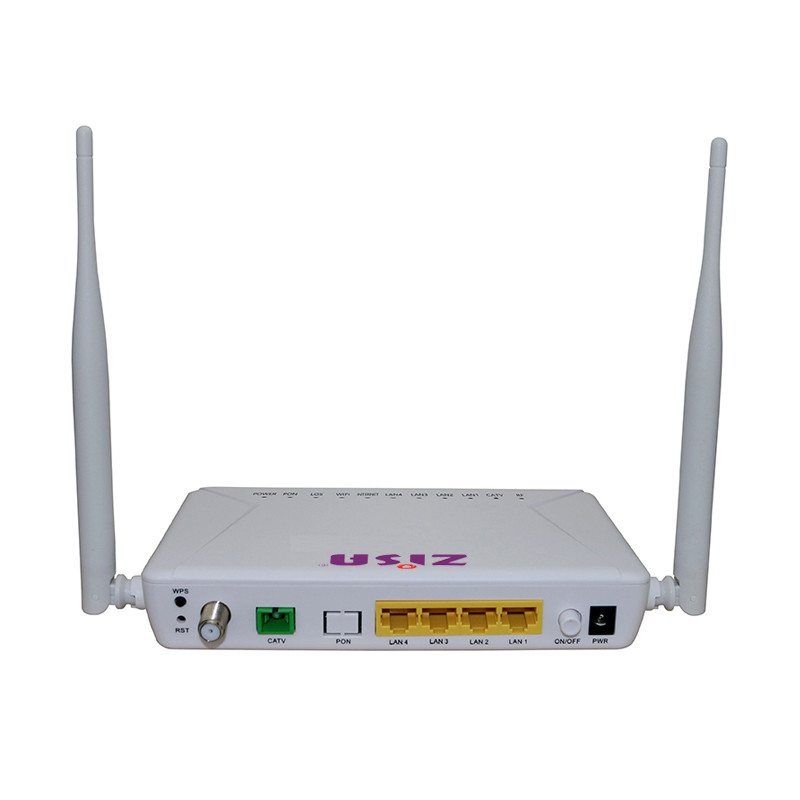

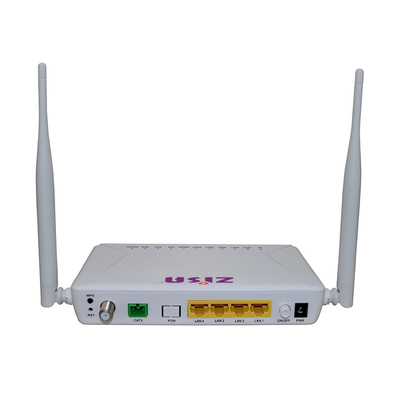

1GE+3FE RF Onu 1GE GPON GEPON ONU With OP256CW White ONU
Product Specifications
| Service Interface | ||
| GPON Interface | 1 GPON(CATV) Port | |
| Data Interface | 1 GE + 3FE | |
| WIFI Interface | IEEE 802.11 n/g/bwireless LAN | |
| Antenna Type | 2 external antennas | |
| RF Interface | 1 RF output Female F-Type Connector | |
| Physical specifications | ||
| Dimensions | 180mm×120mm×31mm(L×W×H) | |
| Weight | 0.24KG | |
| Power Supply and Consumption | ||
| Power Adaptor | Input: 100 to 240 V AC, 50/60 Hz; Output: 12 V, 1A | |
| Consumption | ≤8W | |
| Environmental conditions | ||
| Storage | Temperature -20 to 70°C, rel. humidity 10–90% (non-condensing) | |
| Operation | Temperature 0 to 45°C, rel. humidity 10–90% (non-condensing) | |
Software Feature Support on OP256CW
| Feature | OP256CW |
| GPON Feature | Compliant with ITU-T G.984 GPON standard |
| FEC (Forward Error Correction) in both upstream and downstream | |
| QoS scheduling based on SP or WRR between GEM port and T-CONT | |
| Downstream multicast GEM port and broadcast GEM port | |
| Ethernet Feature | Support Auto-speed and MDI/MDIX auto detection |
| Internal L2 switch | |
| Advanced data processing function,Such as VLAN label processing, flowclassification | |
| Gateway Feature | WAN support Routerand Bridge mode |
| Router mode supportsPPPoE/DHCP/ static IP | |
| WAN support Internet,VoIP,IPTV,TR069 | |
| LAN supports DHCP and static IP | |
| Support NAT and NAPT | |
| WIFI Feature | 300 Mbps on 2.4 GHz |
| IEEE 802.11 n/g/b wireless LAN | |
| 2.4 GHz band: 2400 - 2483.5 MHz, | |
| WEP,WPA-PSK,WPA2-PSK and other encryption | |
| OAM Feature | Standard OMCI (the embedded operations channel)compliant with ITU-T G.988 |
| Compliant with TR-069 standard | |
| Compliant with TR-098,TR-140 terminal integrated management interface | |
| Alarm reporting, performance monitoring |
Product Overview
By introducing latest fiber GPON access technology, The ZISA OP256CW GPON WiFI ONU brings carrier class high-end networking solution for advanced triple play services. It compliant with ITU-T G.984 standard, WiFi 802.11n 300 Mbps on 2.4 GHz, Layer 2/3, and CATV output as well, ,It adopts single fiber WDM technology with downlink wavelength 1490nm, uplink wavelength 1310nm, OP256CW ONU support the comprehensivetriple-playservices, including voice, video (IPTV or VoD), and high-speed internet access service.
FAQ
Q1. ZISA product the quality of products.
A: As the top class total solution provider and productive service provider, we provide high quality of service to Tier1 Telco customer and Vendors. With the genius design and software customization expertise, we can leverage the best service to our customers. ZISA Product quality is same as Huawei and ZTE, and ZISA has complete product line.
Flexible , Smart and selective producing system, the top manufacture in vertical career choose our team, with decade of global market and professional experience.
Q2. ZISA after-sales service.
A:ZISA has complete software and hardware research and development. Provide reqiurment development, bug modify and 24h on-line support. For significant customers, ZISA can send technician to support.
Q3. Ways of cooperation with ZISA.
A :ZISA welcome integrator or agent to agent ZISA product. If agent has enough advantages in the market, ZISA appoint you ZISA sole agent.
Q4. About factory visit.
A :ZISA welcome significant customers to visit ZISA factory. Please make an appointment in two weeks.
Q5. About product pricing.
A :ZISA only publish sample price. The price of different agent and OEM customer is secret. ZISA gives specific price for significant projects and customers. Besides, ZISA only provide goods to agent in agent area.
