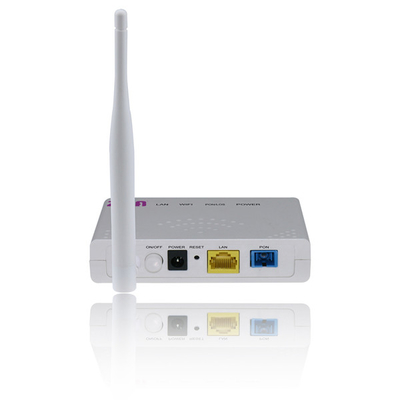

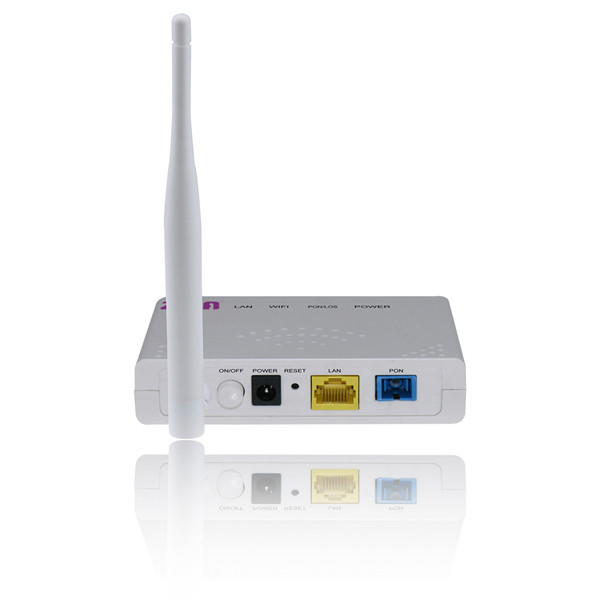

1GE Fiber Optic Gpon WIFI 300 Mbps Gpon Port GPON GEPON Optic ONU OP251W

Basic Information
Place of Origin: CHINA
Brand Name: ZISA
Certification: CE
Model Number: OP251W
Minimum Order Quantity: 1
Price: 27-29USD
Packaging Details: box 0.5kg
Delivery Time: 5-8weeks
Payment Terms: T/T
Supply Ability: 10000PCS
Detail Information
Name: Fiber ONU 1Ge WIFI Uplink: Pon
Port: SC/APC Or SC/UPC Type: ONU
Warranty: 1 YEAR Power Supply: 12V 1A
Certification: CE Weight: 0.2kg
High Light:

300 Mbps GPON ONU




1GE fiber optic gpon

Product Description

SC/APC/UPC 1GE WIFI Gpon Port Gpon Gepon Optic Onu OP251W


Product Overview


OP251W WIFI GPON ONU support the comprehensive triple-play services, including data, video (IPTV or VoD), and high-speed internet access service.By introducing latest fiber GPON access technology, The ZISA OP251W GPON ONU brings carrier class high-end networking solution for advanced triple play services.It compliant with ITU-T G.984 standard, wireless for combined connection speeds of up to 300 Mbps on 11n 2.4 GHz, Layer 2/3.


Product Specifications



GPON Interface
Rate Upsteam: 1.244Gbps Downsteam:2.488Gbps
Interface standard ITU-T G.984.2/ITU-T G.984.3/ITU-TG.988 Class B+
Launch power Min: 0dBm Max: +5dBm
sensitivity -27dBm
Input Power Overload -8 dBm
Service Interface
GPON Interface 1 GPON Port
Data Interface 1 GE
WIFI Interface IEEE 802.11 n/g/b wireless LAN
Antenna Type 1 external antennas +1 internal antennas
Physical specifications
Dimensions 118mm×85mm×26mm(L×W×H)
Weight 0.25KG
Feature OP251W
GPON Feature Compliant with ITU-T G.984 GPON standard
FEC (Forward Error Correction) in both upstream and downstream
QoS scheduling based on SP or WRR between GEM port and T-CONT
Downstream multicast GEM port and broadcast GEM port
Ethernet Feature Support Auto-speed and MDI/MDIX auto detection
Internal L2 switch
Advanced data processing function,Such as VLAN label processing, flowclassification
Gateway Feature WAN support Routerand Bridge mode
Router mode supportsPPPoE/DHCP/ static IP
WAN support Internet,VoIP,IPTV,TR069
LAN supports DHCP and static IP
Support NAT and NAPT
WIFI Feature 300 Mbps on 2.4 GHz
IEEE 802.11 ac/n/g/b wireless LAN
2.4 GHz band: 2400 - 2483.5 MHz
WEP,WPA-PSK,WPA2-PSK and other encryption
OAM Feature Standard OMCI (the embedded operations channel)compliant with ITU-T G.988
Compliant with TR-069 standard
Compliant with TR-098,TR-140 terminal integrated management interface
Alarm reporting, performance monitoring
