| Place of Origin: | CHINA |
|---|---|
| Brand Name: | ZISA |
| Certification: | CE |
| Model Number: | OP1616 |
| Minimum Order Quantity: | 1 |
| Price: | 2950-3480usd |
| Packaging Details: | 440mm×400mm× 44mm(W * D *H) 6.5KG |
| Delivery Time: | 1week |
| Payment Terms: | T/T |
| Supply Ability: | 1000pcs |
| Product Name: | 16 Ports Gpon OLT | Power Supply: | AC 100 To 240 V AC ; DC 36V-75V |
|---|---|---|---|
| Pon Port: | 8 Gpon Port | Operating Temperature: | Temperature 0 To 45°C, Rel. Humidity 10–90% (non-condensing) |
| Management Mode: | Command-line Interface（CLI）, Console, Telnet And WEB Configuration | Color: | Blue |
| Storage Temperature: | Temperature -10 To 70°C, Rel. Humidity 10–90% (non-condensing) | Oem/odm: | Yes |
| High Light: | OP1616 GPON OLT,16 port GPON OLT 4GE ETH,8 pon gpon olt 10G SFP+ Ports |
||

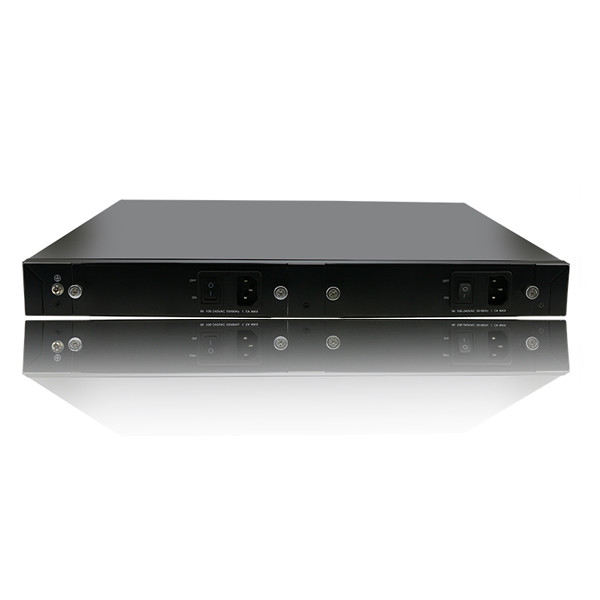

1U Cassette OLT 16 pon ports gpon olt OP1616 Gpon OLT
Product Overview
The OP1616 OLT provides 16 *Downsteam GPON ports, 4 * Uplink GE ETH ports and 4* Uplink 10G SFP+ ports. Up to 1:128 Split ratio for up to 2048 GPON users. The 1U pizzabox design is for easy installation, Maintenance and Space saving. OP1616 is suitable for Broadcast three in one, video surveillance network, enterprise LAN, Internet of Things, etc.
Key Feature Support on OP1616
| Ethernet switching (L2) features | ||
|
VLAN
|
4K VLANentries | |
| Port-based QinQ and Selective QinQ (StackVLAN) | ||
| Port-based/MAC-based/IP subnet-based VLA | ||
|
Spanning tree
|
IEEE 802.1x STP/RSTP/MSTP | |
| ONU remote loop detection | ||
|
MAC
|
MAC Black Hole | |
| Port MAC limit | ||
| 64K MAC address | ||
|
Port
|
Bi-direction bandwidth control | |
| Port mirroring and traffic mirroring | ||
| Service features | ||
|
Multicast
|
IGMPv1/v2/v3 | |
| IGMP Snooping/Proxy | ||
| IGMP filtering | ||
| PIM-SM | ||
|
QoS
|
Base on port or user-defined rate limitation | |
| Base on port or user-defined priority tag, provide 802.1P, DSCP tag ability of priority | ||
| Base on port or user-defined high grade queue scheduling | ||
| Priority queues and scheduler of SP, WRR and SP+WRR. | ||
| Congestion avoidance system | ||
| Routing | BGP | |
| RIP | ||
| MPLS | ||
| OSPF | ||
FAQ
Q1. ZISA product the quality of products.
A: As the top class total solution provider and productive service provider, we provide high quality of service to Tier1 Telco customer and Vendors. With the genius design and software customization expertise, we can leverage the best service to our customers. ZISA Product quality is same as Huawei and ZTE, and ZISA has complete product line.
Flexible , Smart and selective producing system, the top manufacture in vertical career choose our team, with decade of global market and professional experience.
Q2. ZISA after-sales service.
A: ZISA has complete software and hardware research and development. Provide reqiurment development, bug modify and 24h on-line support. For significant customers, ZISA can send technician to support.
Q3. Ways of cooperation with ZISA.
A : ZISA welcome integrator or agent to agent ZISA product. If agent has enough advantages in the market, ZISA appoint you ZISA sole agent.
Q4. About factory visit.
A : ZISA welcome significant customers to visit ZISA factory. Please make an appointment in two weeks.
Q5. About product pricing.
A : ZISA only publish sample price. The price of different agent and OEM customer is secret. ZISA gives specific price for significant projects and customers. Besides, ZISA only provide goods to agent in agent area.
