| Place of Origin: | CHINA |
|---|---|
| Brand Name: | ZISA |
| Certification: | CE |
| Model Number: | OP1616 |
| Minimum Order Quantity: | 1 |
| Price: | 2950-3480usd |
| Packaging Details: | 440mm×400mm× 44mm(W * D *H) 6.5KG |
| Delivery Time: | 1week |
| Payment Terms: | T/T |
| Supply Ability: | 1000pcs |
| Name: | 16 Gpon Ports OLT | Type: | GPON OLT |
|---|---|---|---|
| Power Consumption: | 75W | Warranty: | 1 Year |
| Management Mode: | Command-line Interface（CLI）, Console, Telnet And WEB Configuration | Color: | Black |
| Storage Temperature: | Temperature -10 To 70°C, Rel. Humidity 10–90% (non-condensing) | Oem/odm: | Yes |
| High Light: | Dual power supply gpon olt,gpon olt 10G Uplink,olt optical line terminal 16 port |
||

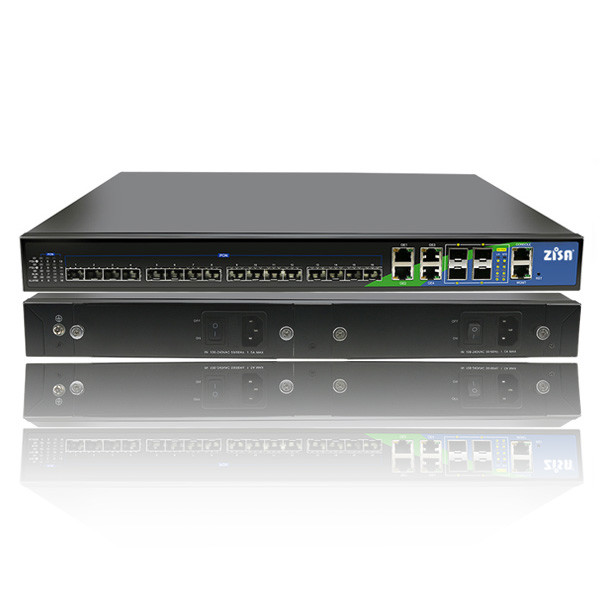

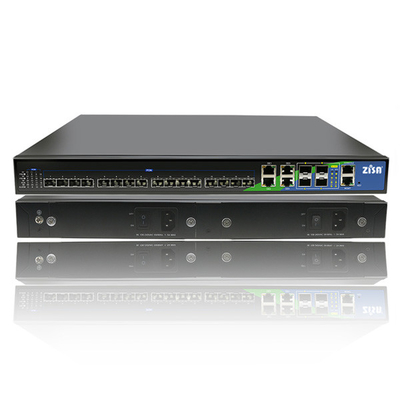

Dual power supply 10G Uplink OP1616 16 pon ports gpon olt
Product Overview
It can satisfy long-distance optical fiber access requirement on account of its excellent management, maintenance and monitoring capability, abundant service features and flexible network mode. OP1616 can be used with NMS3000 network management system so as to provide users with the perfect solution.
Key Feature Support on OP1616
| Ethernet switching (L2) features | |||
|
VLAN
|
4K VLANentries | ||
| Port-based QinQ and Selective QinQ (StackVLAN) | |||
| Port-based/MAC-based/IP subnet-based VLA | |||
|
Spanning tree
|
IEEE 802.1x STP/RSTP/MSTP | ||
| ONU remote loop detection | |||
|
MAC
|
MAC Black Hole | ||
| Port MAC limit | |||
| 64K MAC address | |||
|
Port
|
Bi-direction bandwidth control | ||
| Port mirroring and traffic mirroring | |||
| Service features | |||
|
Multicast
|
IGMPv1/v2/v3 | ||
| IGMP Snooping/Proxy | |||
| IGMP filtering | |||
| PIM-SM | |||
|
QoS
|
Base on port or user-defined rate limitation | ||
| Base on port or user-defined priority tag, provide 802.1P, DSCP tag ability of priority | |||
| Base on port or user-defined high grade queue scheduling | |||
| Priority queues and scheduler of SP, WRR and SP+WRR. | |||
| Congestion avoidance system | |||
| Routing | BGP | ||
| RIP | |||
| MPLS | |||
| OSPF | |||
| Security features | |||
|
User security
|
Anti-ARP-spoofing deceive defend | ||
| Anti-ARP-flooding flooding attack automatic control | |||
| IP,MAC,port and VLAN binding | |||
| TACACS+ Authentication | |||
|
Device security
|
Defend DOS attack | ||
| Security IP login through Telnet | |||
| Hierarchical management and password protection of users | |||
|
Network security
|
IP address,VLAN ID,MAC address and port manual binding | ||
| Port broadcast/multi/DLF storm control | |||
| Base on source / destination MAC address,VLAN,802.1p,ToS,DiffServ,source/ destination IP(IPv4/IPv6) address,TCP/UDP port numberprotocol type of IP package flow classify and flow defined regulation management,support package header 80 byte depth L2-L7 ACLflow filtrate | |||
| Dynamic ARP table-based binding | |||
| DHCP Option82 and PPPoE+ upload user’s physical location | |||
|
Network management
|
Command-line interface(CLI), Console, Telnet and WEB configuration | ||
| RMON (Remote Monitoring)1/2/3/9 groups of MIB | |||
| System configuration with SNMPv1/v2/v3 | |||
| NTP(Network Time Protocol) | |||
| NMS3000 network management | |||
