Product Name: | 1U Gpon OLT | Type: | GPON OLT |
---|---|---|---|
Weight: | 6.5KG | Warranty: | 1 Year |
Management Mode: | Command-line Interface(CLI), Console, Telnet And WEB Configuration | Color: | Blue |
Storage Temperature: | Temperature -10 To 70°C, Rel. Humidity 10–90% (non-condensing) | Oem/odm: | Yes |
High Light: | 1U olt device,16 Pon optical line terminal equipment,optical line terminal equipment 4GE Uplink |
1U Cassette 4 GE Uplink OP1616 16 pon ports gpon olt
Product Overview

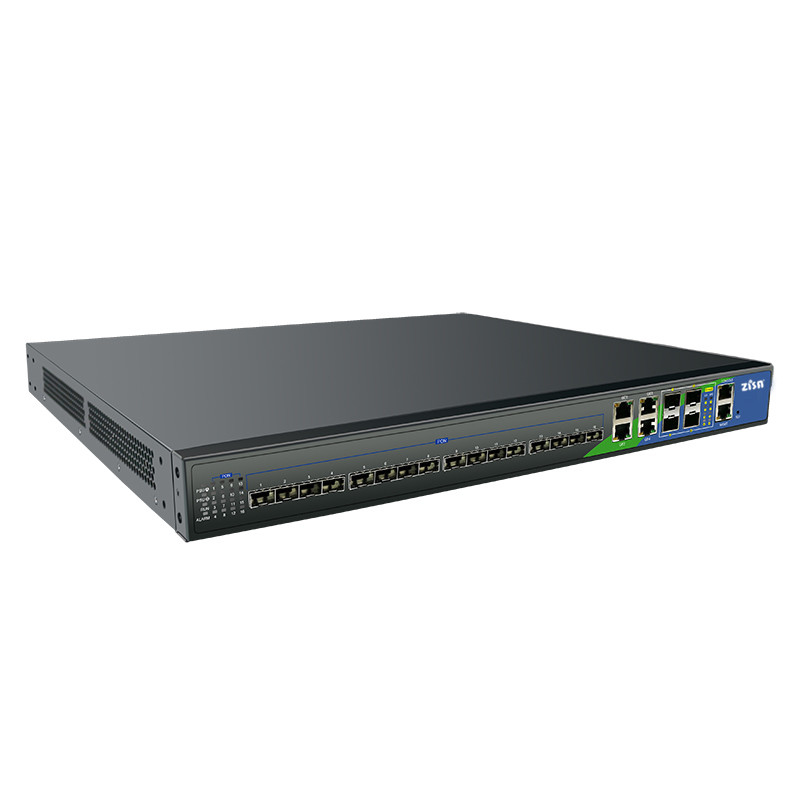

The ZISA OP1616 OLT (Figure 1) is self-developed Compact 1U GPON OLT equipment,meeting the requirements of ITU-T G.984/G.988 and relative standards of China Telecom/Unicom GPON, possessing super GPON access capacity, carrier-class reliability and the complete security function.
Product Specifications
Network interface | |
GPON interface | 16 x GPON (1.25/2.5 Gbps) |
10GE Ethernet | 4 x 10GE SFP+ |
1GE Ethernet | 4 x RJ-45 |
PON interface | |
GPON | ITU-TG.984.x standard |
Local Management interface | |
Console | RJ-45EIA/TIA-232 Console management port |
MGMT | 1000BASE-T out-band management port |
Performance | |
Switching Capacity | 102.5Gbps |
Package transmit rate(IPv4/IPv6) | 96Mpps |
Split ratio | 1:128 |
Maximum ONU quantity | 4096GEM port-ids, 1024 T-CONT, 128 ONT |
Power Supply and Consumption | |
Power Adaptor | AC Input::100 to 240 V AC, 50/60 Hz; DC Input : 36V-75V |
Redundancy Design | Pluggable double power supply, double AC, double DC and AC+DC |
Consumption | <84 W |
Environmental conditions | |
Storage | temperature -10 to 70°C, rel. humidity 10–90% (non-condensing) |
Operation | temperature 0 to 45°C, rel. humidity 10–90% (non-condensing) |
Physical specifications | |
Dimensions | 440mm×400mm× 44mm(W * D *H) |
Weight | < 6.5KG |
Company Profile:
ZISA Technology Limited was created in 2004, based in Beijing.
We are an innovative ICT company for more than 10 years.
ZISA is committed to providing the professional service and solutions to oversea customers, making continuous innovation to meet the requirements of customers.As a global market company, ZISA Fibre PON equipment, wireless AP solutions and xDSL solutions have been reached over 30 countries and regions.
Our team are full of creative and energetic engineers and workers.The innovative,comprehensive IT technique was grasped by us.Some of them has been worked in famous companies.The factory which cooperate with us is T&W with huge productivity.We also have flexible selling module---ODM&OEM,as agent are all welcome.
