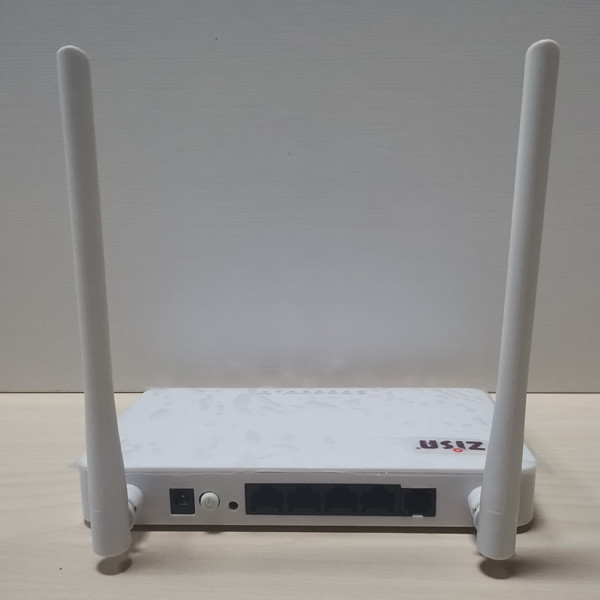

Wireless Wifi Adsl2+ Modem Router Home Networking Gateway Network Terminal 12v

Modulation schemes
 802.11g: 64QAM, 16QAM, QPSK, BPSK,DSSS
 802.11b: CCK, DQPSK, DBPSK
 HT20 and HT40: 64 QAM, 16QAM,QPSK, BPSK
Wireless data rate
 802.11b: 11, 5.5, 2, 1 Mbps per channel,auto fallback for extended range
 802.11g: 54, 48, 36, 24, 18, 12, 9, 6 Mbps per channel, auto fallback for extended range
 HT20: up to 150 Mbps
 HT40: up to 300 Mbps
Operating channels
 802.11b:
– 4: France
– 11: USA and Canada
– 13: Most European countries
– 14: Japan
 802.11g:
– 11: USA and Canada
– 13: Most European countries
– 14: Japan
 HT20:
– 11: USA and Canada
– 13: Most European countries
– 14: Japan
 HT40:
– 3—9: USA and Canada
– 3—9: Most European countries
Transmission distance
 100m indoors coverage area
 300m outdoors coverage area (varying depending on the actual environment)
Security
64-bit, 128-bit WEP, AES, TKIP, WPA,WPA2, 802.1x

Basic Features
 Set IP address and subnet mask at the LAN end and manage domain Name
 VLAN and port binding at the LAN end
 Multi-IP address management at the LAN end
 DHCP server, Option 60/15/42/50/250, and management of multiple address pools
 DHCP Relay, compatible with RFC2131, RFC951, RFC1542
 10M/100M, self-adaptation, half duplex and full duplex management of the LAN port
 Up to eight WAN connections
 Static uplink, configuring of static IP address, subnet mask, DNS, and gateway
 PPPoE uplink, configuring of user name, password, MRU, PAP and CHAP authentication, disconnection upon idle overtime
 DHCP uplink, obtaining the IP address through DHCP
 Bridge uplink
 VLAN at the WAN end and 802.1q VLAN
 NAT and NAPT

Advanced Features
 ALG: TFTP/FTP/PPTP/RTSP/L2TP/H323
 MAC address filtering in the whitelist mode
 Virtual server (NAPT configuration page), meeting the TR098 requirements for port mapping nodes, supporting 16 entries of virtual server configuration
 DNS agent
 Manual configuration of DNS
 QoS:
– Interface management, supporting strict-priority (SP) and DWRR scheduling modes
– Queue management, supporting eight priority queues
– Flow classification management
 Anti-DoS, independent switch for each protection item, and anti-portscanning switch
 IP filtering, security level configuration, blacklist and whitelist based on WAN/LAN end (each list supporting up to 20 entries of IP filtering configuration)
 Ping/Web/Telnet/SSH/FTP/TFTP local access control
 Ping/Web/Telnet/SSH/FTP/TFTP remote access control
 UPnP
 IGMP Snooping and IGMP data control of the port
 IGMP relay
 Static routing management, supporting up to 16 entries of static routing configuration
 Dynamic routing management, RIPV1, RIPV2, active and passive Modes
 SNTP
 URL filtering, blacklist and whitelist filtering, supporting up to 20 URL entries
 DMZ

Status Enquiry
 System information
 ADSL information
 Host list at the LAN end
 WAN connection status and statistics information
 LAN statistics information

Configuration Management
 Web, TR069 and SNMP configuration management
 Telnet and SSH
 Restore to the factory defaults and keep key parameters, reboot the router
 Two-level user management, including administrator and user
 Ping diagnostics
 Software version upgrade, double Image backup, and HTTP upgrade
 Upgrade and download of the configuration file of HTTP and TFTP server
 Record log, upload log through TFTP, clear log, and download log through HTTP

External Connectors
 1 x RJ11 DSL interface
 1 x WPS/WLAN button
 1 x reset button
 4 x RJ45 Ethernet interfaces
 1 x USB host 2.0 interface
 1 x power interface
 1 x power switch

Ethernet Interface Features
 Fully compliant with IEEE802.3/802.3u standards
 10Base-T and 100Base-TX
 Half duplex and full duplex
 Auto MDI/MDIX
 Flow control

Consumption
7W
