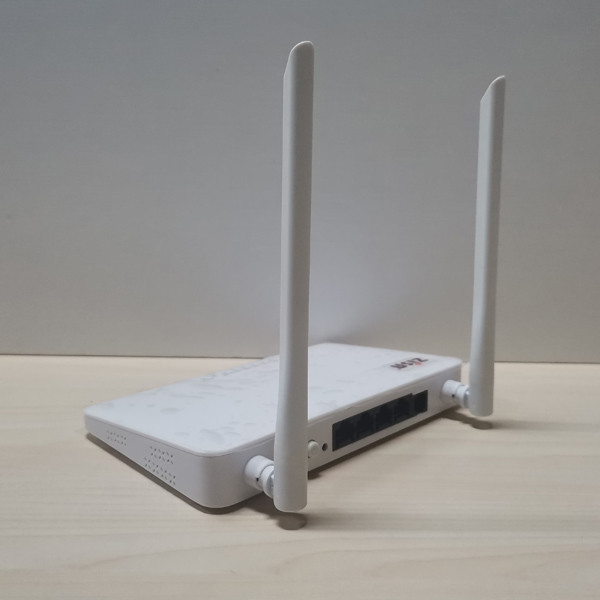

Wifi Adsl2 Modem Router Tr069 Dual Band Rj45 Gigabit Port 2.4g

Basic Information
Place of Origin: CHINA
Brand Name: ZISA
Certification: CE
Model Number: A104WL-C
Minimum Order Quantity: 1
Price: 18-22USD
Packaging Details: box 1kg
Delivery Time: 5-8weeks
Payment Terms: T/T
Supply Ability: 10000PCS
Detail Information
Product Name: ADSL2+ Modem Port: 4 LAN+1RJ11
Application: DSLAM TO ADSL Color: WHITE
Type: ADSL MODEM Power Supply: 12V 1A
Certification: CE Chipset: Realtek 8676S
High Light:

wifi adsl2 modem


dual band adsl2 modem


2.4g adsl2+ modem router

Product Description

Wifi Modem Router TR069 Dual Band RJ45 Gigabit Port 2.4G ADSL2 + Modem




A104WL is a high-performance wireless ADSL router, uplink rate up to 1 Mbps and downlink rate up to 24 Mbps. It provides one RJ11 telephone interface, four RJ45 Ethernet interfaces, and one USB host 2.0 interfaces. The telephone interface is used for connecting to the Internet provided by the telecom carrier. The Ethernet interfaces are used for connecting to the computer, through which you can access the Internet. Computers that are connected with the router through the Ethernet interfaces can establish a small local network area (LAN). Those computers can communicate with each other, sharing resources and files. A104WL is an ideal broadband CPE solution for both home users who wish to share high-speed Internet access and small offices that wish to do business on the Internet.



Applications Diagram


  • Home gateway
  • Small enterprises application
  • TV over IP (IPTV)
  • Internet access sharing
  • High rate broadband sharing
  • Files and resources of LAN sharing
  • Network online gaming
  • USB storage


System Specifications

Chipset RTL8676S+RTL8271B+RTL8192ERE

DDR/SDR SDRAM 8/16/32/64 MB DDR/SDR (inside the RTL8676S)

Serial Flash 8 MB

Environment Requirement

Operating Temperature 0ºC—40ºC

Storage Temperature -20ºC—70ºC

Operating Humidity 10%—95%, non-condensing

Storage Humidity 5%—95%, non-condensing

Power Supply 12 V DC, 1 A







Q1. ZISA product the quality of products.
A: As the top class total solution provider and productive service provider, we provide high quality of service to Tier1 Telco customer and Vendors. With the genius design and software customization expertise, we can leverage the best service to our customers. ZISA Product quality is same as Huawei and ZTE, and ZISA has complete product line.

Flexible , Smart and selective producing system, the top manufacture in vertical career choose our team, with decade of global market and professional experience.


Q2. ZISA after-sales service.
A:ZISA has complete software and hardware research and development. Provide reqiurment development, bug modify and 24h on-line support. For significant customers, ZISA can send technician to support.

Q3. Ways of cooperation with ZISA.
A :ZISA welcome integrator or agent to agent ZISA product. If agent has enough advantages in the market, ZISA appoint you ZISA sole agent.

Q4. About factory visit.
A :ZISA welcome significant customers to visit ZISA factory. Please make an appointment in two weeks.

Q5. About product pricing.
A :ZISA only publish sample price. The price of different agent and OEM customer is secret. ZISA gives specific price for significant projects and customers. Besides, ZISA only provide goods to agent in agent area.
