| Place of Origin: | CHINA |
|---|---|
| Brand Name: | ZISA |
| Certification: | CE |
| Model Number: | MA5616 |
| Minimum Order Quantity: | 1 |
| Price: | 265-2400USD |
| Packaging Details: | box 14kg |
| Delivery Time: | 1weeks |
| Payment Terms: | T/T |
| Supply Ability: | 100pcs |
| Product Name: | PDIA MINI DSLAM | TYPE: | ADSL2+ AC POWER |
|---|---|---|---|
| Card: | 4 Card | Warranty: | 1 YEAR |
| Colour: | Blue | Certification: | CE |
| Operating Temperature: | -40℃ To 65℃; | Management: | CLI |
| High Light: | dslam huawei ma5616,1u dslam huawei ma5616,1u dslam huawei 5616 |
||

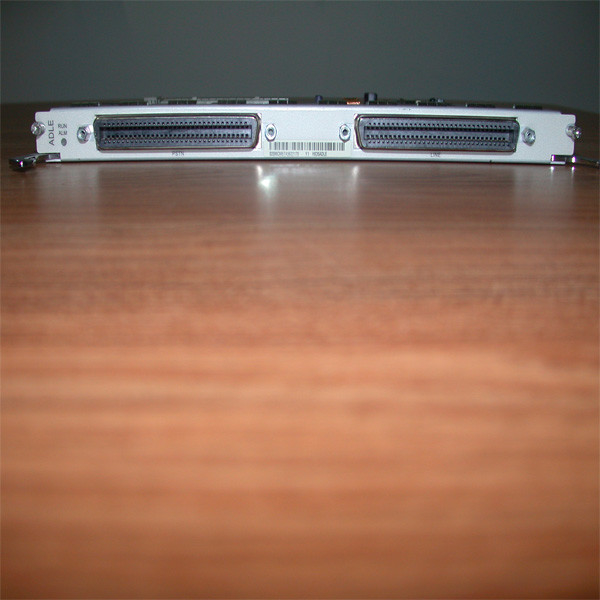

ZISA Huawei MA5616 DSLAM 1U PAIB/PAIA/PDIA CCUE/CCUB/CCUD ADLE VDLE
The SmartAX MA5616 (the MA5616 for short) is an industry-leading remote multi dwelling unit (MDU) launched by Huawei, which supports flexible configurations and provides broadband services on Fiber To The Building (FTTB) and Fiber To The Curb (FTTC) networks. The MA5616 is a box-type device measuring 2-U high and 19-inch wide and providing two GPON or GE uplink ports and ADSL2+,VDSL2, SHDSL, POTS, ISDN, FE and GE ports. The MA5616 features a high access density, high processing capability, high reliability, easy maintenance, environment-friendlily and energy conservation, and future-oriented architecture design and can be used in corridors, cabinets, indoor, and outdoor usage scenarios.
Specifications
| Features | CCUB control board |
| Operating temperature | -40℃ to 65℃; startup at -25℃ |
| Humidity | 5% to 95% (non-condensing) |
| Heat dissipation mode | Providing fans for heat dissipation. The rotating speed can be automatically adjusted. |
| Power supply | AC: 220 V/110 V DC: -48 V |
| Backup power | Support for 48-V backup power Support for lead-acid batteries and LiFePO4 batteries |
| Weight | 4.8 kg (empty chassis) 7.2 kg (full configuration) |
Features
| Features | CCUB control board |
| GPON | ITU G.984-compliance |
| 8 T-CONTs | |
| 128 GEM ports | |
| Broadband | 4K VLANs, supporting QinQ and stacking VLANs |
| 4K MAC addresses, supporting VMAC | |
| VLAN switching | |
| Conversion from PPPoA to PPPoE and from IPoA to IPoE | |
| 802.1p, supporting PQ and WRR flow control, and ACL | |
| Voice | SIP and H.248 |
| ISDN BRA port | |
| POTS short-loop design | |
| ADSL2+ | Compliance with ITU-T G992.1 to G992.5, and T1.413 |
| Annex M | |
| ADSL2 + bonding (2-wire, 4-wire, 6-wire, or 8-wire) |
FAQ
Q1. ZISA product the quality of products.
A: As the top class total solution provider and productive service provider, we provide high quality of service to Tier1 Telco customer and Vendors. With the genius design and software customization expertise, we can leverage the best service to our customers. ZISA Product quality is same as Huawei and ZTE, and ZISA has complete product line.
Flexible , Smart and selective producing system, the top manufacture in vertical career choose our team, with decade of global market and professional experience.
Q2. ZISA after-sales service.
A:ZISA has complete software and hardware research and development. Provide reqiurment development, bug modify and 24h on-line support. For significant customers, ZISA can send technician to support.
Q3. Ways of cooperation with ZISA.
A :ZISA welcome integrator or agent to agent ZISA product. If agent has enough advantages in the market, ZISA appoint you ZISA sole agent.
Q4. About factory visit.
A :ZISA welcome significant customers to visit ZISA factory. Please make an appointment in two weeks.
Q5. About product pricing.
A :ZISA only publish sample price. The price of different agent and OEM customer is secret. ZISA gives specific price for significant projects and customers. Besides, ZISA only provide goods to agent in agent area.
