| Place of Origin: | CHINA |
|---|---|
| Brand Name: | ZISA |
| Certification: | CE |
| Model Number: | MA5616 |
| Minimum Order Quantity: | 1 |
| Price: | 265-2400USD |
| Packaging Details: | box 14kg |
| Delivery Time: | 1weeks |
| Payment Terms: | T/T |
| Supply Ability: | 100pcs |
| Product Name: | ADLE Mini DSLAM | Type: | ADLE PBX |
|---|---|---|---|
| Port: | 32--128 Adsl Port | Warranty: | 1 YEAR |
| High: | 2U | Certification: | CE |
| Operating Temperature: | -40℃ To 65℃; Startup At -25℃ | Management: | Telnet And CLI |
| High Light: | 32 channel adsl2+ dslam,ma5616 adsl2+ dslam,32 channel smartax ma5616 |
||

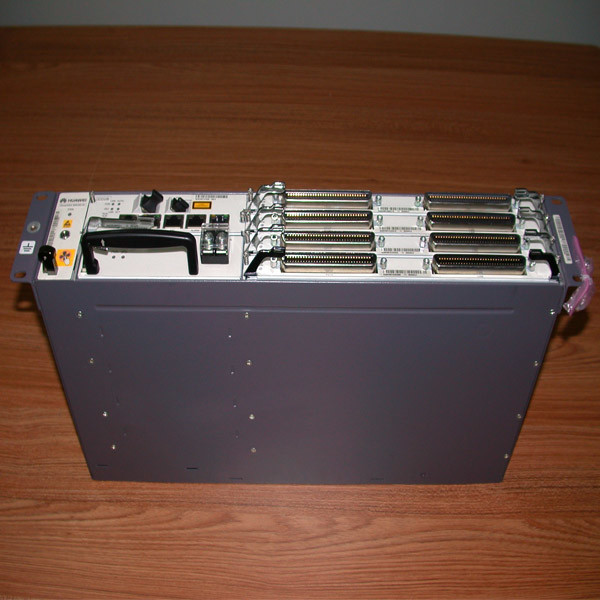

ADLE/ADEE DSLAM MA5616 CCUE/CCUB/CCUD ADLE/ADEE 32-channel ADSL2+
The SmartAX MA5616 multi-dwelling unit (MDU) has the following features: high access density, superior processing, high reliability, easy maintenance, energy saving, and an architectural design with an eye on the future.
The MA5616 provides ADSL2+, VDSL2, SHDSL, POTS, FE, P2P, ISDN, and combo user ports, and it supports dual upstream transmission channels through auto-adaptive GPON and GE ports. The MA5616 can be installed indoor and outdoor in a range of locations, such as in corridors and cabinets, and can be used in fiber to the curb (FTTC), fiber to the building (FTTB), mini-DSLAM, and mini-MSAN scenarios.
The MA5616's high-density and multi-service platform help reduce operator expenditure on parts, and its plug-and-play feature helps increase service provisioning efficiency and reduce deployment costs.
The high reliability of the MA5616 helps reduce device maintenance costs, and its service emulation and remote fault location features help reduce operation and maintenance costs.
With its energy-saving design, the MA5616 uses energy more efficiently, which in turn increases profitability.
Features
| Features | CCUB control board | CCUC control board |
| GPON | ITU G.984-compliance | ITU G.984-compliance |
| 8 T-CONTs | 32 T-CONTs | |
| 128 GEM ports | 1000 GEM ports | |
| Broadband | 4K VLANs, supporting QinQ and stacking VLANs | 4K VLANs, supporting QinQ and stacking VLANs |
| 4K MAC addresses, supporting VMAC | 4K MAC addresses, supporting VMAC | |
| VLAN switching | VLAN switching | |
| Conversion from PPPoA to PPPoE and from IPoA to IPoE | Conversion from PPPoA to PPPoE and from IPoA to IPoE | |
| 802.1p, supporting PQ and WRR flow control, and ACL | 802.1p, supporting PQ and WRR flow control, and ACL | |
| Voice | SIP and H.248 | SIP and H.248 |
| ISDN BRA port | ISDN BRA port | |
| POTS short-loop design | POTS short-loop design | |
| ADSL2+ | Compliance with ITU-T G992.1 to G992.5, and T1.413 | Compliance with ITU-T G992.1 to G992.5, and T1.413 |
| Annex M | Annex M | |
| ADSL2 + bonding (2-wire, 4-wire, 6-wire, or 8-wire) | ADSL2 + bonding (2-wire, 4-wire, 6-wire, or 8-wire) | |
| VDSL2 | G993.2-compliance | G993.2-compliance |
| 8a, 8b, 8c, 8d, 12a, 12b, 17a, and 30a profiles | 8a, 8b, 8c, 8d, 12a, 12b, 17a, and 30a profiles | |
| 2-wire VDSL2 bonding | 2-wire VDSL2 bonding | |
| SHDSL | G991.2-compliance | G991.2-compliance |
| G.SHDSL.Bis, supporting ATM and PTM | G.SHDSL.Bis, supporting ATM and PTM | |
| EFM bonding (2-wire, 4-wire, 6-wire, or 8-wire) | EFM bonding (2-wire, 4-wire, 6-wire, or 8-wire) | |
| Multicast | IGMPv2 and IGMPv3 | IGMPv2 and IGMPv3 |
| IGMP proxy and IGMP snooping | IGMP proxy and IGMP snooping | |
| A maximum of 1024 configurable multicast programs in the systemA maximum of 256 multicast usersA maximum of 16 concurrent multicast programs for each user | A maximum of 1024 configurable multicast programs in the systemA maximum of 256 multicast usersA maximum of 16 concurrent multicast programs for each user | |
| Security | PPPoE + and DHCP option82 | PPPoE + and DHCP option82 |
| Static and dynamic MAC address binding | Static and dynamic MAC address binding | |
| Anti-MAC and anti-IP spoofing; source MAC address and IP address filtering | Anti-MAC and anti-IP spoofing; source MAC address and IP address filtering | |
| Anti-DoS attack and firewall | Anti-DoS attack and firewall | |
| Maintenance and management | SNMPv1, SNMPv2, and SNMPv3 | SNMPv1, SNMPv2, and SNMPv3 |
| Telnet and SSHv2 | Telnet and SSHv2 | |
| Remote and batch pre-deployment | Remote and batch pre-deployment | |
| Remote upgrade and monitoring | Remote upgrade and monitoring |
