| Place of Origin: | CHINA |
|---|---|
| Brand Name: | ZISA |
| Certification: | CE |
| Model Number: | OP1604E |
| Minimum Order Quantity: | 1 |
| Price: | 560-586usd |
| Packaging Details: | 442mm×227mm× 44mm(W * D *H) 3.0KG |
| Delivery Time: | 1week |
| Payment Terms: | T/T |
| Supply Ability: | 1000pcs |
| Product Name: | 4 Ge Sfp Epon OLT | Warranty: | 9 Months |
|---|---|---|---|
| Type: | FTTx | Port: | 2 1ge SFP |
| Operating Temperature: | Temperature 0 To 45°C, | Management Mode: | CLI, Console, Telnet And WEB |
| Storage Temperature: | Temperature -10 To 70°C, | Oem/odm: | Can Do |
| High Light: | ftth olt 2 portas epon,10ge olt 2 portas epon,4 ge gpon epon olt |
||

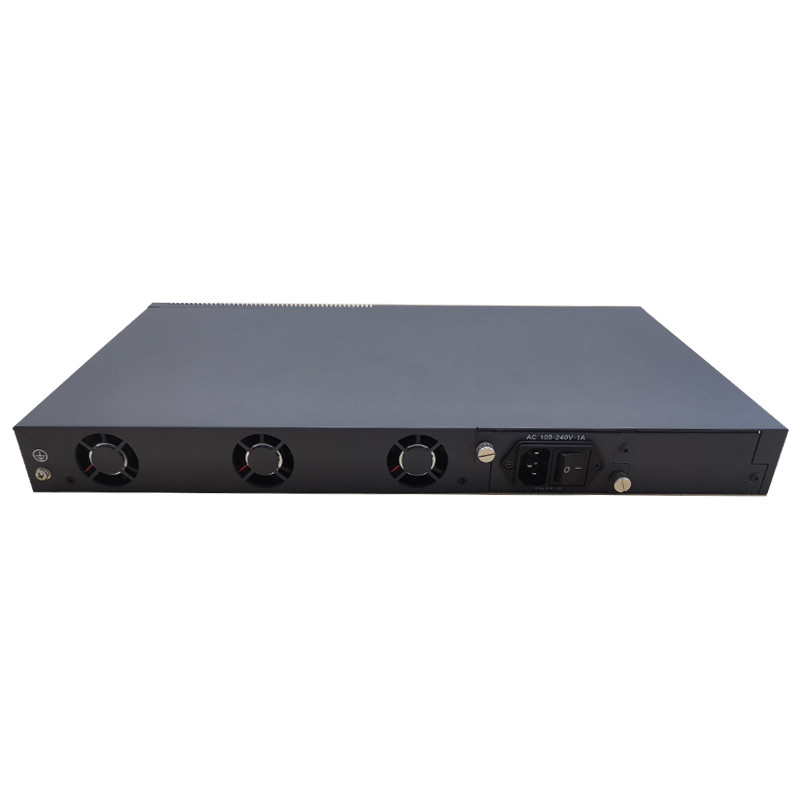

Zisa New Fiber To Home 4 Ge Uplink 2 10GE Uplink Gpon Epon Olt
Product Overview
OP1604E is only 1U in height, easy to install and maintain, and save space. Supports mixed networking of different types of ONU, which can save a lot of costs for operators.
Software Feature
|
Attributes |
OP1604E |
| PON |
Comply with IEEE 802.3ah EPON standard 20KM transmission distance 1:64 Max splitting ratio |
| VLAN |
Support 4K VLAN Support VLAN based on port, MAC and protocol Support dual Tag VLAN, port-based static QINQ and flexible QINQ |
| MAC |
16K Mac address Support static MAC address setting Support black hole MAC address filtering Support port MAC address limit |
| Ring network protocol |
Support STP/RSTP/MSTP Support ERPS Ethernet ring network protection protocol Support Loopback-detection port loopback detection |
| Port control |
Support two-way bandwidth control Support port storm suppression Support 9K Jumbo ultra-long frame forwarding |
| Port aggregation |
Support static link aggregation Support dynamic LACP Each aggregation group supports a maximum of 8 ports |
| Mirroring |
Support port mirroring Support stream mirroring |
| ACL |
Support standard and extended ACL Support ACL policy based on time period Provide flow classification and flow definition based on IP header information such as source/destination MAC address, VLAN, 802.1p, TOS, DSCP, source/destination IP address, L4 port number, protocol type, etc. |
| QoS |
Support flow rate limiting function based on custom business flow Supports mirroring and redirection functions based on custom business flows Support priority marking based on custom service flow, support 802.1P, DSCP priority Remark capability Support port-based priority scheduling function, support queue scheduling algorithms such as SP/WRR/SP+WRR |
| Safety |
Support user hierarchical management and password protection Support IEEE 802.1X authentication Support Radius& TACA CS+ authentication Support MAC address learning limit, support black hole MAC function Support port isolation Support broadcast message rate suppression Support IP Source Guard Support ARP flood suppression and ARP spoofing protection Support DOS attack and virus attack protection |
| Layer 3 |
Support ARP learning and aging Support static route Support dynamic route RIP/OSPF/BGP/ISIS Support VRRP |
| System management |
CLI,Telnet,WEB,SNMP V1/V2/V3,SSH2.0 Support FTP, TFTP file upload and download Support RMON Support SNTP Support system work log Support LLDP neighbor device discovery protocol Support 802.3ah Ethernet OAM Support RFC 3164 Syslog Support Ping and Traceroute |
