Ftth Sfp Epon Fiberhome 4ge Uplink Gpon Fibre 10g 4 Epon Ieee 802.3ah

Basic Information
Place of Origin: CHINA
Brand Name: ZISA
Certification: CE
Model Number: OP1604E
Minimum Order Quantity: 1
Price: 560-586usd
Packaging Details: 440mm×220mm× 44mm(W * D *H) 3.0KG
Delivery Time: 1week
Payment Terms: T/T
Supply Ability: 1000pcs
Detail Information
Product Name: 4GE Epon GPON OLT Model: OP1604E
Warranty: 1 YEAR Pon Port: 4EPON
Operating Temperature: Temperature 0 To 45°C, Rel. Humidity 10–90% (non-condensing) Management Mode: Command-line Interface(CLI), Console, Telnet And WEB Configuration
Storage Temperature: Temperature -10 To 70°C, Rel. Humidity 10–90% (non-condensing) Oem/odm: Yes
High Light:

4ge epon fiberhome

,

ieee 802.3ah epon fiberhome

,

ftth epon gpon olt


Product Description

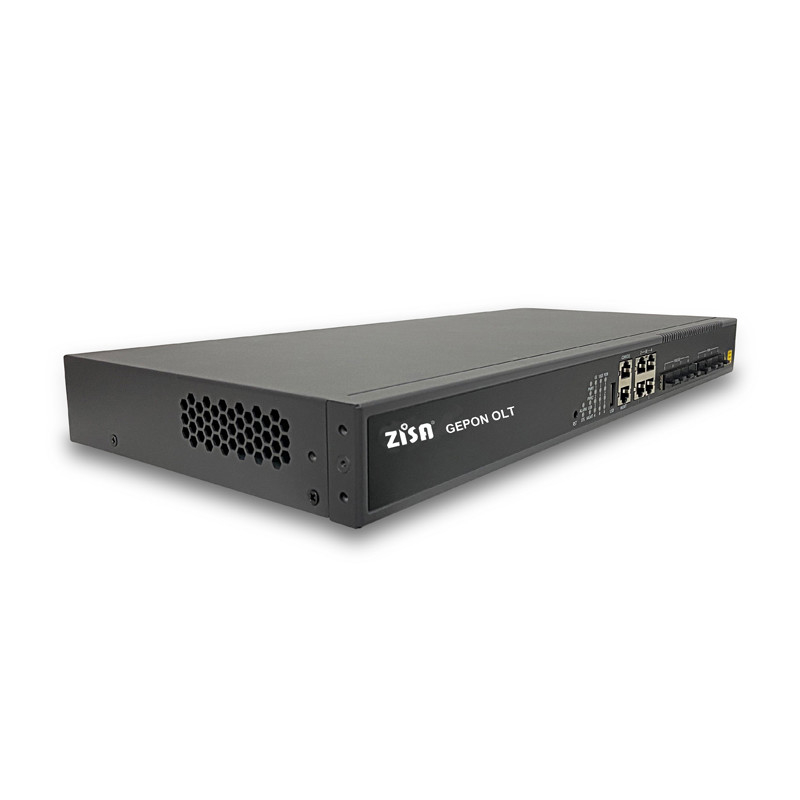

New Ftth Sfp Epon 4ge Uplink Gpon Fibre 10g 4 EPON Ieee 802.3ah

Product Overview


OP1604E is highly integrated, medium-capacity EPON OLT for operators, ISPs, enterprises and park applications. The product follows the IEEE802.3ah technical standard. The product has good openness, strong compatibility, high reliability, and complete software functions. It can be widely used in operators' FTTH access, VPN, government and enterprise park access, campus network access, ETC.

OP1604E is only 1U in height, easy to install and maintain, and save space. Supports mixed networking of different types of ONU, which can save a lot of costs for operators.




Hardware Feature



Attributes OP1604E
Exchange capacity 96Gbps
Packet forwarding rate 71.424Mpps
Memory and storage memory:512MB, storage:32MB
Management port Console
Port 4*GEPON Port,4*10/100/1000M Base-T,4*1000M Base-X SFP/4*10GE SFP+
Weight ≤3.5kg
Fan Fixed fans (two fans)
Power

AC: 100~240V ; 47/63Hz;

DC: 36V~75V;

Power consumption ≤38W

Dimensions

(Width * height * depth)

440mm*44mm*200mm
Environment friendly China ROHS; EEE
Environment temperature

Working Temperature:-10℃~55℃

Storge temperature:-40℃~70℃

Environment humidity

Operating humidity: 10%~95% (non-condensing)

Storage humidity: 10%~95% (non-condensing)





Software Feature



Attributes

OP1604E
PON

Comply with IEEE 802.3ah EPON standard

20KM transmission distance

1:64 Max splitting ratio

VLAN

Support 4K VLAN

Support VLAN based on port, MAC and protocol

Support dual Tag VLAN, port-based static QINQ and flexible QINQ

MAC

16K Mac address

Support static MAC address setting

Support black hole MAC address filtering

Support port MAC address limit

Ring network protocol

Support STP/RSTP/MSTP

Support ERPS Ethernet ring network protection protocol

Support Loopback-detection port loopback detection

Port control

Support two-way bandwidth control

Support port storm suppression

Support 9K Jumbo ultra-long frame forwarding

Port aggregation

Support static link aggregation

Support dynamic LACP

Each aggregation group supports a maximum of 8 ports








FAQ

Q1. ZISA product the quality of products.
A: As the top class total solution provider and productive service provider, we provide high quality of service to Tier1 Telco customer and Vendors. With the genius design and software customization expertise, we can leverage the best service to our customers. ZISA Product quality is same as Huawei and ZTE, and ZISA has complete product line.

Flexible , Smart and selective producing system, the top manufacture in vertical career choose our team, with decade of global market and professional experience.

Q2. ZISA after-sales service.
A:ZISA has complete software and hardware research and development. Provide reqiurment development, bug modify and 24h on-line support. For significant customers, ZISA can send technician to support.

Q3. Ways of cooperation with ZISA.
A :ZISA welcome integrator or agent to agent ZISA product. If agent has enough advantages in the market, ZISA appoint you ZISA sole agent.

Q4. About factory visit.
A :ZISA welcome significant customers to visit ZISA factory. Please make an appointment in two weeks.

Q5. About product pricing.
A :ZISA only publish sample price. The price of different agent and OEM customer is secret. ZISA gives specific price for significant projects and customers. Besides, ZISA only provide goods to agent in agent area.
