Sc Apc Onu Epon Wifi Fiber To Home Ftth Solution

Basic Information
Place of Origin: CHINA
Brand Name: ZISA
Certification: CE
Model Number: OP153W-RF
Minimum Order Quantity: 1
Price: 42-46USD
Packaging Details: box 0.5kg
Delivery Time: 5-8weeks
Payment Terms: T/T
Supply Ability: 10000PCS
Detail Information
Product Name: WIFI+CATV+1POTs Xpon ONU Application: FTTB
Warranty: 10 Months Type: SC APC CATV Fiber Port
Color: WHITE Power Supply: 12V 1000MA
Certification: CE Chipset: Realtek 9601D
High Light:

sc apc onu epon wifi


fiber to home onu epon wifi


ftth wifi epon onu

Product Description

SC APC Fiber to Home EPON WIFI+CATV+1POTs ONU Modem Router Bridge FTTH Solution



Product Overview


  • 1G1F+WIFI+CATV+POTs are based on mature and stable, cost-effective XPON technology. It can switch automatically with EPON and GPON mode when it access to the EPON OLT or GPON OLT.
  • 1G1F+WIFI+CATV+POTsarefullycompliantwithtechnical regulations such as ITU-T G.984.xand IEEE802.3ah.
  • 1G1F+WIFI+CATV+POTs are designed by Realtek chipset 9602C.




  • Support SIP Protocol for VoIP Service
  • Integrated line testing compliant with GR-909 on POTS
  • Support 802.11n WIFI (2x2 MIMO) function
  • Support NAT, Firewall function.
  • Support Flow & Storm Control , Loop Detection, Port Forwarding and Loop-Detect
  • Support port mode of VLAN configuration


Ordering information


Product Name Product Model Descriptions
1G1F+WIFI+CATV+POTs XPON OP153W-RF 1*10/100/1000M and 1*10/100M Ethernet interface, 1 GPON interface, 1 POTS interface, 1 RF interface, built-in FWDM, support Wi-Fi function, Plastic casing, external power supply adapter



Product Specifications


Technical Item Details
CATV Interface

RF, optical power : +2~-18dBm

Optical reflection loss: ≥45dB

Optical receiving wavelength: 1550±10nm

RF frequency range: 47~1000MHz, RF output impedance: 75Ω

RF output level: ≥ 82dBuV(-7dBm optical input)

AGC range: +2~-7dBm/-4~-13dBm/-5~-14dBm

MER: ≥32dB(-14dBm optical input), >35(-10dBm)



Max 1km distance

Balanced Ring, 50V RMS



Panel lights and Introduction


PilotLamp Status Description
WIFI On The WIFI interface is up.
Blink The WIFI interface is sending or/and receiving data (ACT).
Off The WIFI interface is down.
WPS Blink The WIFI interface is securely establishing a connection.
Off The WIFI interface does not establish a secure connection.
PWR On The device is powered up.
Off The device is powered down.




Q1. ZISA product the quality of products.
A: As the top class total solution provider and productive service provider, we provide high quality of service to Tier1 Telco customer and Vendors. With the genius design and software customization expertise, we can leverage the best service to our customers. ZISA Product quality is same as Huawei and ZTE, and ZISA has complete product line.

Flexible , Smart and selective producing system, the top manufacture in vertical career choose our team, with decade of global market and professional experience.


Q2. ZISA after-sales service.
A:ZISA has complete software and hardware research and development. Provide reqiurment development, bug modify and 24h on-line support. For significant customers, ZISA can send technician to support.

Q3. Ways of cooperation with ZISA.
A :ZISA welcome integrator or agent to agent ZISA product. If agent has enough advantages in the market, ZISA appoint you ZISA sole agent.

Q4. About factory visit.
A :ZISA welcome significant customers to visit ZISA factory. Please make an appointment in two weeks.

Q5. About product pricing.
A :ZISA only publish sample price. The price of different agent and OEM customer is secret. ZISA gives specific price for significant projects and customers. Besides, ZISA only provide goods to agent in agent area.

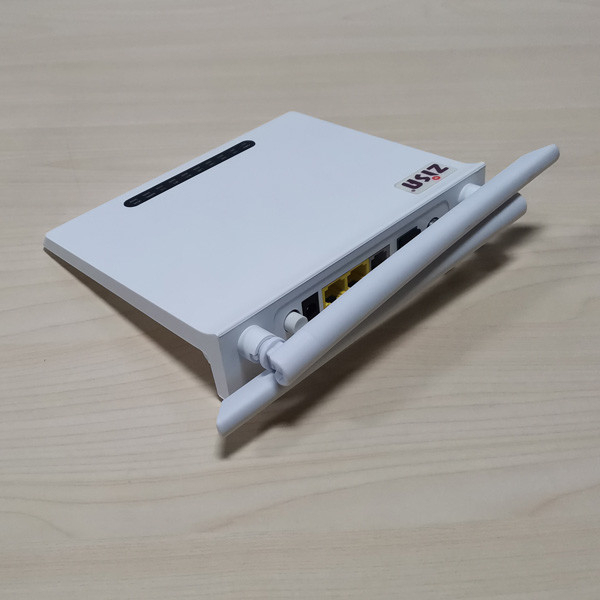

Sc Apc Onu Epon Wifi Fiber To Home Ftth Solution 0
