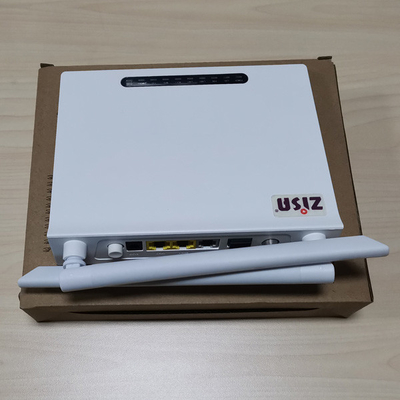

English Firmware Wifi Epon Onu Ftth Solution 12v 1000ma

Basic Information
Place of Origin: CHINA
Brand Name: ZISA
Certification: CE
Model Number: OP153W-RF
Minimum Order Quantity: 1
Price: 42-46USD
Packaging Details: box 0.5kg
Delivery Time: 5-8weeks
Payment Terms: T/T
Supply Ability: 10000PCS
Detail Information
Product Name: WIFI+CATV+1POTs Xpon ONU Application: Fiber To Office
Warranty: 12 Months Type: WIFI CATV 1POTs SC/APC
Color: WHITE Power Supply: 12V 1000MA
Certification: CE Chipset: Realtek 9601D
High Light:

english firmware wifi epon onu

,

ftth solution wifi epon onu

,

12v 1000ma onu epon wifi


Product Description

English Firmware WIFI+CATV+1POTs EPON GPON ONU Modem Router Splitter FTTH Solution



Feature



  • Supports Dual Mode (can access GPON/EPONOLT).
  • Supports GPON G.984/G.988 standardsand IEEE802.3ah.
  • Support CATV interface for Video Service and remote control by Major OLT
  • Support SIP Protocol for VoIP Service
  • Integrated line testing compliant with GR-909 on POTS
  • Support 802.11n WIFI (2x2 MIMO) function



Product Overview

  • 1G1F+WIFI+CATV+POTs is designed as HGU (Home Gateway Unit) in deferent FTTH solutions; the carrier-class FTTH application provides data service access.
  • 1G1F+WIFI+CATV+POTs are based on mature and stable, cost-effective XPON technology. It can switch automatically with EPON and GPON mode when it access to the EPON OLT or GPON OLT.



Product Specifications



Technical Item Details

POTS Port

RJ11

Max 1km distance

Balanced Ring, 50V RMS

LED 10 LED, For Status of WIFI,WPS,PWR,LOS,PON,LAN1~LAN2, WORN,NORMAL(CATV), FXS
Push-Button 4, for Function of Power on/off, Reset, WPS, WIFI
Operating condition

Temperature : 0℃~+50℃

Humidity :10%~90%(non-condensing)

Storing Condition

Temperature : -40℃~+60℃

Humidity :10%~90%(non-condensing)

Power supply DC 12V/1A
Power Consumption <6W
Net Weight <0.4kg





Ordering information



Product Name Product Model Descriptions
1G1F+WIFI+CATV+POTs XPON OP153W-RF 1*10/100/1000M and 1*10/100M Ethernet interface, 1 GPON interface, 1 POTS interface, 1 RF interface, built-in FWDM, support Wi-Fi function, Plastic casing, external power supply adapter








FAQ



Q1. ZISA product the quality of products.
A: As the top class total solution provider and productive service provider, we provide high quality of service to Tier1 Telco customer and Vendors. With the genius design and software customization expertise, we can leverage the best service to our customers. ZISA Product quality is same as Huawei and ZTE, and ZISA has complete product line.

Flexible , Smart and selective producing system, the top manufacture in vertical career choose our team, with decade of global market and professional experience.



Q2. ZISA after-sales service.
A:ZISA has complete software and hardware research and development. Provide reqiurment development, bug modify and 24h on-line support. For significant customers, ZISA can send technician to support.

Q3. Ways of cooperation with ZISA.
A :ZISA welcome integrator or agent to agent ZISA product. If agent has enough advantages in the market, ZISA appoint you ZISA sole agent.

Q4. About factory visit.
A :ZISA welcome significant customers to visit ZISA factory. Please make an appointment in two weeks.

Q5. About product pricing.
A :ZISA only publish sample price. The price of different agent and OEM customer is secret. ZISA gives specific price for significant projects and customers. Besides, ZISA only provide goods to agent in agent area.
