Op153w-Rf Epon Onu 1ge Fiber To Home Olt Splitter Ftth Solution

Basic Information
Place of Origin: CHINA
Brand Name: ZISA
Certification: CE
Model Number: OP153W-RF
Minimum Order Quantity: 1
Price: 42-46USD
Packaging Details: box 0.5kg
Delivery Time: 5-8weeks
Payment Terms: T/T
Supply Ability: 10000PCS
Detail Information
Product Name: ZISA CATV Epon ONU Application: EPON ONU
Warranty: 12 MONTH Type: FTTH EPON ONU
Color: WHITE Power Supply: 12V 1000MA
Certification: CE Chipset: Realtek 9601D
High Light:

op153w-rf epon onu 1ge


fiber to home epon onu 1ge


ftth epon 1ge onu

Product Description

OP153W-RF Fiber to Home 1GE EPON ONU EPON OLT Splitter FTTH Solution




  • Support SIP Protocol for VoIP Service
  • Integrated line testing compliant with GR-909 on POTS
  • Support 802.11n WIFI (2x2 MIMO) function
  • Support NAT, Firewall function.
  • Support Flow & Storm Control , Loop Detection, Port Forwarding and Loop-Detect


Product Overview


  • 1G1F+WIFI+CATV+POTs are compliant with IEEE802.11n STD, adopts with 2x2 MIMO, the highest rate up to 300Mbps.
  • 1G1F+WIFI+CATV+POTsarefullycompliantwithtechnical regulations such as ITU-T G.984.xand IEEE802.3ah.
  • 1G1F+WIFI+CATV+POTs are designed by Realtek chipset 9602C.


Product Specifications


Technical Item Details
PON interface

1 G/EPON port(EPON PX20+ and GPON Class B+)

Upstream: 1310nm; Downstream: 1490nm

SC/APC connector

Receiving sensitivity: ≤-27dBm

Transmitting optical power: 0~+4dBm

Transmission distance: 20KM

LAN interface 1x10/100/1000Mbps and 1x10/100Mbps auto adaptive Ethernet interfaces. Full/Half, RJ45 connector
WIFI Interface

Compliant with IEEE802.11b/g/n

Operating frequency: 2.400-2.4835GHz

support MIMO, rate up to 300Mbps

2T2R,2 external antenna 5dBi

Support: Multiple SSID


Modulation type: DSSS,CCK and OFDM

Encoding scheme: BPSK,QPSK,16QAM and 64QAM

CATV Interface

RF, optical power : +2~-18dBm

Optical reflection loss: ≥45dB

Optical receiving wavelength: 1550±10nm

RF frequency range: 47~1000MHz, RF output impedance: 75Ω

RF output level: ≥ 82dBuV(-7dBm optical input)

AGC range: +2~-7dBm/-4~-13dBm/-5~-14dBm

MER: ≥32dB(-14dBm optical input), >35(-10dBm)



Panel lights and Introduction


PilotLamp Status Description
WIFI On The WIFI interface is up.
Blink The WIFI interface is sending or/and receiving data (ACT).
Off The WIFI interface is down.
WPS Blink The WIFI interface is securely establishing a connection.
Off The WIFI interface does not establish a secure connection.
PWR On The device is powered up.
Off The device is powered down.
LOS Blink The device doses not receive optical signals or with low signals.
Off The device has received optical signal.





Q1. ZISA product the quality of products.
A: As the top class total solution provider and productive service provider, we provide high quality of service to Tier1 Telco customer and Vendors. With the genius design and software customization expertise, we can leverage the best service to our customers. ZISA Product quality is same as Huawei and ZTE, and ZISA has complete product line.

Flexible , Smart and selective producing system, the top manufacture in vertical career choose our team, with decade of global market and professional experience.


Q2. ZISA after-sales service.
A:ZISA has complete software and hardware research and development. Provide reqiurment development, bug modify and 24h on-line support. For significant customers, ZISA can send technician to support.

Q3. Ways of cooperation with ZISA.
A :ZISA welcome integrator or agent to agent ZISA product. If agent has enough advantages in the market, ZISA appoint you ZISA sole agent.

Q4. About factory visit.
A :ZISA welcome significant customers to visit ZISA factory. Please make an appointment in two weeks.

Q5. About product pricing.
A :ZISA only publish sample price. The price of different agent and OEM customer is secret. ZISA gives specific price for significant projects and customers. Besides, ZISA only provide goods to agent in agent area.

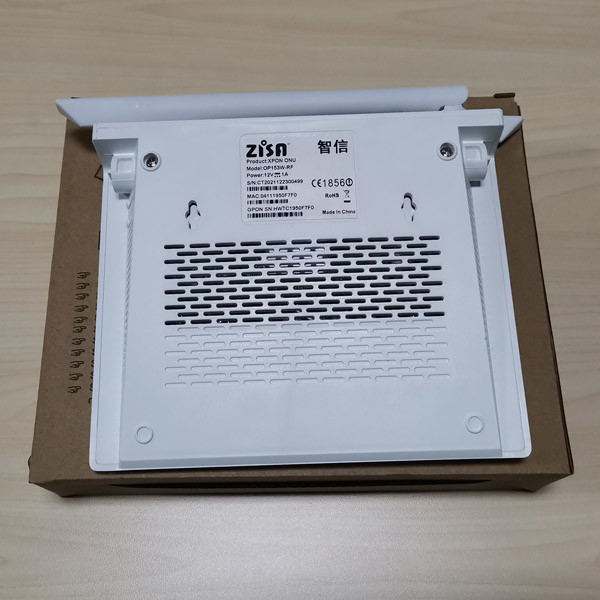

Op153w-Rf Epon Onu 1ge Fiber To Home Olt Splitter Ftth Solution 0
