| Place of Origin: | CHINA |
|---|---|
| Brand Name: | ZISA |
| Certification: | CE |
| Model Number: | OP151 |
| Minimum Order Quantity: | 1 |
| Price: | 12-15USD |
| Packaging Details: | box 0.5kg |
| Delivery Time: | 5-8weeks |
| Payment Terms: | T/T |
| Supply Ability: | 10000PCS |
| Product Name: | ZISA 1GE Epon ONU | Application: | EPON ONU |
|---|---|---|---|
| Warranty: | 12 MONTH | Type: | FTTH EPON ONU |
| Color: | WHITE | Power Supply: | 12V 1000MA |
| Certification: | CE | Chipset: | Realtek 9601D |
| High Light: | op151 onu epon fiberhome,fiberhome 1g epon onu,1ge onu epon fiberhome |
||

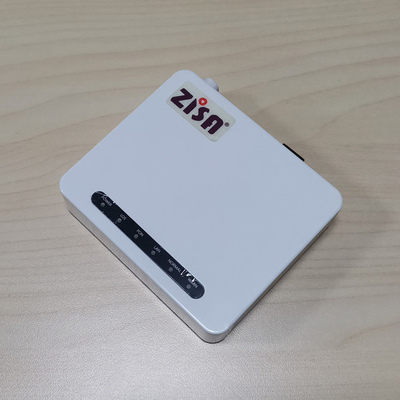

OP151 Fiber to Home 1GE EPON ONU EPON OLT Splitter FTTH Solution
Feature
Product Overview
Product Specifications
| Technical Item | Details |
| LED | 4 LED, For Status of POWER, LOS, PON, LAN |
| Push-Button | 2, for Function of Power on/off, Reset |
| Operating condition |
Temperature : 0℃～50℃ Humidity :10%～90%(non-condensing) |
| Storing Condition |
Temperature : -40℃～+60℃ Humidity :10%～90%(non-condensing) |
| Power supply | DC 12V/1A |
| Power Consumption | <3W |
| Net Weight | <0.2kg |
Panel lights and Introduction
| Pilot | Status | Description |
| POWER | On | The device is powered up. |
| Off | The device is powered down. | |
| LOS | Blink | The device doses not receive optical signals. |
| Off | The device has received optical signal. | |
| PON | On | The device has registered to the PON system. |
| Blink | The device is registering the PON system. | |
| Off | The device registration is incorrect. | |
| LAN | On | Port is connected properly (LINK). |
| Blink | Port is sending or/and receiving data (ACT). | |
| Off | Port connection exception or not connected. |
FAQ
Q1. ZISA product the quality of products.
A: As the top class total solution provider and productive service provider, we provide high quality of service to Tier1 Telco customer and Vendors. With the genius design and software customization expertise, we can leverage the best service to our customers. ZISA Product quality is same as Huawei and ZTE, and ZISA has complete product line.
Flexible , Smart and selective producing system, the top manufacture in vertical career choose our team, with decade of global market and professional experience.
Q2. ZISA after-sales service.
A:ZISA has complete software and hardware research and development. Provide reqiurment development, bug modify and 24h on-line support. For significant customers, ZISA can send technician to support.
Q3. Ways of cooperation with ZISA.
A :ZISA welcome integrator or agent to agent ZISA product. If agent has enough advantages in the market, ZISA appoint you ZISA sole agent.
Q4. About factory visit.
A :ZISA welcome significant customers to visit ZISA factory. Please make an appointment in two weeks.
Q5. About product pricing.
A :ZISA only publish sample price. The price of different agent and OEM customer is secret. ZISA gives specific price for significant projects and customers. Besides, ZISA only provide goods to agent in agent area.
