| Place of Origin: | CHINA |
|---|---|
| Brand Name: | ZISA |
| Certification: | CE |
| Model Number: | OP1604e |
| Minimum Order Quantity: | 1 |
| Price: | 560-586usd |
| Packaging Details: | 442mm×227mm× 44mm(W * D *H) 3.0KG |
| Delivery Time: | 1week |
| Payment Terms: | T/T |
| Supply Ability: | 1000pcs |
| Product Name: | 4GE Epon OLT | Warranty: | 12 Months |
|---|---|---|---|
| Dimension: | 442mm×227mm× 44mm(W * D *H) | Model: | OP1604e |
| Operating Temperature: | Temperature 0 To 45°C, Rel. Humidity 10–90% (non-condensing) | Management Mode: | Command-line Interface（CLI）, Console, Telnet And WEB Configuration |
| Storage Temperature: | Temperature -10 To 70°C, Rel. Humidity 10–90% (non-condensing) | Oem/odm: | Yes |
| High Light: | ftth olt fiberhome epon,ieee 802.3ah olt fiberhome epon,fiberhome olt epon 4pon |
||
FTTH PON OLT 10G Uplink GPON Fibre 10g Epon Cassette 4 Pon IEEE 802.3ah
Product Overview

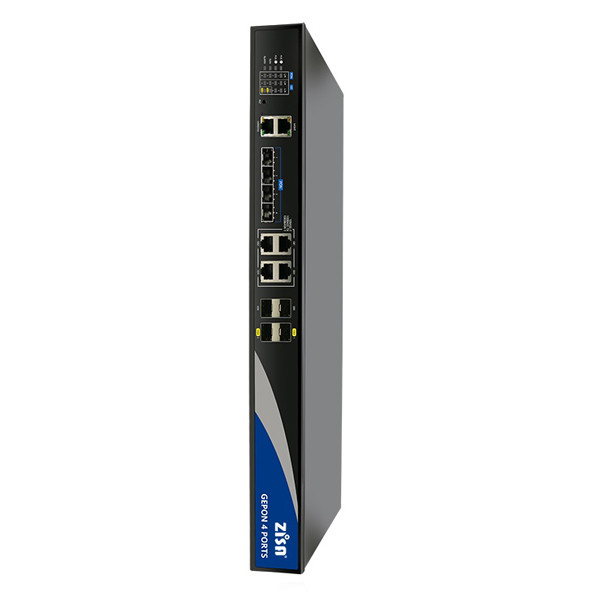

The OP1604E OLT provides 4 *Downsteam EPON ports, 4 * Uplink GE ETH ports, 2 * Uplink GE SFP ports and 2* Uplink SFP+ ports. Up to 1:64 Split ratio for up to 256 EPON users. The 1U pizzabox design is for easy installation, Maintenance and Space saving. OP1604E is suitable for Broadcast three in one, video surveillance network, enterprise LAN, Internet of Things, etc.Provide perfect, intelligent, powerful, advanced and professional solutions for FTTH/FTTB projects.
Product Specifications
| Network interface | |
| EPON interface | 4*EPON (1.25/1.25 Gbps) |
| Uplink Optical Interface | 2* GE SFP + 2*10GE SFP+ |
| Uplink Ethernet Interface | 4* GERJ45 |
| PON interface | |
| EPON | IEEE 802.3ah EPON |
| Local Management interface | |
| Console | RJ45EIA/TIA-232 Console management port |
| MGMT | 1000BASE-T out-band management port |
| Performance | |
| Switching Capacity | 64Gbps |
| Package transmit rate(IPv4/IPv6) | 125Mpps |
| Split ratio | 1: 64 |
| Maximum ONU quantity | 256 ONT |
Key Feature Support on OP1604E
| Ethernet switching (L2) features | ||
VLAN | 4K VLANentries | |
| Port-based QinQ and Selective QinQ (StackVLAN) | ||
| Port-based/MAC-based/IP subnet-based VLA | ||
Spanning tree | IEEE 802.1x STP/RSTP/MSTP | |
| ONU remote loop detection | ||
MAC | MAC Black Hole | |
| Port MAC limit | ||
| 8K MAC address | ||
Port | Bi-direction bandwidth control | |
| Port mirroring and traffic mirroring | ||
| Security features | ||
User security
| Anti-ARP-spoofing deceive defend | |
| Anti-ARP-flooding flooding attack automatic control | ||
| IP,MAC,port and VLAN binding | ||
| Port isolation | ||
Device security
| Defend DOS attack | |
| Security IP login through Telnet | ||
| Hierarchical management and password protection of users | ||
| TACACS+ | ||
Network security
| IP address,VLAN ID,MAC address and port manual binding | |
| Port broadcast /multibroadcast restrain | ||
| Base on source / destination MAC address,VLAN,802.1p,ToS,DiffServ,source/ destination IP(IPv4/IPv6) address,TCP/UDP port numberprotocol type of IP package flow classify and flow defined regulation management,support package header 80 byte depth L2-L7 ACLflow filtrate | ||
| Dynamic ARP table-based binding | ||
| DHCP Option82 and PPPoE+ upload user’s physical location | ||
Network management
| Command-line interface(CLI), Console, Telnet and WEB configuration | |
| RMON (Remote Monitoring)1/2/3/9 groups of MIB | ||
| System configuration with SNMPv1/v2/v3 | ||
| NTP(Network Time Protocol) | ||
| NMS2000 network management | ||
Ordering Information
| Model | Product Description |
| OP1604E | 4*EPON, 4*GE RJ45 port, 2* GE SFP + 2*10GE SFP+,Single Power Supply |
FAQ
Q1. ZISA product the quality of products.
A: As the top class total solution provider and productive service provider, we provide high quality of service to Tier1 Telco customer and Vendors. With the genius design and software customization expertise, we can leverage the best service to our customers. ZISA Product quality is same as Huawei and ZTE, and ZISA has complete product line.
Flexible , Smart and selective producing system, the top manufacture in vertical career choose our team, with decade of global market and professional experience.
Q2. ZISA after-sales service.
A:ZISA has complete software and hardware research and development. Provide reqiurment development, bug modify and 24h on-line support. For significant customers, ZISA can send technician to support.
Q3. Ways of cooperation with ZISA.
A :ZISA welcome integrator or agent to agent ZISA product. If agent has enough advantages in the market, ZISA appoint you ZISA sole agent.
Q4. About factory visit.
A :ZISA welcome significant customers to visit ZISA factory. Please make an appointment in two weeks.
Q5. About product pricing.
A :ZISA only publish sample price. The price of different agent and OEM customer is secret. ZISA gives specific price for significant projects and customers. Besides, ZISA only provide goods to agent in agent area.
