|Product Name:||IP ETH ADLE||Type:||Fiber To Home ADLE|
|Port:||Gpon/epon/ge Sfp Port ADLE PORT||Warranty:||1 YEAR|
|Operating Temperature:||-40℃ To 65℃; Startup At -25℃||Management:||Telnet And CLI|
ADLE ADSL2+ DSLAM,
ADSL2+ DSLAM SmartAx,
ADSL Digital Subscriber Line Access Multiplexer

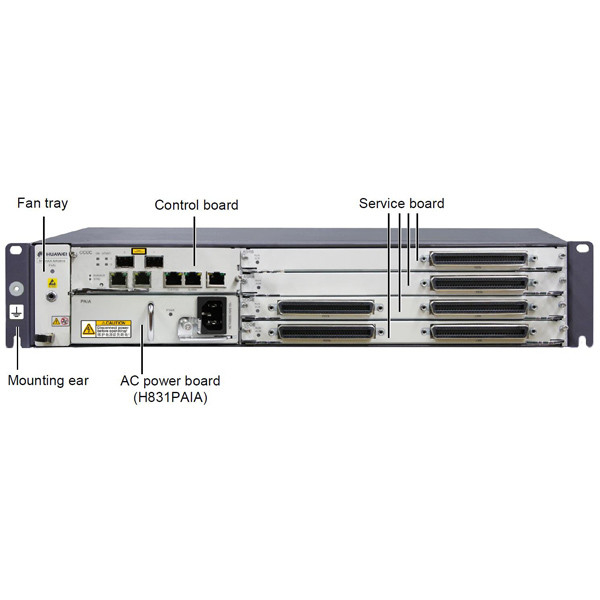

ADLE ADSL Digital Subscriber Line Access Multiplexer IP DSLAM SmartAx MA5616
|Operating temperature||-40℃ to 65℃; startup at -25℃|
|Humidity||5% to 95% (non-condensing)|
|Heat dissipation mode||Providing fans for heat dissipation. The rotating speed can be automatically adjusted.|
|Power supply||AC: 220 V/110 V
DC: -48 V
|Backup power||Support for 48-V backup power Support for lead-acid batteries and LiFePO4 batteries|
|Features||CCUB control board|
|Dimensions (H×W×D)||88.1mm × 442mm × 245mm|
|Network-side port||The MA5616 supports the following configurations:
• 1 × GPON + 1 × GE
• 2 × GE
|Voice||SIP and H.248|
|ISDN BRA port|
|POTS short-loop design|
|ADSL2+||Compliance with ITU-T G992.1 to G992.5, and T1.413|
|ADSL2 + bonding (2-wire, 4-wire, 6-wire, or 8-wire)|
|8a, 8b, 8c, 8d, 12a, 12b, 17a, and 30a profiles|
|2-wire VDSL2 bonding|
The MA5616 provides broadband, voice, and video services through ADSL2+/ VDSL2/FE boards, voices service through POTS boards, leased line services through SHDSL or P2P boards.
